EXTERNAL EQUIPMENT SETUP
■ To avoid damaging any equipment, never plug in any power cord until you have finished connecting
all equipment.
■ This section on mainly uses diagrams for the 32LD3
***
models.
■ Image shown may differ from your TV.
This TV can receive Digital RF/Cable signals without an external digital set-top box. However, if you do
receive Digital signals from a digital set-top box or other digital external device, refer to the diagram as
shown below.
► HDMI Audio Supported format : Dolby Digital, PCM
DTS Audio format is not supported.

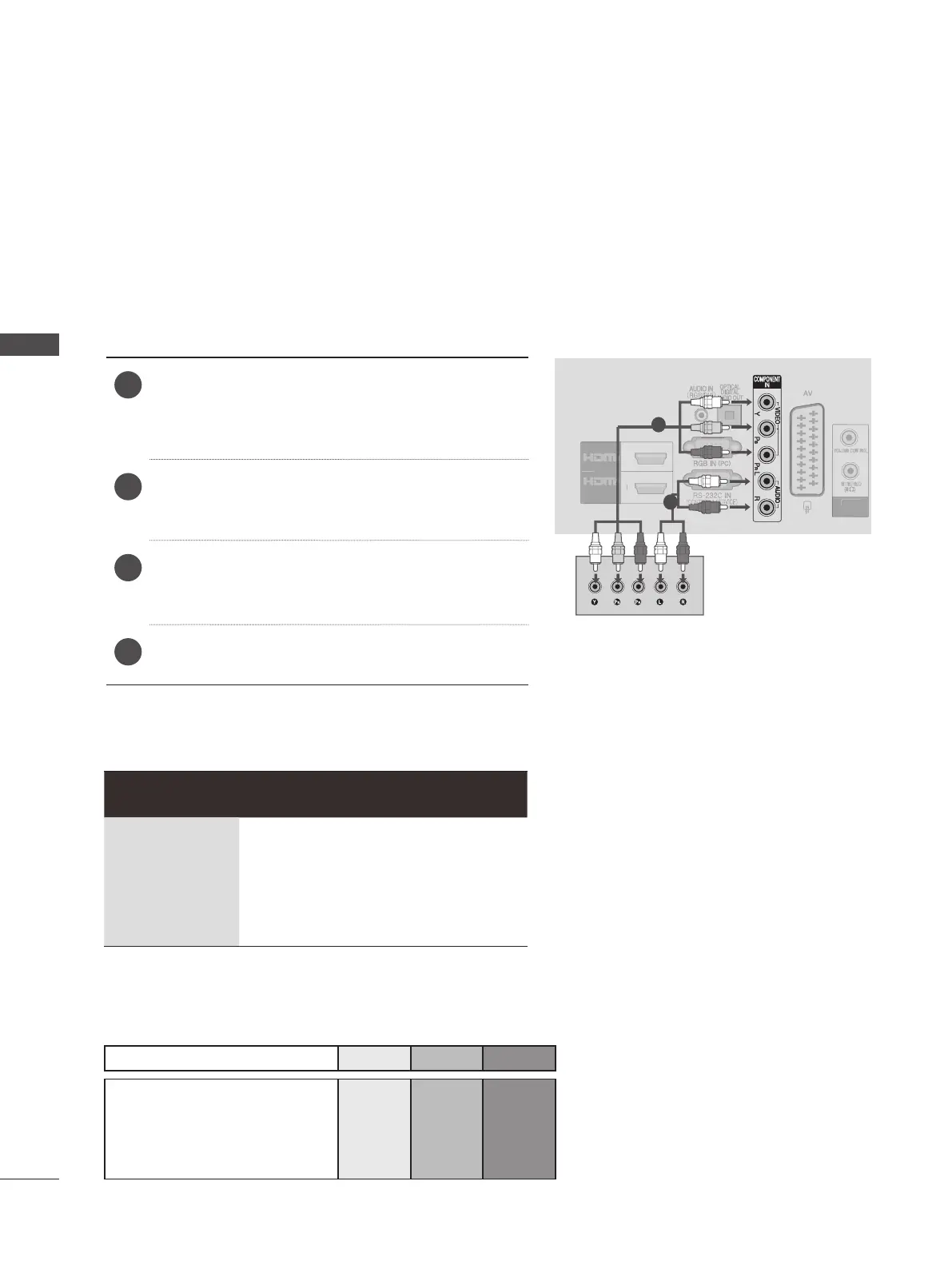

To achieve better picture quality, connect a DVD player to the component input ports as shown below.
Signal Component HDMI
480i/576i O X
480p/576p O O
720p/1080i O O
1080p
O
(50 Hz / 60 Hz only)
O
(24 Hz / 30 Hz /
50 Hz / 60 Hz)
Component ports on the TV Y PB PR
Video output ports
on DVD player
Y P
B PR
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
1
Connect the video outputs
(
Y, PB, PR
)
of the
external equipment (digital set-top box, DVD,
etc.) to the jacks on
the TV.
2
Connect the audio output of the external equip-
ment (digital set-top box, DVD, etc.) to the
jacks on the TV.
3
Turn on the external equipment.
(
Refer to the external equipment's manual for
operating instructions.)
4
Select the input source using the
button on the remote control.
RGB
PEAKER
DVI IN
