PREPARATION
OPTICAL DIGITAL AUDIO OUT
Digital optical audio output for
use with amps and home theater
systems.
Note: In standby mode, this port
doesn’t work.
AUDIO OUT
For use with external speakers.
COMPONENT IN
Analog Connection.
Supports HD.
Uses a red, green, and blue cable for
video & red and white for audio.
DVI AUDIO IN
Digital Connection.
USB INPUT
Used for viewing photos and listening
to MP3s.
HDMI IN 3
Digital Connection.
Supports HD video and Digital audio.
Doesn’t support 480i.
* HDMI 3: For 47LD500
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate
the TV on DC power.
5 6
7 8
9 10
11

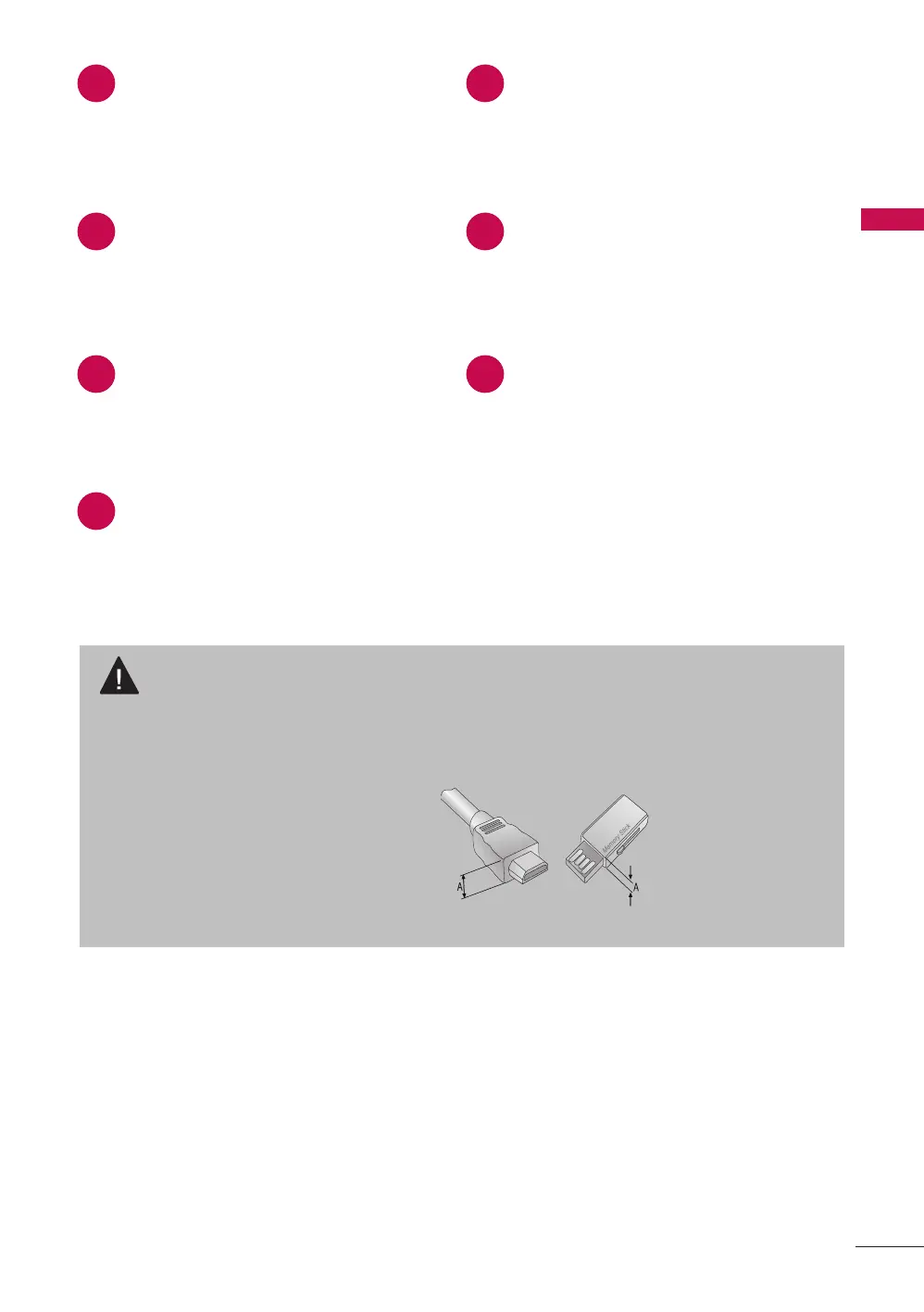

CAUTION
For HDMI IN 3 and USB INPUT
a For an optimal connection, HDMI cables and USB devices should have bezels
less than 10 mm (0.39 inches) thick.
*A is smaller or equals to 10 mm (0.39 inches)
Precautions when using the USB
device
a The recommended capacity is 1
TB or less for a USB external hard
disk and 32 GB or less for USB
memory.
