EXTERNAL EQUIPMENT SETUP
ANTENNA
/
C
ABLE IN
VIDEO
A
V IN
A
A
R
G
B I
N
C
OMPONENT IN
P
R
P
B
Y
O
PTI
C
A
L
DIGIT
AL
T
T
A
U
DI
O
OUT
A
UDI
O
A
U
DI
O
A
U
DI
O
OUT
A
U
DI
O
RG
B
(
P
C)
1
2
V
IDE
O
/ D
VI IN
D
D
D
VI A
D
D
U
DI
O
VIDEO
AV IN
AUDIO
L R
VIDEO
AUDIO
1

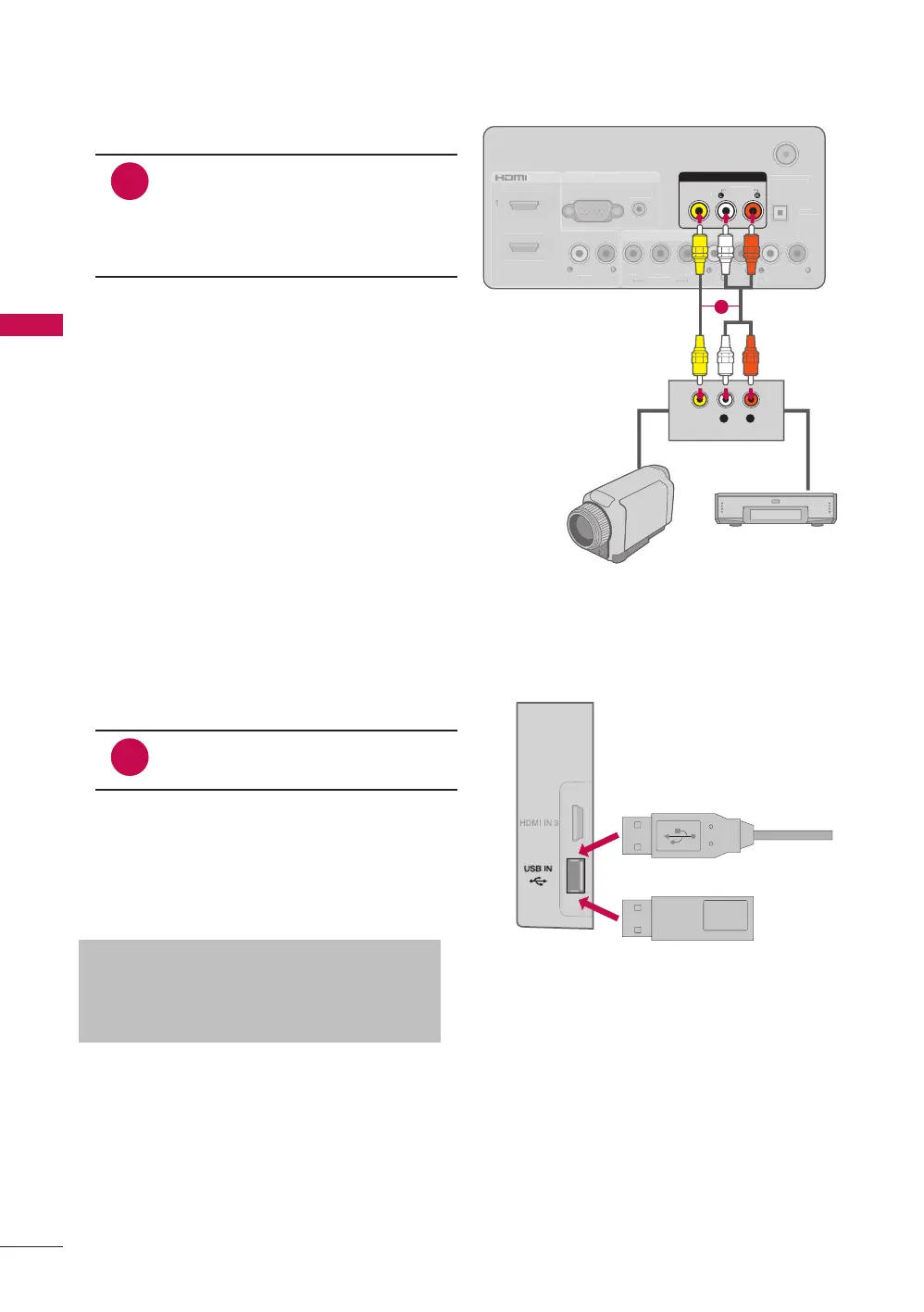

1. How to connect
1
Connect the AUDIO/VIDEO
jacks between TV and external
equipment. Match the jack
colors. (Video = yellow, Audio
Left = white, and Audio Right =
red)
2. How to use
r Select the AV input source on the TV
using the INPUT button on the remote
control.
r Operate the corresponding external
equipment.
Other A/V Source Setup
Camcorder
Video Game Set
Memory Key
1. How to connect
1
Connect the USB device to the
USB IN jack on the side of TV.
2. How to use
r After connecting the USB IN jack, you
use the USB function.
USB Connection
Precautions when using the USB device
a The recommended capacity is 1 TB or
less for a USB external hard disk and
32 GB or less for USB memory.
