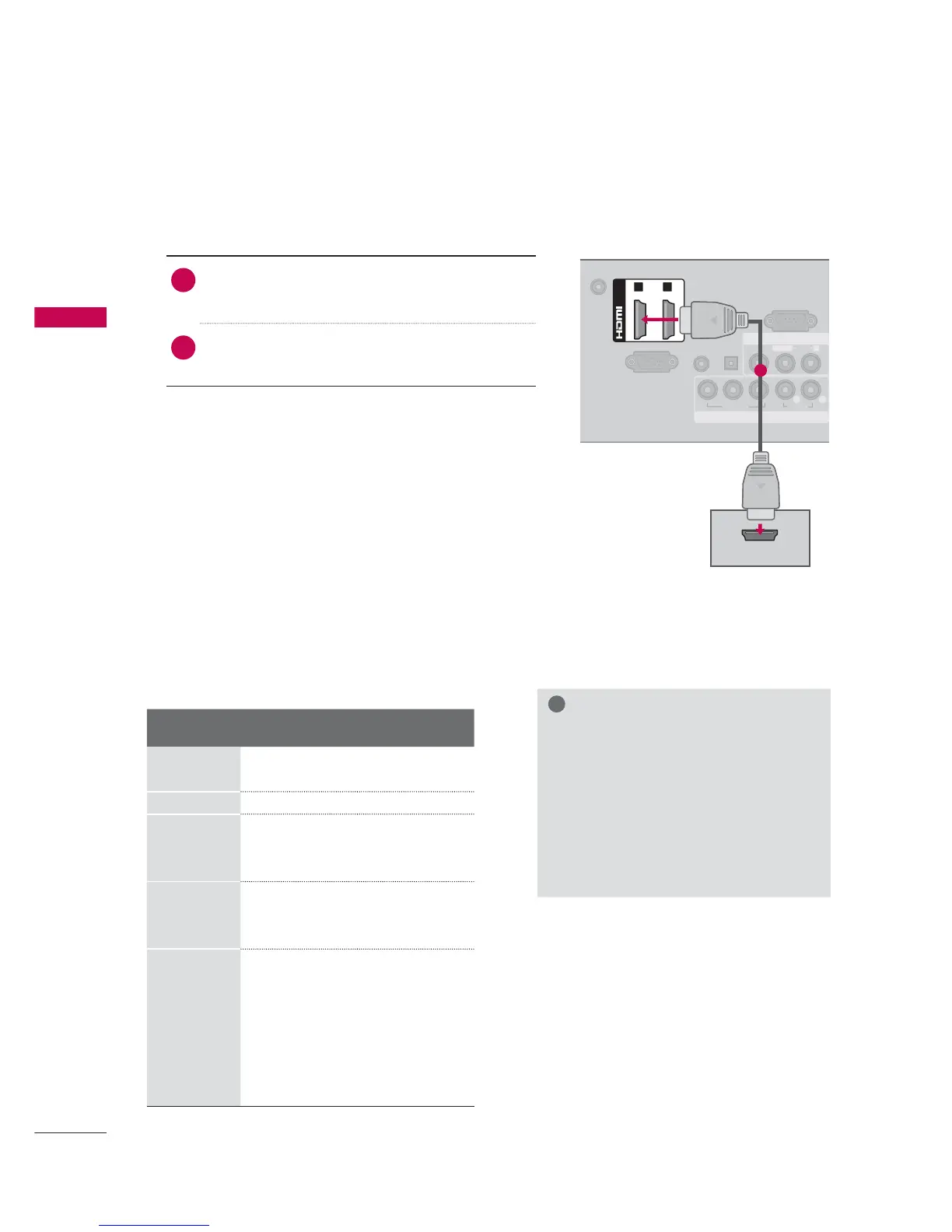

HDMI Connection
1. How to connect
1
Connect the digital set-top box to HDMI/DVI IN
1, 2, or 3 jack on the TV.
2
No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
ᯫ
Select the HDMI1, HDMI2, HDMI3, or HDMI4, input
source on the TV using the
INPUT
button on the
remote control.
!
NOTE
► If an HDMI cable doesn’t support High
Speed HDMI, it can cause flickers or
no screen display. In this case use the
latest cables that support High Speed
HDMI.
►HDMI Audio Supported Format: AC3
(32kHz, 44.1kHz, 48kHz), Linear PCM
(32kHz, 44.1kHz, 48kHz, 96kHz,
192kHz)
HDMI-DTV
Resolution
Horizontal
Frequency
(
kHz
)
Vertical
Frequency
(
Hz
)
720x480p
31.469 59.94
31.5 60
720x576p 31.25 50
1280x720p
37.500 50
44.96 59.94
45 60
1920x1080i
33.72 59.94
33.75 60
28.125 50.00
1920x1080p
26.97 23.97
27.00 24.00
33.716 29.976
33.75 30.00
56.250 50
67.43 59.94
67.5 60
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
AV IN
RS-232C IN
(
CONTROL&SERVICE)
VIDEO
AUDIO
L(MONO)
R
VIDEO
AUDIO
YP
B
P
R
L R
(DVI)
/DVI IN
1 2
HDMI OUTPUT
1
