LG 32LD460-MA - External Equipment Setup; HD Receiver Setup

33
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
ᯫ
To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
ᯫ
I mage shown may differ from your TV.
Y, C
B/PB, CR/PR
If you do receive digital signals from a digital set-top box or other digital external device.
Resolution
Horizontal
Frequency
(
kHz
)
Vertical
Frequency
(
Hz
)
720x480i
15.63 59.94
15.73 60.00
720x480p
31.47 59.94
31.50 60.00
720x576i 15.625 50.00
720x576p 31.25 50.00
1280x720p
37.50 50.00
44.96 59.94
45.00 60.00
1920x1080i
28.125 50.00
33.75 60.00
33.72 59.94
1920x1080p
56.250 50
67.43 59.94
67.5 60
EXTERNAL EQUIPMENT SETUP
B
IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
AV IN
RS-232C IN
( CONTROL&SERVICE)
2
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
YP B P R
L R
COMPONENT IN
AN
T
Y L RPB PR
1
2

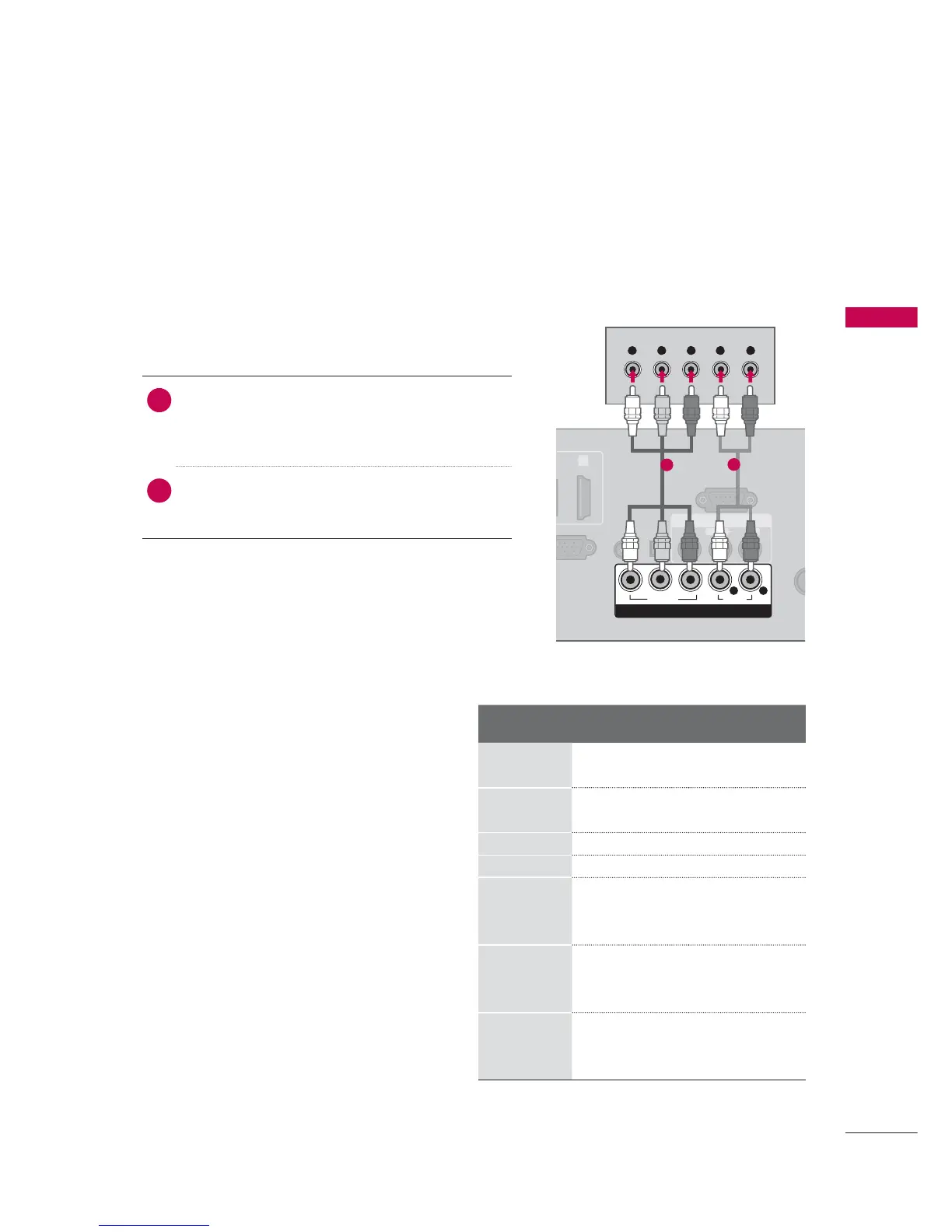

1. How to connect
1
Connect the video outputs
(
Y, PB, PR
)
of the
digital set-top box to the COMPONENT IN
VIDEO jacks on the TV. Match the jack colors (Y
= green, P
B = blue, and PR = red).
2
Connect the audio output of the digital set-top
box to the COMPONENT IN AUDIO jacks on
the TV.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box operation.
)
ᯫ
Select the Component input source on the TV
using the
INPUT button on the remote control.
Component Connection
