37

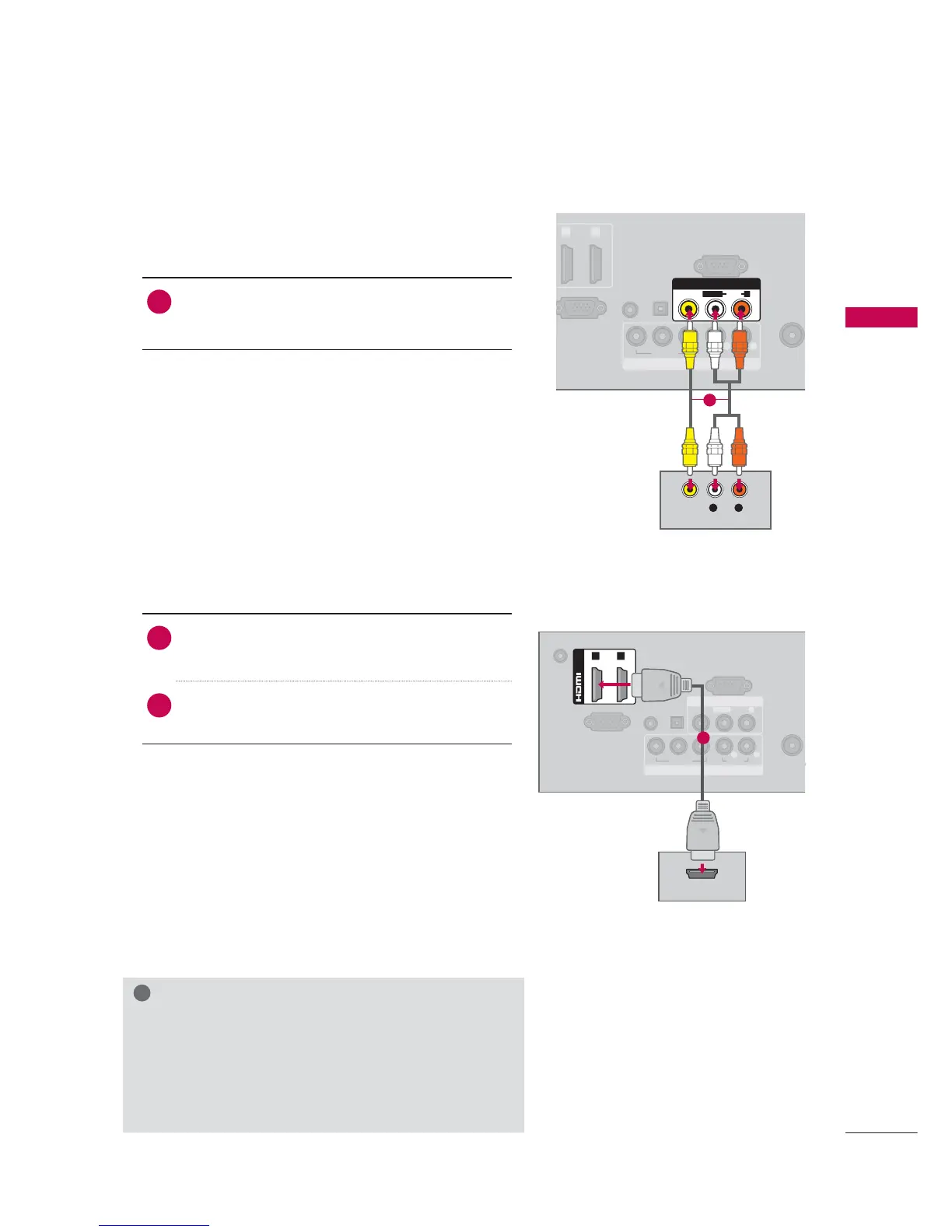

EXTERNAL EQUIPMENT SETUP
Composite (RCA) Connection
1. How to connect
1
Connect the AUDIO/VIDEO jacks between TV
and DVD. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
ᯫ
Turn on the DVD player, insert a DVD.
ᯫ
Select the AV1 or AV2 input source on the TV
using the
INPUT button on the remote control.
ᯫ
Refer to the DVD player's manual for operating
instructions.
RGB IN (PC)
AUDIO IN
RGB/DVI
(DVI)
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
RS-232C IN
( CONTROL&SERVICE)
1 2
VIDEO
AUDIO
YP B P R
L R
AV IN
VIDEO AUDIO
L(MONO)
R
L R
VIDEO
AUDIO
ANTEN
N
IN
DC-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
OPTICAL
DIGITAL
AUDIO OUT
COMPONENT IN
AV IN
RS-232C IN
( CONTROL&SERVICE)
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
YP B P R
L R
(DVI)
/DVI IN
1 2
HDMI OUTPUT
ANTENN
A
IN
1
1
HDMI Connection
1. How to connect
1
Connect the HDMI output of the DVD to the
HDMI/DVI IN 1, 2, or 3 jack on the TV.
2
No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ᯫ
Select the HDMI1, HDMI2, HDMI3, or HDMI4 input
source on the TV using the
INPUT button on the
remote control.
ᯫ
Refer to the DVD player's manual for operating
instructions.
!
NOTE
► If an HDMI cable doesn’t support High Speed HDMI, it
can cause flickers or no screen display. In this case use
the latest cables that support High Speed HDMI.
►HDMI Audio Supported Format: AC3 (32kHz, 44.1kHz,
48kHz), Linear PCM (32kHz, 44.1kHz, 48kHz, 96kHz,
192kHz)
