DVI to HDMI Connection

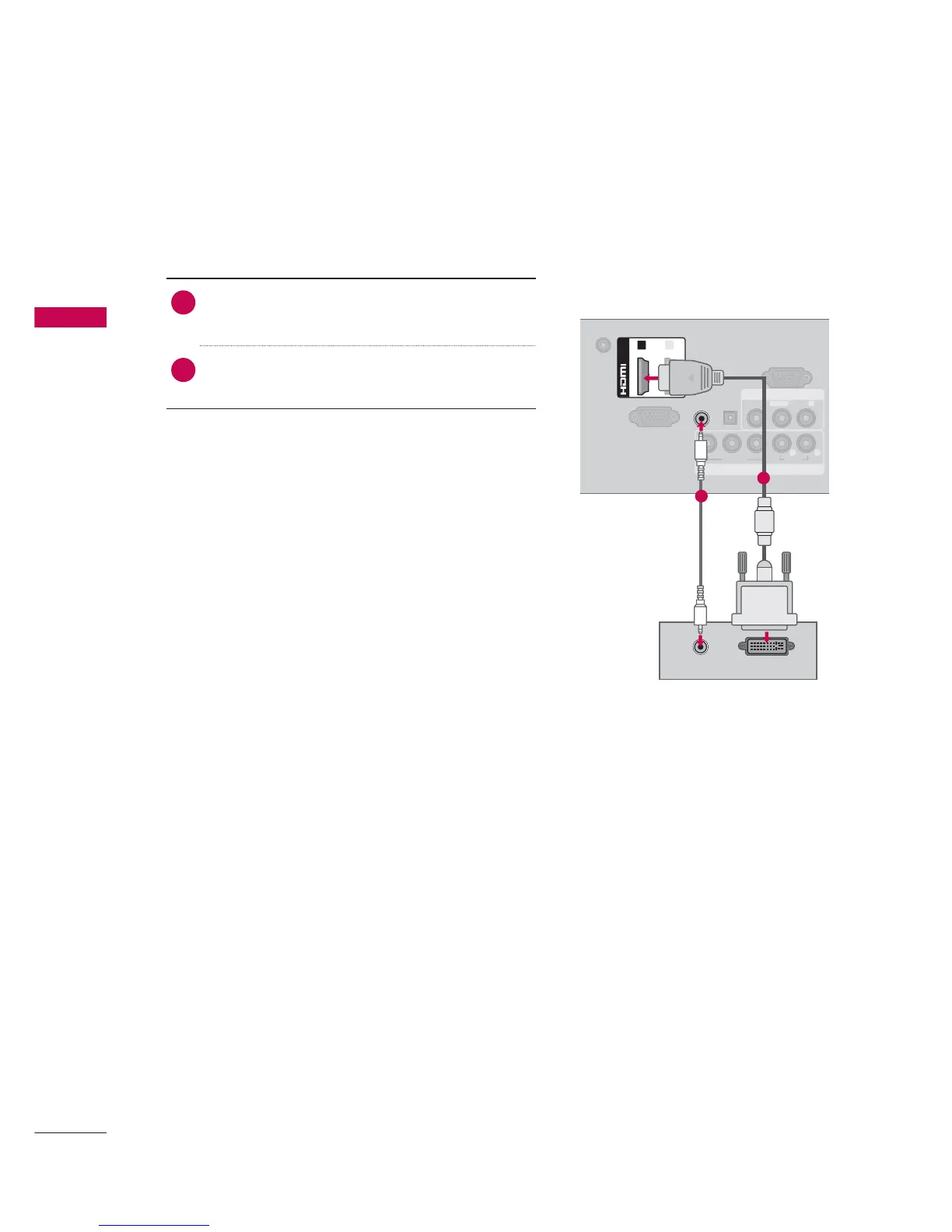

1. How to connect
1
Connect the DVI output of the PC to the HDMI/
DVI IN 1 jack on the TV.
2
Connect the PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
ᯫ
Turn on the PC and the TV.
ᯫ
Select the HDMI1 input source on the TV using the
INPUT button on the remote control.
