LG 32LN540B - Adjustment Test Pattern - ADJ Key

Standard Repair Process Detail Technical Manual
Adjustment Test pattern - ADJ Key
A. Video error_Color error

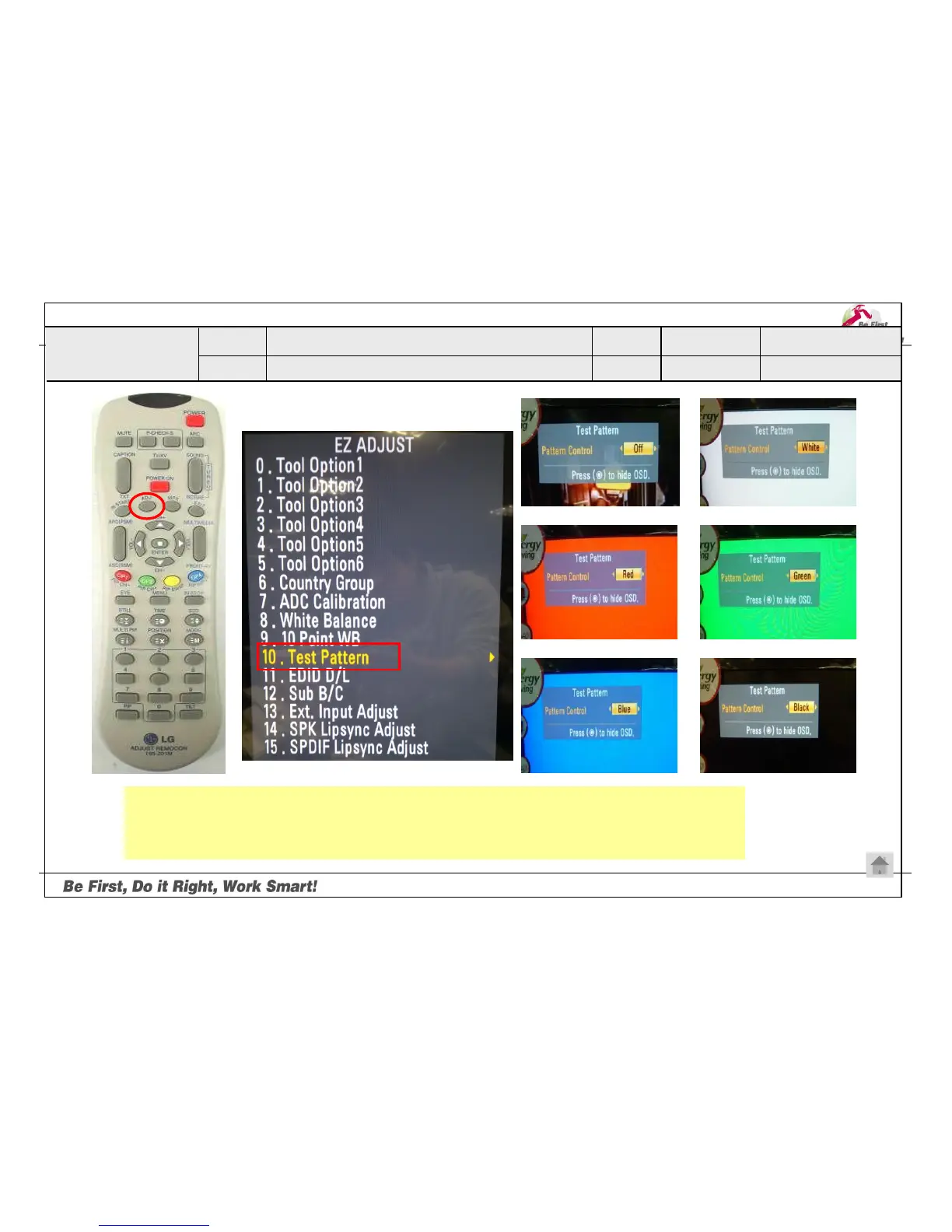

You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
