LG 32LT75/76 - Exploded View

- 28 -
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
300
200
700
591
701
592
590
120
530
210
580
522
520
521
400
600
800
581
900
150

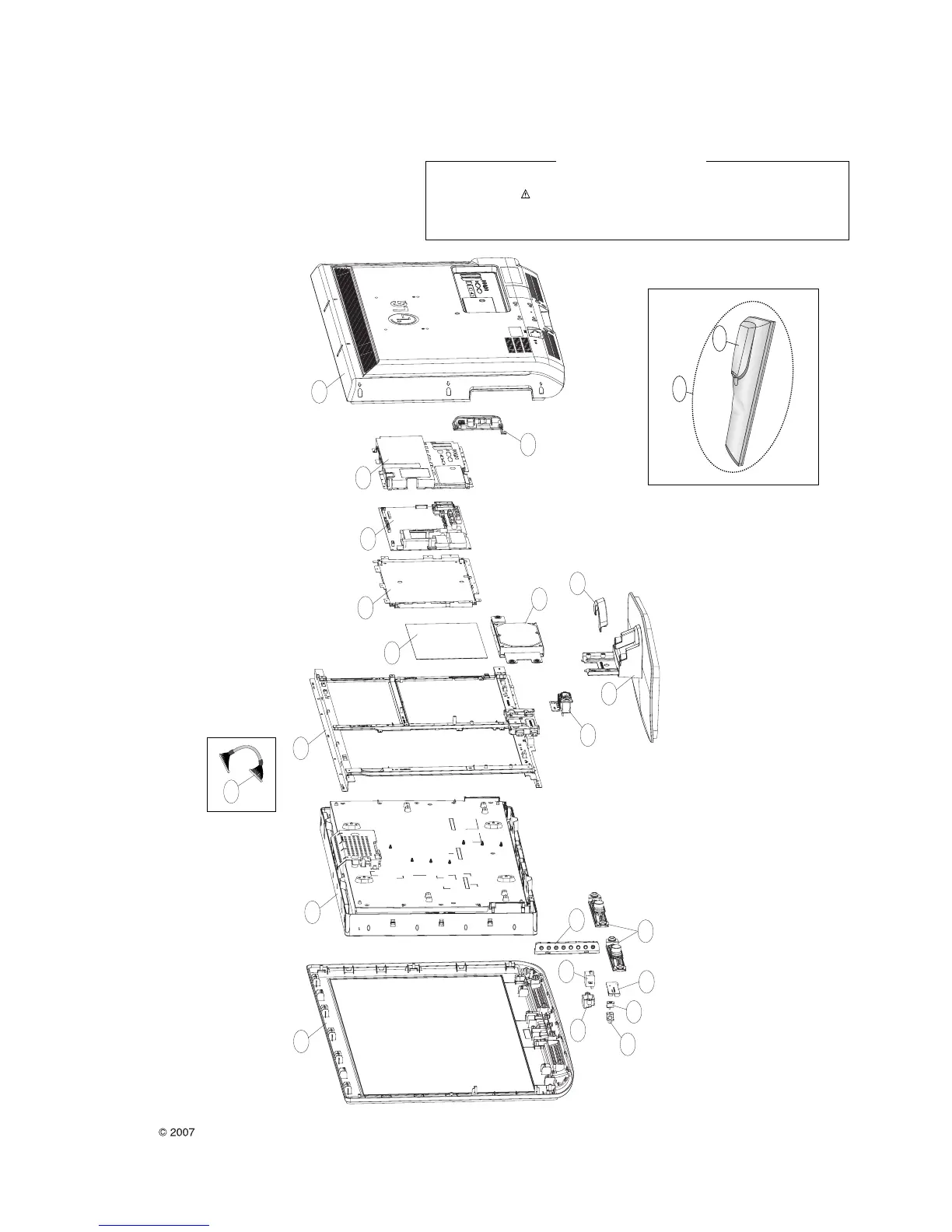

EXPLODED VIEW
LV1
A21
A2
