MAKING CONNECTIONS

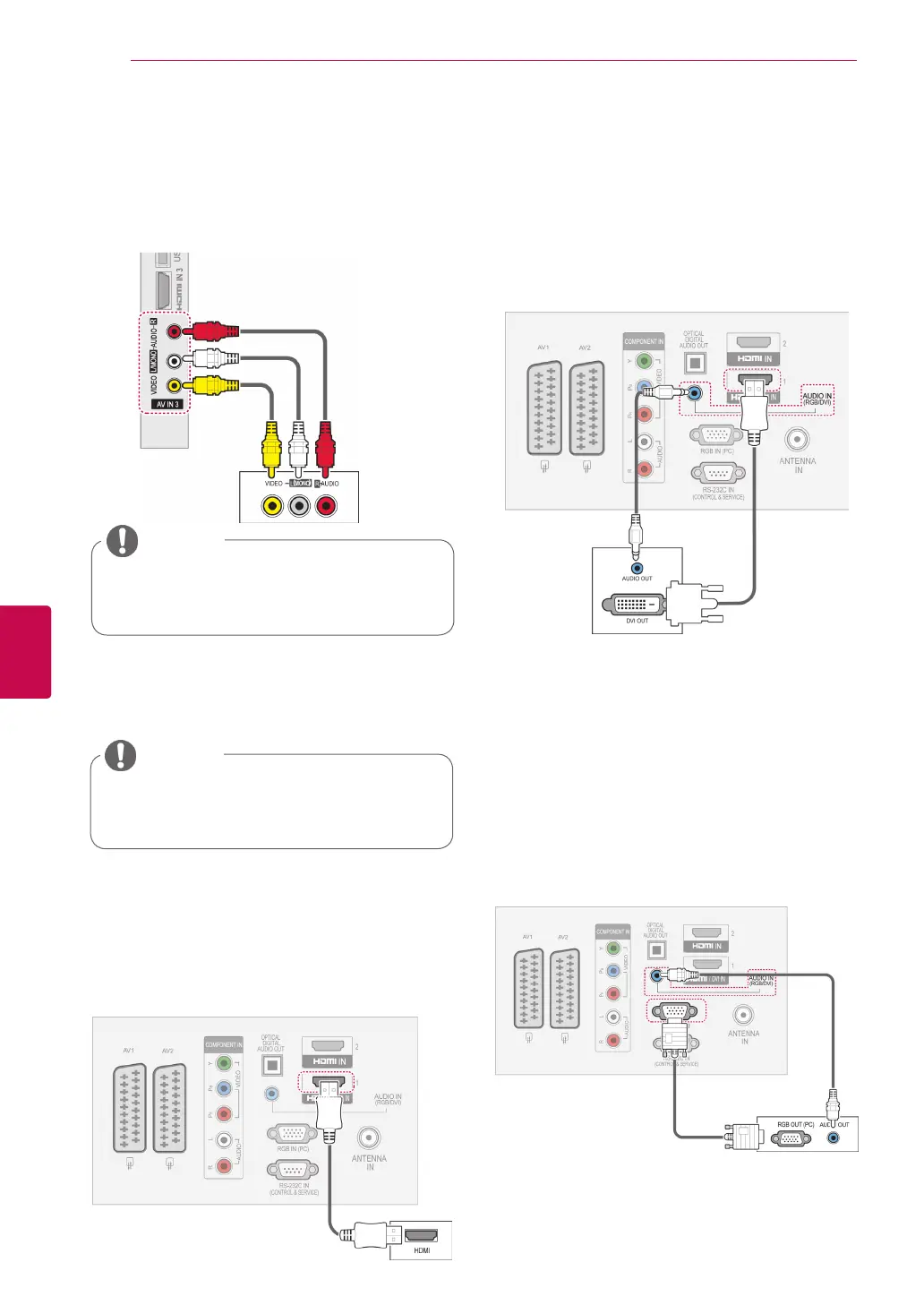

Composite connection
Transmits the analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown in the following illustration.
If you have a mono VCR, connect the
audio cable from the VCR to the AUDIO L/
MONO jack of the TV.
NOTE
RGB Connection
Transmits the analogue video signal from your
PC to the TV. Connect the PC and the TV with the
supplied D-sub 15 pin signal cable as shown in the
following illustrations. To transmit an audio signal,
connect an audio cable.
DVI to HDMI connection
Transmits the digital video signal from your PC to
the TV. Connect the PC and the TV with the DVI-
HDMI cable as shown in the following illustration.
To transmit an audio signal, connect an audio
cable.
Connecting to a PC
It is recommended to use the TV set with
the HDMI connection for the best image
quality.
NOTE
HDMI connection
Transmits the digital video and audio signals from
your PC to the TV. Connect the PC and the TVwith
the HDMI cable as shown in the following illustra-
tions.
