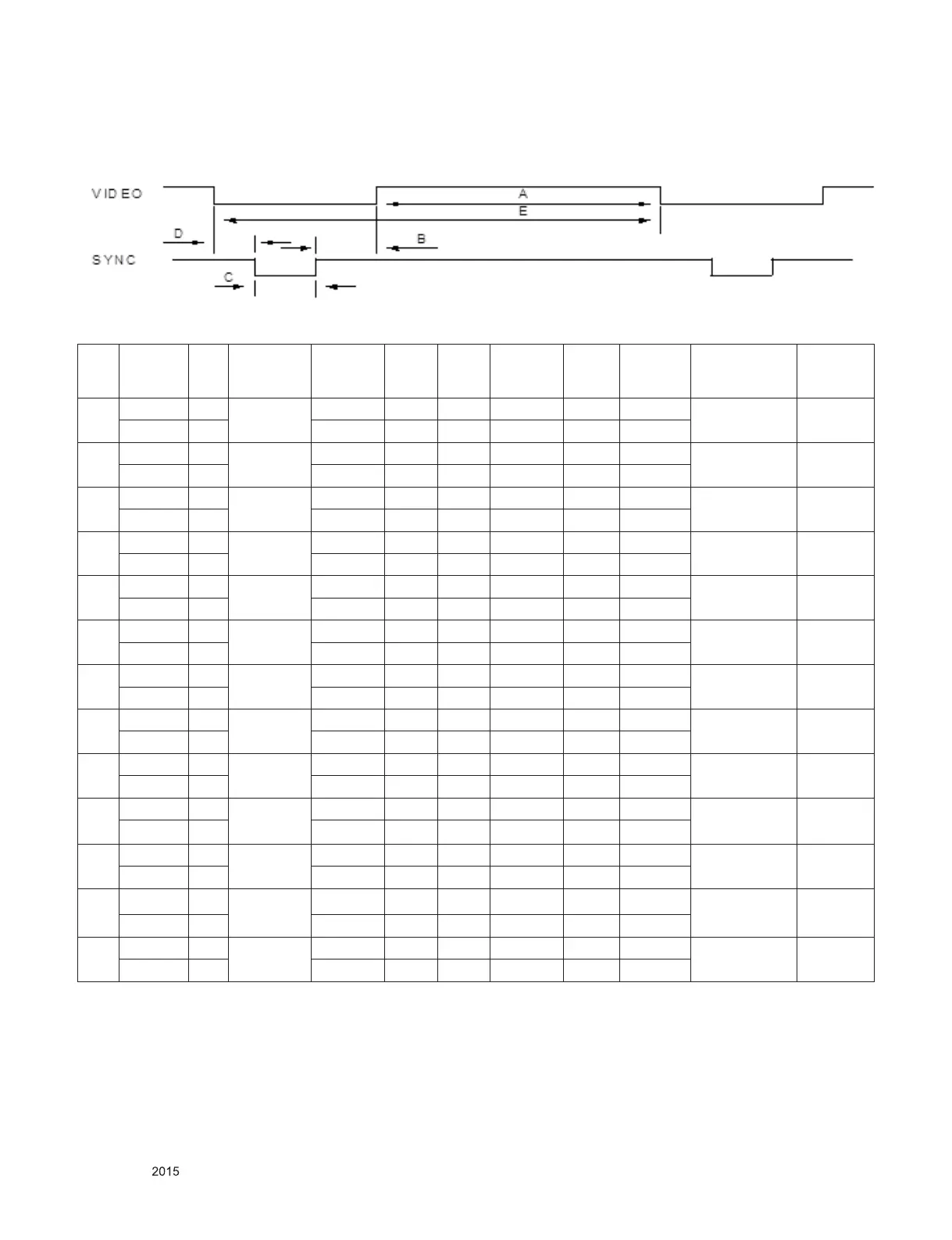

3. Signal Timing (Resolution)
3.1. Signal (Video & Sync)
3.2. H/V Timing
No. Section Pol. Dot Clock
[MHz]
Frequen-
cy
[kHz]/[Hz]
Total
Cycle
(E)
Dis-
play
(A)
Front
Porch(B)
Sync.
(D)
Back
Porch(F)
Resolution Input
source
1 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480 HDMI
V(Lines) - 59.94 525 480 10 2 33 DP
2 H(Pixels) + 40 37.879 1056 800 40 128 88 800 x 600 HDMI
V(Lines) + 60.317 628 600 1 4 23 DP
3 H(Pixels) - 65 48.363 1344 1024 24 136 160 1024 x 768 HDMI
V(Lines) - 60 806 768 3 6 29 DP
4 H(Pixels) + 79.99 54.347 1472 1152 32 96 192 1152 x 864 HDMI
V(Lines) + 60.05 905 864 1 3 37 DP
5 H(Pixels) + 74.25 45 1650 1280 110 40 220 1280x720 HDMI
V(Lines) + 60 750 720 5 5 20 DP
6 H(Pixels) + 108 63.981 1688 1280 48 112 248 1280x1024 HDMI
V(Lines) + 60.02 1066 1024 1 3 38 DP
7 H(Pixels) + 108 60 1800 1600 24 80 96 1600 x 900 HDMI
V(Lines) + 60 1000 900 1 3 96 DP
8 H(Pixels) - 146.25 65.29 2240 1680 104 176 280 1680x1050 HDMI
V(Lines) + 59.954 1089 1050 3 6 30 DP
9 H(Pixels) + 148.5 67.5 2200 1920 88 44 148 1920x1080 HDMI
V(Lines) - 60 1125 1080 4 5 36 DP
10 H(Pixels) - 185.58 66.7 2784 2560 64 64 96 2560x1080 HDMI
V(Lines) + 60 1111 1080 3 10 18 DP
11 H(Pixels) + 157.75 43.82 3600 3440 48 32 80 3440x1440 HDMI
V(Lines) + 29.99 1461 1440 3 10 8 DP
12 H(Pixels) + 265.25 73.68 3600 3440 48 32 80 3440x1440 HDMI
V(Lines) + 49.99 1474 1440 3 10 21 DP
13 H(Pixels) + 319.75 88.82 3600 3440 48 32 80 3440x1440 HDMI
V(Lines) + 59.97 1481 1440 3 10 28 DP
