7. RGB Input ( PC )

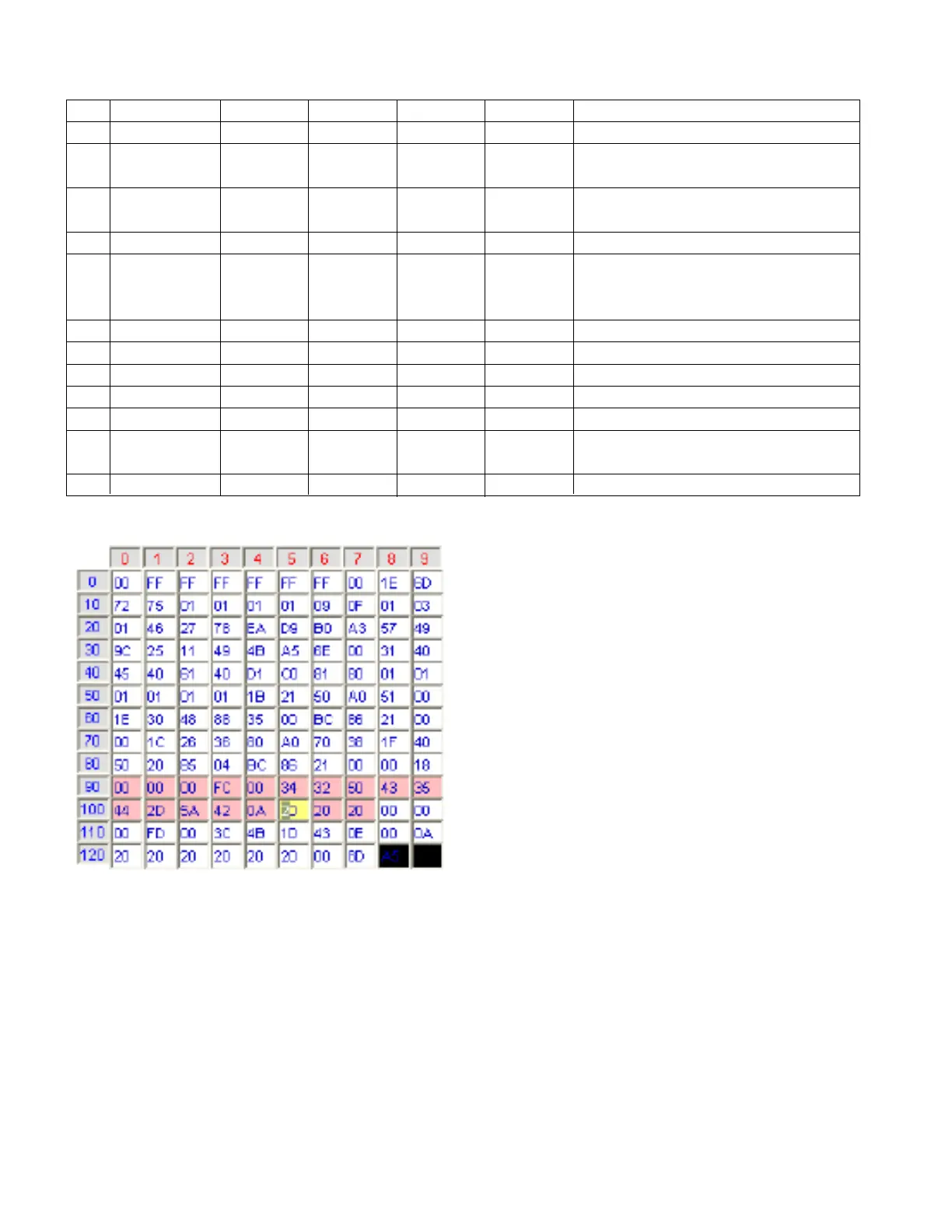

7-1. EDID Data (RGB-PC)
No Resolution H-freq(kHz) V-freq.(Hz)
Pixel clock(MHz)
Proposed Remarks
1. 720*400 31.468 70.08 28.321
2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60Hz, 852*480 60Hz
37.684 75.00 31.50 => 640*480 60Hz Display
3. 800*600 37.879 60.31 40.00 VESA
46.875 75.00 49.50
4. 832*624 49.725 74.55 57.283 Macintosh
5. 1024*768 48.363 60.00 65.00 VESA(XGA)
56.470 70.00 75.00
60.123 75.029 78.75
6. 1280*768 47.78 59.87 79.5 WXGA
7. 1360*768 47.72 59.8 84.75 WXGA
8. 1366*768 47.56 59.6 84.75 WXGA
9. 1280*1024 63.595 60.0 108.875 SXGA FHD Model only
10. 1400*1050 65.160 60.0 122.50 SXGA FHD Model only
11. 1600*1200 74.077 60.0 130.375 UXGA Reduced Blanking Timing, FHD Model only
Input 1920*1200 60Hz Ë 1600*1200 60Hz Display
12. 1920*1080 66.647 59.988 138.625 WUXGA Reduced Blanking Timing
