22 MAKING CONNECTIONS
Component Connection

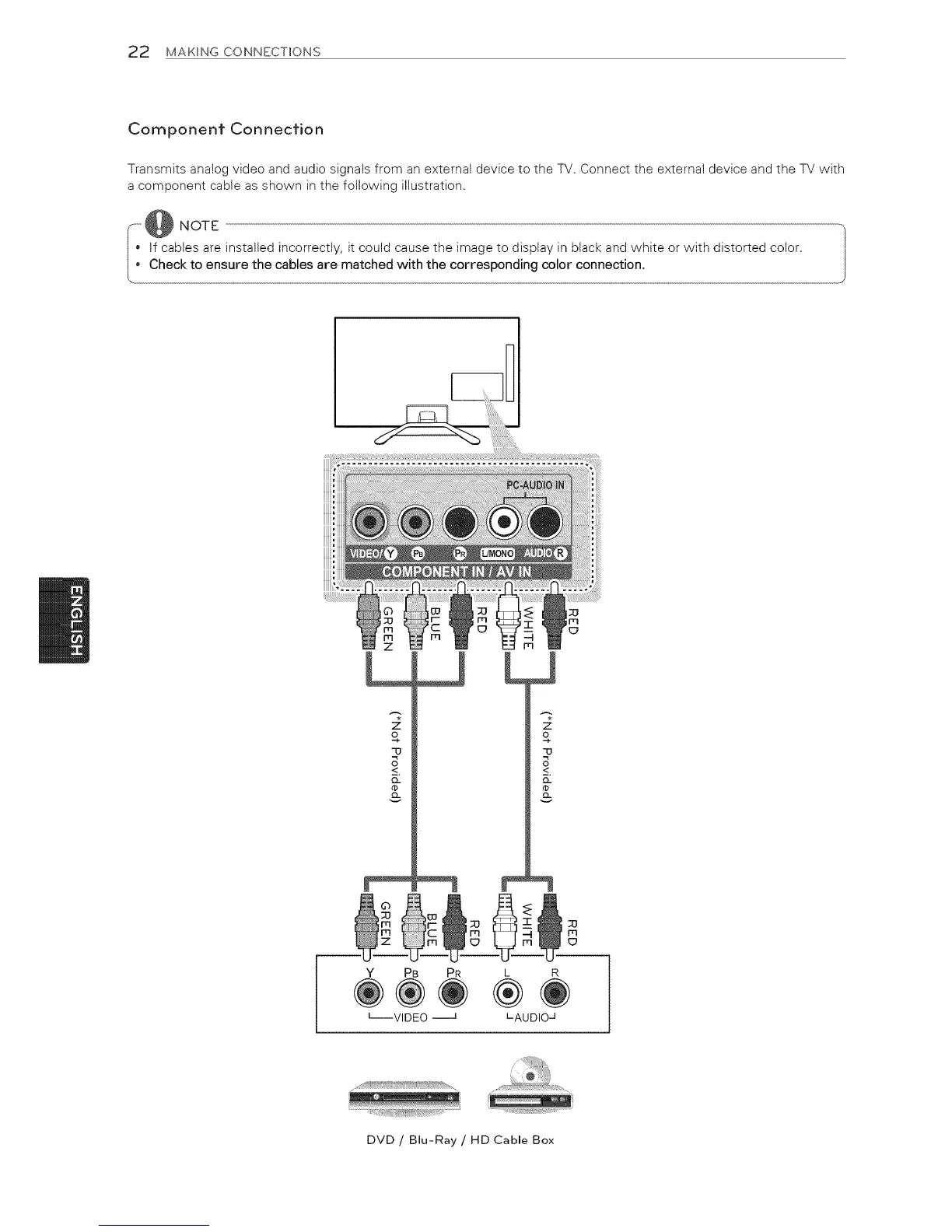

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
a component cable as shown in the following illustration.
.......@.O_E ]
If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
Check to ensure the cables are matched with the corresponding color connection.
L
Z
o
-0
Q_
&
J LJ
Z
o
"u
<s
&
Y PB PR L R
LVIDE 0 ---J LAUDIOJ
::13
rq
U
DVD / Blu-Ray / HD Cable Box
