MAKING CONNECTIONS 23

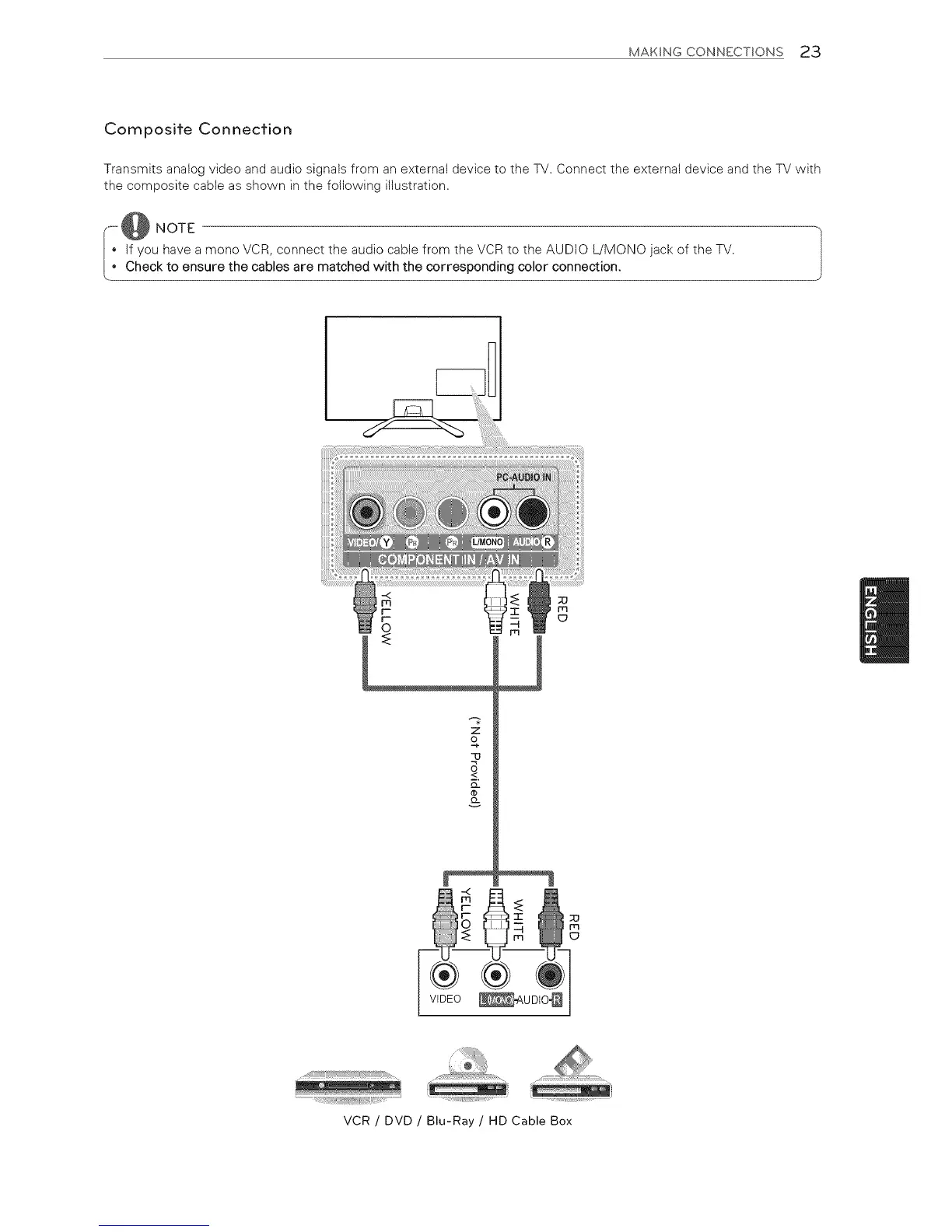

Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
the composite cable as shown in the following illustration.
- @ NOTE
• If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
Check to ensure the cables are matched with the corresponding color connection.
m
z
o
o_
m
[3
VIDEO U
VCR / DVD / Blu-Ray / HD Cable Box
