LG 42LX6500 Service Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
09/10/xx
MOTION_REMOCON
20 100
GP2_BCM_ATSC
+3.3V_NORMAL
R1701
100
M_REMOTE_RX
9:F3;9:G4
M_REMOTE_TX
9:F3;9:G4
R1702
100
L1700
BLM18PG121SN1D
120-ohm
R1705 2.7K
+3.3V_NORMAL
R1700
100
M_RFModule_RESET
9:F3;9:G4
DC
9:F3;9:G3
R1703
100
R1704
100
DD
9:F3;9:G3
R1706 2.7K R1707 2.7K
P1700
12507WR-08L
M_REMOTE
1
2
3
4
5
6
7
8
9

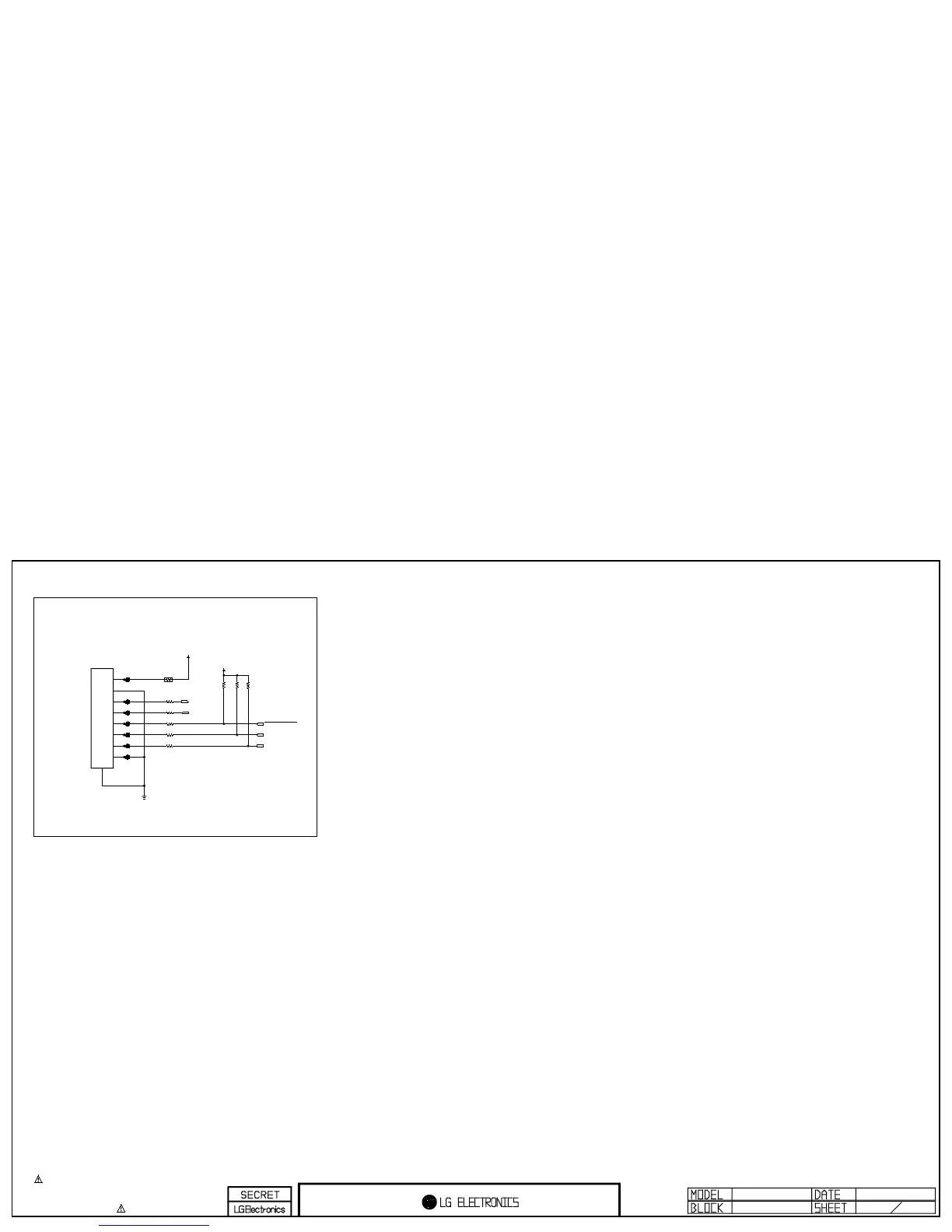

Motion Remocon Interface
Motion Remote controller
ALL M_REMOTE OPTION
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG 42LX6500 Specifications

General

Display diagonal	42 \
Audio system	Dolby Digital
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Power consumption (standby)	0.1 W
Power consumption (typical)	150 W
Annual energy consumption	156 kWh

Weight and Dimensions

Depth (with stand)	270 mm
Height (with stand)	692 mm
Weight (with stand)	19000 g
Depth (without stand)	29.3 mm
Width (without stand)	1016 mm
Height (without stand)	630 mm
Weight (without stand)	16700 g
