LG 42LX6500 Service Manual

- 9 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

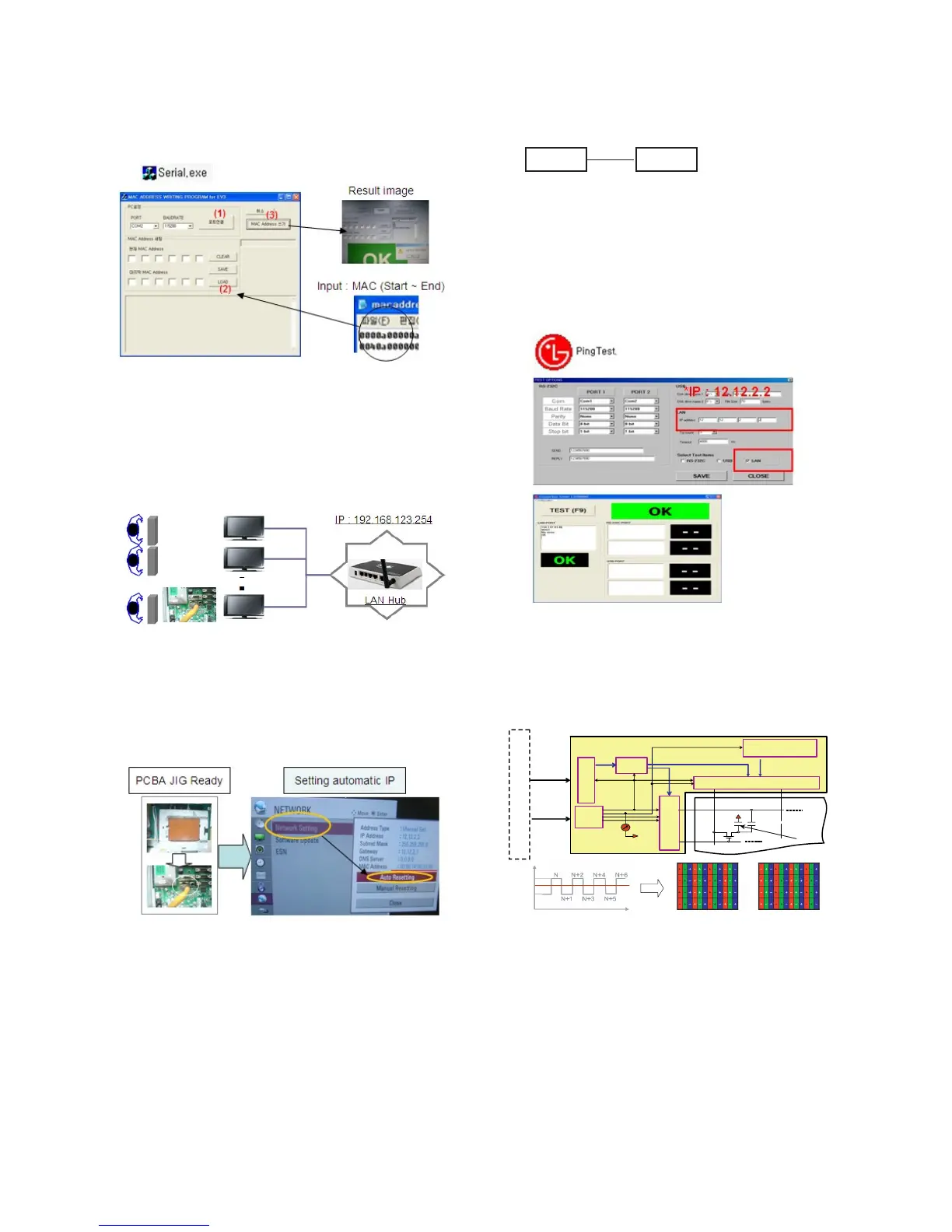

2) MAC Address Download
- Com 1,2,3,4 and 115200(Baud rate)
- Port connection button click(1)
- Load button click(2) for MAC Address write.
- Start MAC Address write button(3)
- Check the OK Or NG
3.3. LAN
(1) Equipment & Condition
A Each other connection to LAN Port of IP Hub and Jig
(2) LAN inspection solution
A LAN Port connection with PCB
A Network setting at MENU Mode of TV
A setting automatic IP
A Setting state confirmation
-> If automatic setting is finished, you confirm IP and
MAC Address.
3.4. LAN PORT INSPECTION(PING TEST)
Connect SET -> LAN port == PC -> LAN Port
(1) Equipment setting
1) Play the LAN Port Test PROGRAM.
2) Input IP set up for an inspection to Test
Program.
*IP Number : 12.12.2.2
(2) LAN PORT inspection (PING TEST)
1) Play the LAN Port Test Program.
2) Connect each other LAN Port Jack.
3) Play Test (F9) button and confirm OK Message.
4) Remove LAN CABLE
3.5. V-COM Adjust(Only LGD(M+S) Module)
- Why need Vcom adjustment?
A The Vcom (Common Voltage) is a Reference Voltage of
Liquid Crystal Driving.
-> Liquid Crystal need for Polarity Change with every frame.
Row Line
Column Line
CLC
CST
Pane l
S
Y
S
T
E
M
Gat e Driv e IC
So urce D r iv e I C
Circuit Block
Ti m i n g
Co nt r o ll er
Po w er
Blo ck
V
COM
Ga mma
Re f e r ence V oltage
Gamm a R eference
Volta ge
Data (R ,G ,B ) & C on t ro l signal
Control si gnal
Data (R ,G,B ) &
Control si gnal
In t er f a ce
TFT
Po w e r I n pu t
Power Input
Da t a I n p u t
Da t a I n p u t
V
COM
Liquid
Crystal
V
COM
SET PC

LG 42LX6500 Specifications

General

Display diagonal	42 \
Audio system	Dolby Digital
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Power consumption (standby)	0.1 W
Power consumption (typical)	150 W
Annual energy consumption	156 kWh

Weight and Dimensions

Depth (with stand)	270 mm
Height (with stand)	692 mm
Weight (with stand)	19000 g
Depth (without stand)	29.3 mm
Width (without stand)	1016 mm
Height (without stand)	630 mm
Weight (without stand)	16700 g
