LG 42PC1R Series User Manual

REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
AC IN
AV 1 AV 2V 2
MONO
( )
AUDIOAUDIO
RGB INRGB IN
(PC/DTV)(PC/DTV)
RS-232C INRS-232C IN
(CONTROL(CONTROL & SERSERVICE)VICE)
HDMI/DVI INHDMI/DVI IN
ANTENNAANTENNA
IN
SPEAKER
OUTPUT
(MONO)
VIDEOVIDEO
S-VIDEOS-VIDEO
AV IN 3
VIDEOVIDEO
AUDIOAUDIO
COMPONENT IN
AV IN 4V IN 4
AUDIOAUDIOVIDEOVIDEO
L/L/MONOMONO
R
AC IN
RJP
INTERFACE
8
INTRODUCTION
INTRODUCTION
CONNECTION OPTION

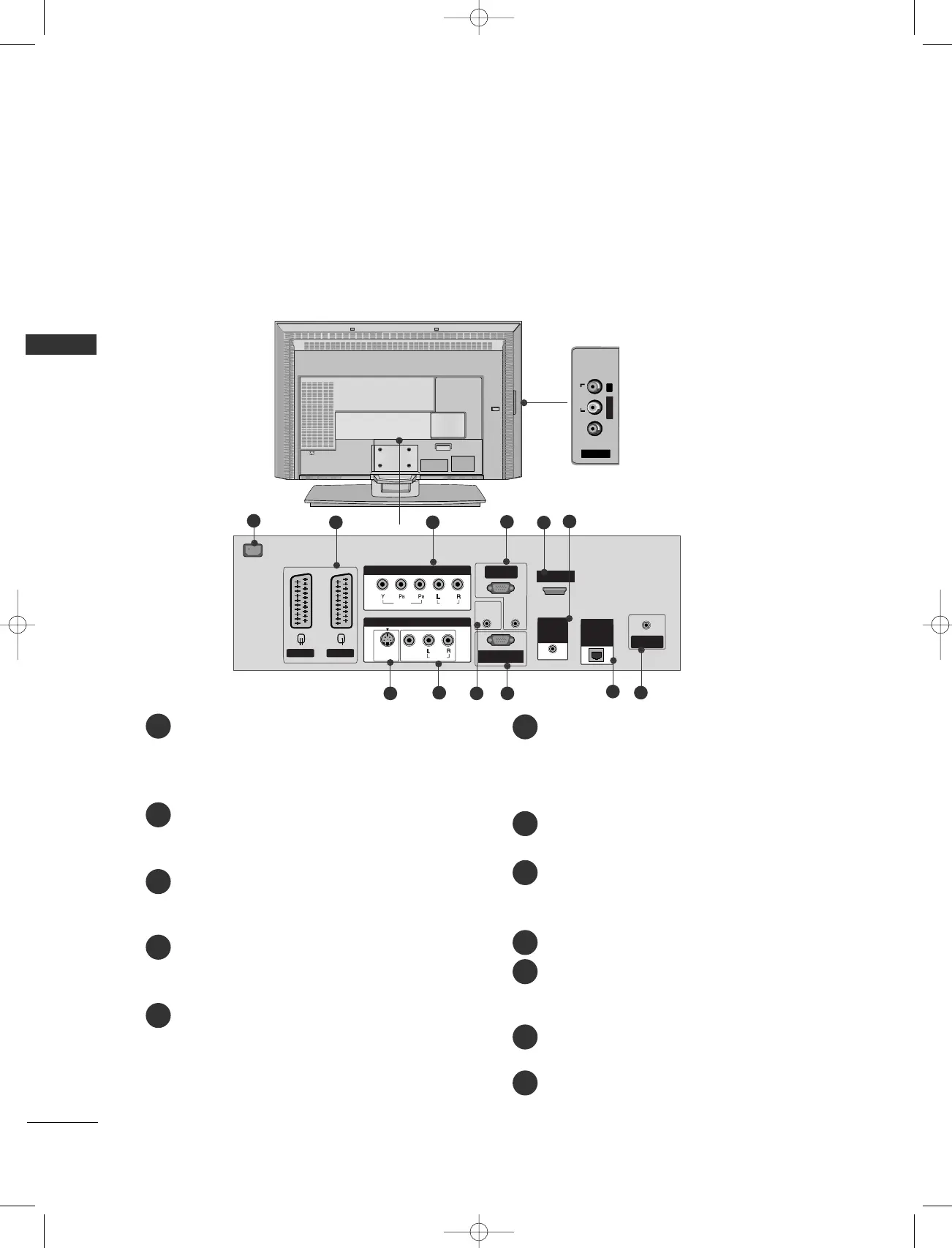

This is the back panel of models
3322HHIIZZ2222,, 3377HHIIZZ2222,, 4422HHIIZZ2222
TVs.
Back Connection Panel
AUDIO Input
Connections are available for listening
stereo sound from an external device.
VIDEO Input
Connects the video signal from a video
device.
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
Speaker out (Mono)
The phone socket for a Hi-Fi amplifier system is
on this jacks.
RGB/Audio Input
Connect the monitor output from a PC/DTV to
the appropriate input port.
HDMI Input
Connect a HDMI signal to HDMI IN(or HDMI/DVI
IN). Connect DVI(VIDEO) signal to HDMI/DVI(or
HDMI/DVI IN) port with DVI to HDMI cable.
S-Video Input
Connect S-Video out from an S-VIDEO device.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Remote Control Port
RS-232C Input
(CONTROL&SERVICE) Port
Connect the serial port of the control devices to
the RS-232C jack.
RJP Input (Available for 32/37/42HIZ22)
Connect control line (RJ45) for RJP(Remote Jack pack)
Antenna Input
Connect over-the-air signals to this jack.
7
8
3
1
2
5
4
10
9
6
12
11
1
2
3
4
5
6
7
8
9
10
11
12
Hotel_0025U 11/26/07 1:33 PM Page 8
