ADJUSTMENT INSTRUCTION
1. Application Range
This spec. sheet is applied to all of the PP81B Chassis.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25±5cC of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver must keep 100~240V,
50/60Hz.
(5) Before adjustment, execute Heat-Run for 30 minutes at RF
no signal.
3. ADC calibration
3-1. PC input ADC
(1) Auto RGB Gain/Offset Adjustment
1) Convert to PC in Input-source
2) Signal equipment displays
Output Voltage : 700 mVp-p
Impress Resolution XGA (1024 x 768 @ 60Hz)
Model : 60 in Pattern Generator
(1024x768@60Hz Black and White Pattern)
Pattern : 54 in Pattern Generator (MSPG-925 SERISE)
[1/2 Black & White Pattern (Refer below picture)].
3) Adjust by commanding AUTO_COLOR_ADJUST(0xF1)
0x00 0x02 instruction.
(2) Confirmation
1) We confirm whether “0xF1 (offset), 0xF2 (gain)” address of
EEPROM “0xBC” is “0xAA” or not.
2) If “0xF1”, “0xF2” address of EEPROM “0xBC” isn’t “0xAA”,
we adjust once more
3) We can confirm the ADC values from “0x00~0x05”
addresses in a page “0xBC”
[ Manual ADC process using Service Remocon. After enter
Service Mode by pushing “ADJ” key, execute “ADC Adjust” by
pushing “
G” key at “Adjust-RGB”.
3-2. COMPONENT input ADC
(1) Component Gain/Offset Adjustment
1) Convert to Component in Input-source
2) Signal equipment displays
Impress Resolution 720P
MODEL : 217 in Pattern Generator
(720P/60Hz 100% Color Bar Mode)
PATTERN : 65 in Pattern Generator( MSPG-925 SERISE)
3) Adjust by commanding AUTO_COLOR_ADJUST(0xF1)
0x00 0x02 instruction
(2) Confirmation
1) We confirm whether “0xF3 (offset), 0xF4 (gain)” address of
EEPROM “0xBC” is “0xAA” or not.
2) If “0xF3”, “0xF4” address of EEPROM “0xBC” isn’t “0xAA”,
we adjust once more.
3) We can confirm the ADC values from “0x06~0x0B”
addresses in a page “0xBC

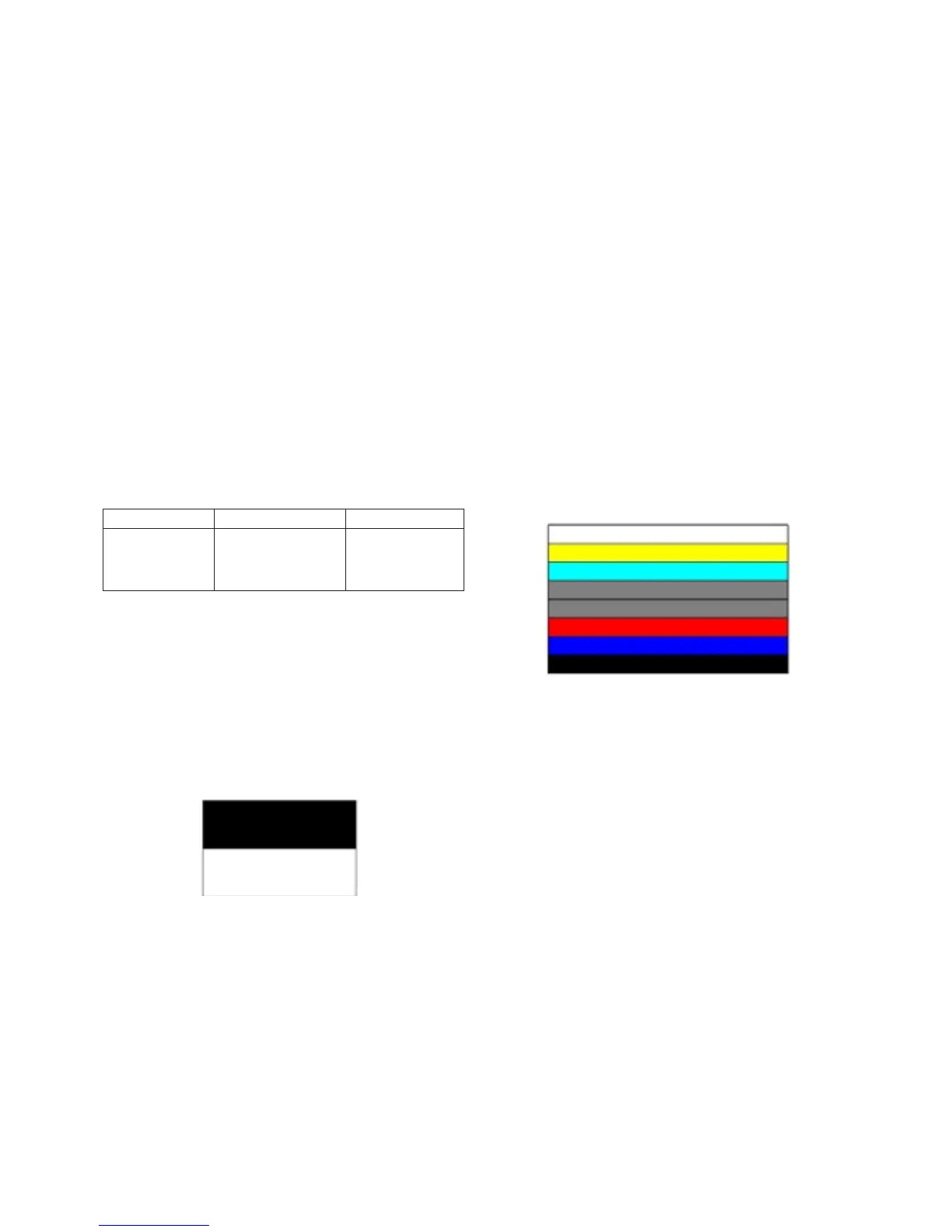

<Fig. 1>
Adjustment pattern (COMPONENT)
MSPG925FA
Component RGBADC
Model : 60
(1024x768@60Hz)
Model : 216
(720P@60Hz)
To Next Page
