- 7 -

Only for training and service purposes

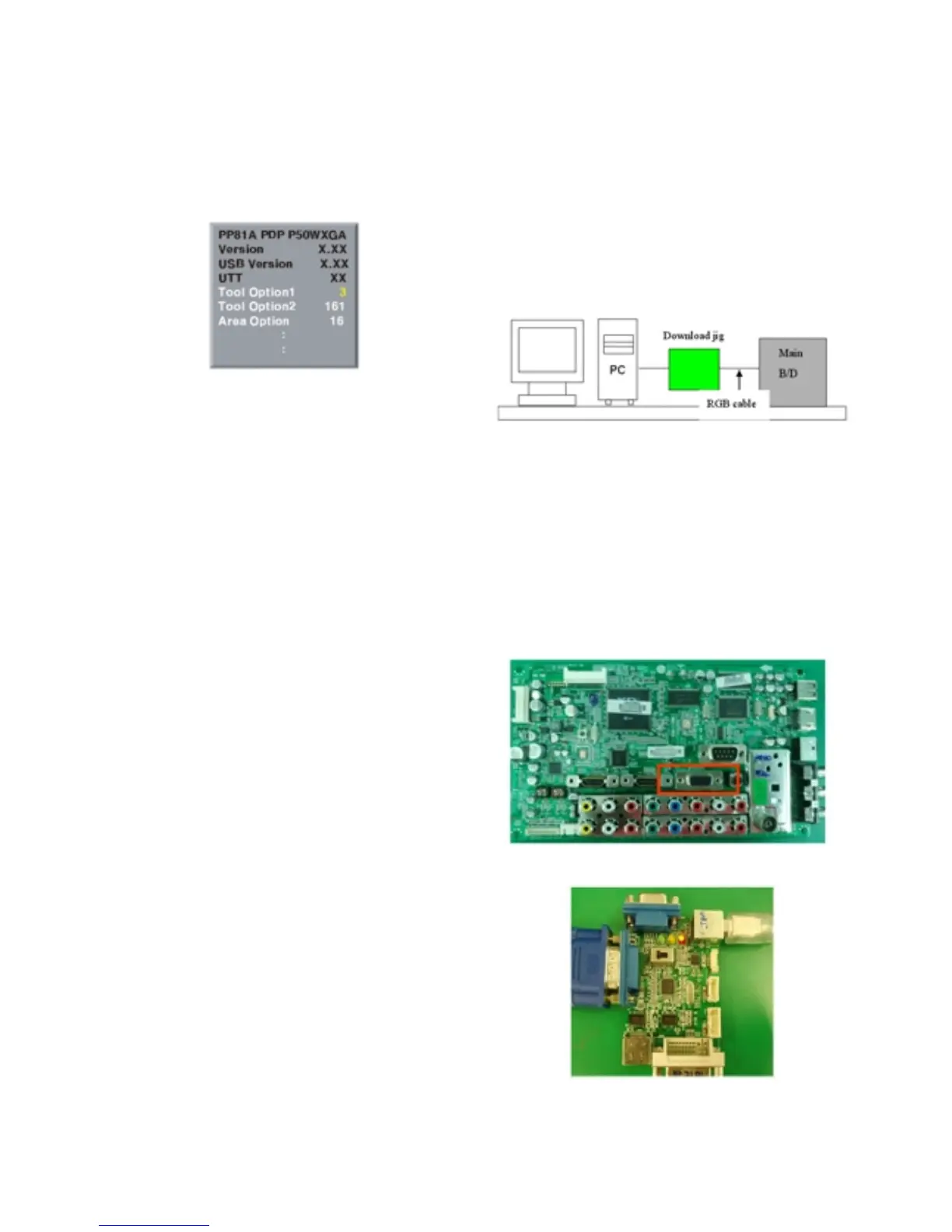

4. PCB Assembly Adjustment Items

4-1. Option Adjustment Following BOM

Tool Option1

Tool Option2

Area Option

* Profile: Must be changed the option value because being

different with some setting value depend on module, inch

and market

* Equipment : Adjustment Remote Controller

(1) Push the IN-START key in the Adjust R/C.

(2) Input the Option Number that was specified in the BOM,

into the Shipping area.

(3) Select “Tool Option1/ Tool Option2/ Area Option” by using

D/E(CH+/-) key, and press the number key(0~9)

consecutively

ex) If the value of Tool Option1 is 7, input the data using

number key “7” (Fig. 2)

Caution: Don’t Push “IN-STOP” key after PCB assembly

adjustment.

(4) Adjustment method

Before PCBA check, have to change the Tool option and

Area option

[ About PDP

After done all adjustments, Press IN-START button and

compare Tool option and Area option value with its BOM, if it

is correctly same then Change “RF mode” and then unplug

the AC cable.

If it is not same, then correct it same with BOM and unplug AC

cable.

For correct it to the model°Øs module from factory JIG model.

[ Don’t push The IN-STOP KEY after completing the function

inspection.

5. S/W Program Download

5-1. Profile

This is for downloading the s/w to the flash memory of the

IC803

5-2. Equipment

(1) PC

(2) ISP_tool program

(3) Download jig

5-3. Connection Structure

5-4. Connection Condition

(1) IC name and circuit number : Flash Memory and IC803

(2) Use voltage : 3.3V (5 pin)

(3) SCL : 15 pin

(4) SDA : 12 pin

(5) Tact time : about 2min and 30seconds

6. Download Method (PCB Ass’y)

6-1. Preliminary Steps

(1) Connect the download jig to D-sub jack

(2) Connect the PC to USB jack

<Fig. 2>
