LG 42PG200R User Manual

- 8 -
LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes

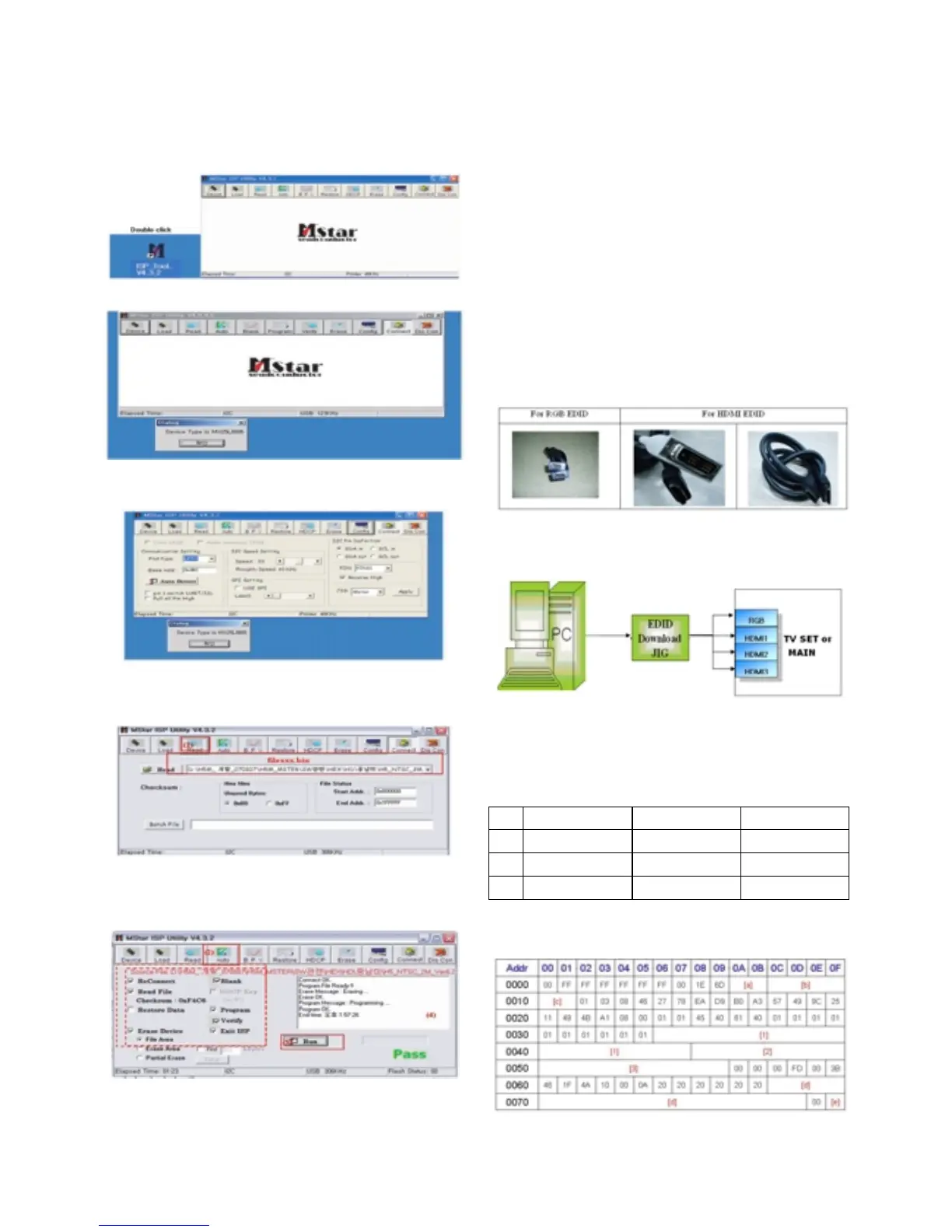

6-2. Download Steps
(1) Execute ‘ISP Tool’ program in PC, then a main window will
be opened
(2) Click the connect button and confirm “Dialog Box”.
(3) Click the Config button and Change speed
E2PROM Device setting : over the 350Khz
(4) Read and write bin file
Click “(1)Read” tab, and then load download file(XXXX.bin)
by clicking “Read”.
(5) Click “Auto(2)” tab and set as below
(6) Click “Run(3)”.
(7) After downloading, check “OK(4)” message.
7. EDID(The Extended Display
Identification Data) / DDC
(Display Data Channel) Download
[ Caution
- Use the proper signal cable for EDID Download
- Never connect HDMI & D-SUB Cable at the same time.
- Use the proper cables below for EDID Writing
7-1. Profile: To be possible for plug and play
7-2. Equipment
(1) Adjusting PC with S/W for writing EDID Data.(S/W: EDID
TESTER Ver.2.5)
(2) A Jig for EDID Download
(3) Cable : Serial(9Pin or USB) to D-sub 15Pin cable, D-sub
15Pin cable, DVI to HDMI cable.
7-3. Connection Structure
Caution: Never connect HDMI & D-SUB Cable at the same time.
7-4. EDID Data
O XGA EDID DATA
<Analog : 128bytes>
<Fig. 3> Connection Diagram of DDC Download
1
2
3
Manufaturer
Version
Revision
GSM
Digital : 1
Digital : 3
1E6D
01
03
ConditionItemNo Hex Data

LG 42PG200R Specifications

General

Depth	86 mm
Height	677 mm
Weight	24360 g
Equalizer	Yes
Pixel pitch	0 mm
Audio system	SRS TruSurround XT
Product color	Black
RMS rated power	20 W
Display diagonal	42 \
Depth (with stand)	307 mm
Display brightness	1500 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Power requirements	100~240V, 50 - 60Hz
Width (with stand)	1040 mm
Height (with stand)	729 mm
Weight (with stand)	27300 g
SCART ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Viewable size diagonal	1070 mm
S-Video inputs quantity	1
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	-
Equalizer bands quantity	5
Display viewable area (HxV)	1040 x 729 mm
Power consumption (standby)	1 W
Power consumption (typical)	310 W
