5.2.5. EDID DATA

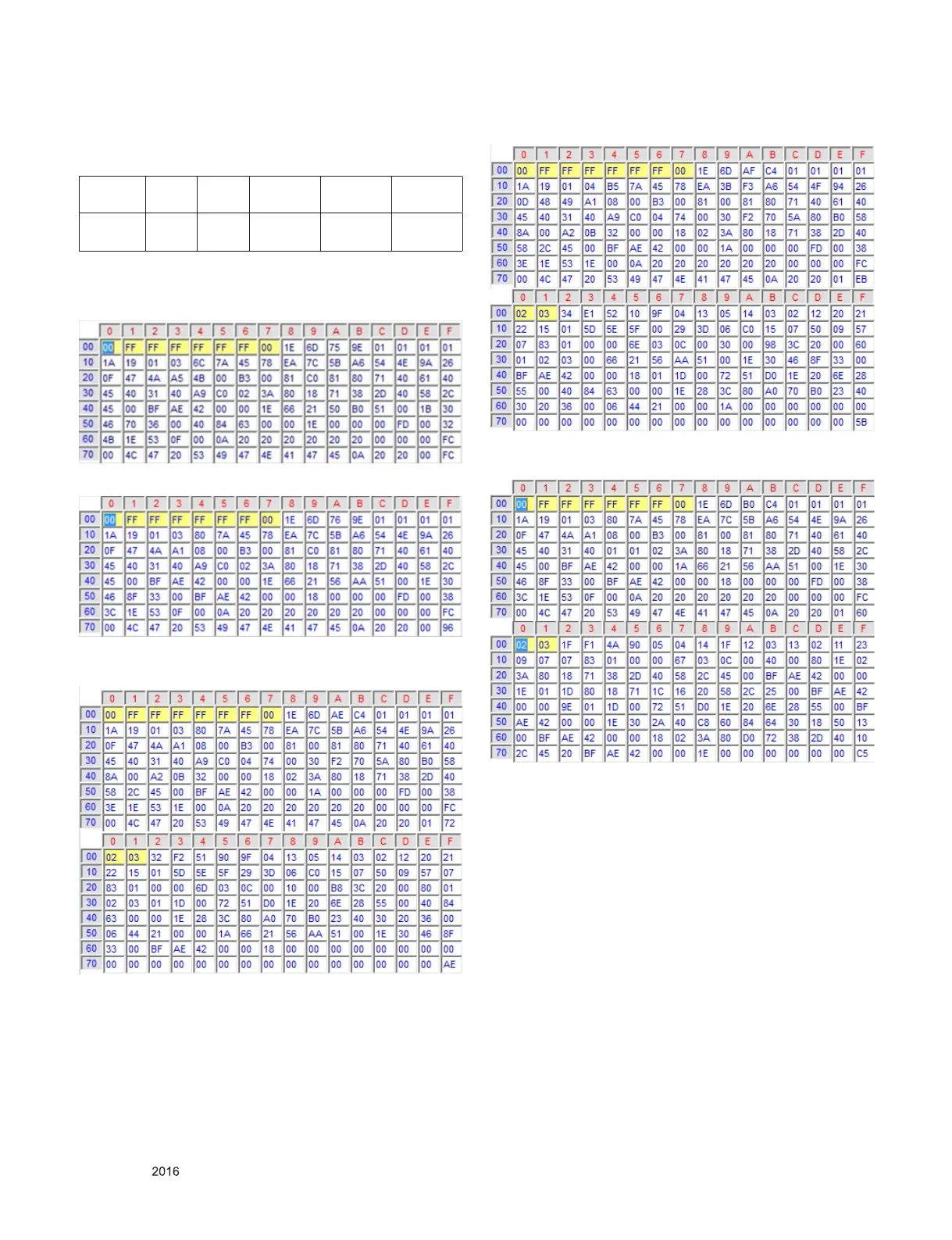

5.2.5.1. EDID
Input RGB DVI HDMI Display-
Port
OPS
Check-
Sum
0xFC 0x96 0x72,
0xAE
0xEB,
0x5B
0x60,
0XC5
* Checksum(HDMI/RGB/DVI/Displayport/OPS)
1) RGB (Check Sum : 0xFC)
2) DVI (Check Sum : 0x96)
3) HDMI (Check Sum : 0x72, 0xAE)
4) DP (Check Sum : 0xEB, 0x5B)
5) OPS (Check Sum : 0X60, 0xC5)
5.3. White Balance Adjustment
5.3.1. Overview
▪ W/B adj. Objective & How-it-works
- Objective: To reduce each Panel’s W/B deviation
- How-it-works: When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range.
In order to prevent saturation of Full Dynamic
range and data, one of R/G/B is xed at
192, and the other two is lowered to nd the
desired value.
- Adj. condition: normal temperature
1) Surrounding Temperature: 25 ± 5 °C
2) Warm-up time: About 5 Min
3) Surrounding Humidity: 20 % ~ 80 %
4) Before White balance adjustment, Keep power on status,
don’t power off
