ASSEMBLING AND PREPARING

The items supplied with your product may vary depending on the model.

Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.

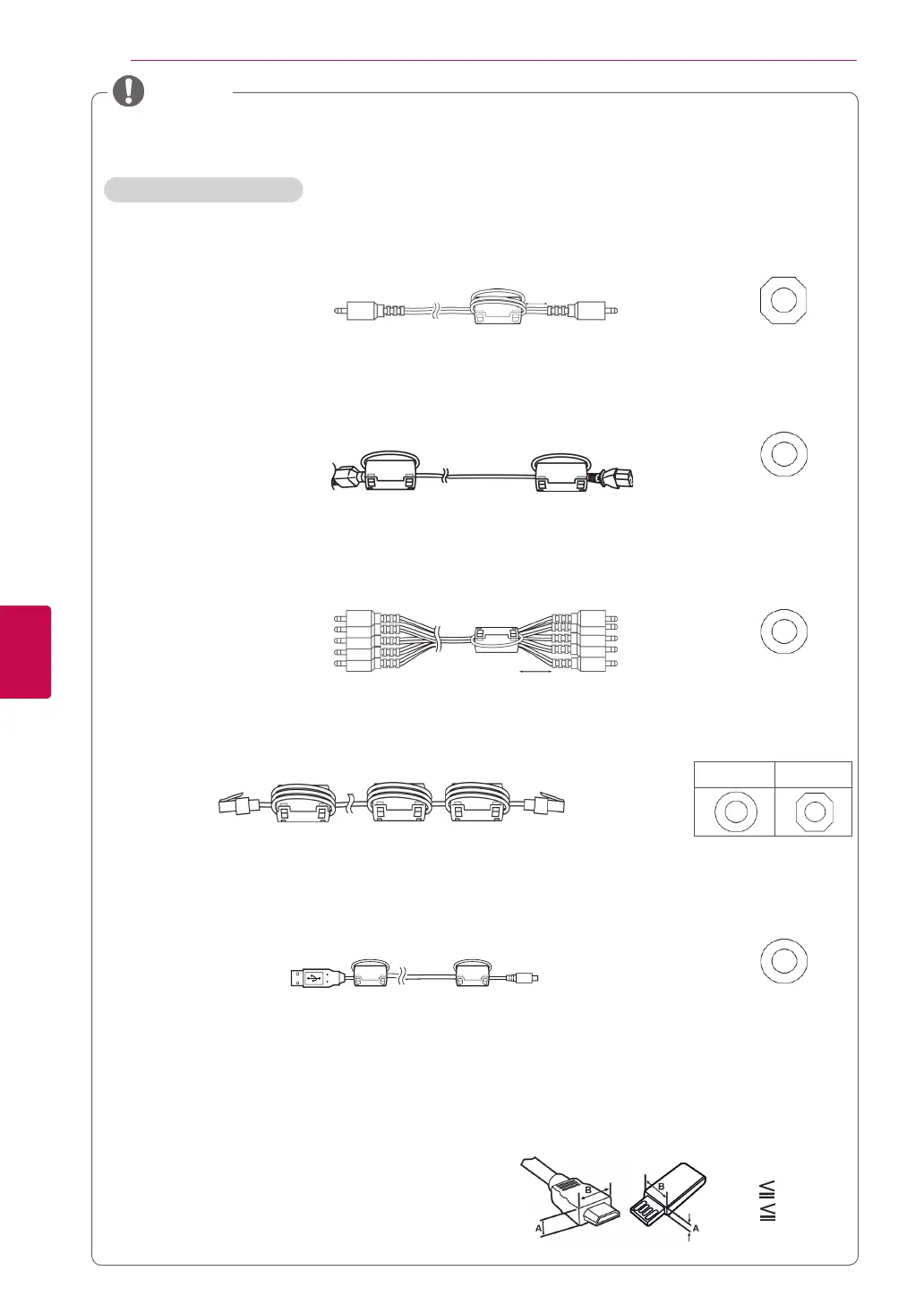

How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV.
2 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.
5 Use the ferrite core to reduce the electromagnetic interference in the charging cable.
Wind the charging cable on the ferrite core once. Place the ferrite core close to an external device and
the cradle or touch pen.
[to an External device]
[Figure 1]
[to the TV]
10 mm(+ / - 5 mm)
3 Use the ferrite core to reduce the electromagnetic interference in the component Y, Pb, Pr, L,
R cable. Wind the component Y, Pb, Pr, L, R cable on the ferrite core once.
Place the ferrite core close to the TV.
[Cross Section of
Ferrite Core]
(Gray)
[to an External device]
[Figure 3]
[to the TV]
10 mm(+ / - 5 mm)
[Cross Section of
Ferrite Core]
(Black)
[to a wall plug]
[to the TV]
[Figure 2]
[Cross Section of
Ferrite Core]
(Black)
[to an External device]
[to the Cradle or Touch pen]
[Figure 5 ]
[Cross Section of
Ferrite Core]
(Gray)
- If there is one ferrite core, follow as shown in Figure 1.
- If there are three ferrite cores, follow as shown in Figures 1 and 2.
- If there are four ferrite cores, follow as shown in Figures 1, 2 and 3.
- If there is LAN port, additionally follow as shown in Figure 4.
- If there is charging cable, additionally follow as shown in Figure 5.
NOTE
4 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the
LAN cable thrice on the ferrite core. Place the ferrite core close to the TV and an External device.
A (Gray) B (Gray)
[Cross Section of
Ferrite Core]
[to the TV]
[to an External
device]
B A A
[Figure 4]
 For an optimal connection, HDMI cables and USB de-
vices should have bezels less than 10 mm thick and
18 mm width. Use an extension cable that supports
USB 2.0 if the USB cable or USB memory stick does
not fit into your TV’s USB port.
*A 10 mm
*B 18 mm

LG 50PA4500 Specifications

General

3D	No
Depth	53.34 mm
Width	1168 mm
Height	703.6 mm
Weight	25830 g
HD type	Not supported
24p support	Yes
Pixel pitch	- mm
Smart modes	Cinema, Game, Standard, Vivid
Aspect ratio	4:3
HDMI version	1.3
Package depth	229.6 mm
Package width	1331 mm
Product color	Black
Package height	817.9 mm
Package weight	33790 g
RMS rated power	10 W
AC input voltage	100 - 240 V
Display diagonal	50 \
AC input frequency	50 - 60 Hz
Depth (with stand)	297.2 mm
Display brightness	- cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Number of speakers	2
Height (with stand)	756.9 mm
Placement supported	Horizontal
Weight (with stand)	28210 g
Supported video modes	1080i, 1080p, 720p
USB 2.0 ports quantity	1
Audio formats supported	AAC, HE-AAC, LPCM, MP2, MP3, MS-ADPCM, WMA
Image formats supported	JPG
Number of OSD languages	4
S-Video inputs quantity	0
Video formats supported	DIVX
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	-
Equalizer bands quantity	5
Panel mounting interface	400 x 400 mm
Annual energy consumption	189.8 kWh
Display diagonal (metric)	126.7 cm
Screen format adjustments	4:3, 16:9
Analog signal format system	NTSC
Power consumption (standby)	0.2 W
Power consumption (typical)	130 W
Sustainability certificates	ENERGY STAR
Digital signal format system	ATSC
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Consumer Electronics Control (CEC)	Anynet+
