ENGLISH
28
MAKING CONNECTIONS

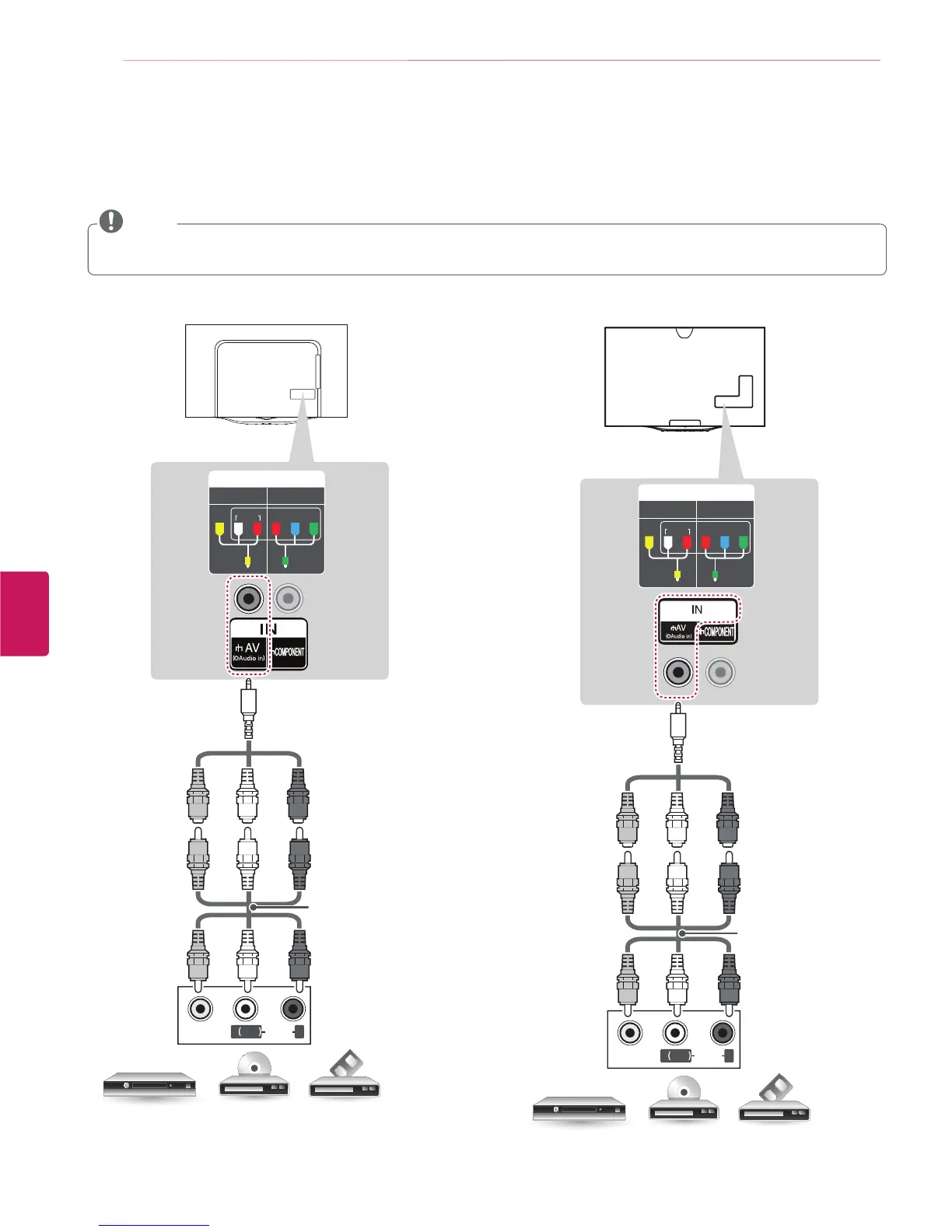

Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite
cable as shown in the following illustration.
y
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
IN
COMPONENT
AV
VIDEO AUDIO
Y
P
B
P
R
VIDEO
MONO
( )
AUDIOLR
YELLOW
WHITE
RED
WHITE
YELLOW
RED
WHITE
YELLOW
RED
VCR / DVD / Blu-Ray / HD Cable Box
YELLOW
(Use the composite video cable
provided.)
(*Not Provided)
IN
COMPONENT
AV
VIDEO AUDIO
Y
P
B
P
R
VIDEO
MONO
( )
AUDIOLR
YELLOW
WHITE
RED
WHITE
YELLOW
RED
WHITE
YELLOW
RED
VCR / DVD / Blu-Ray / HD Cable Box
YELLOW
(Use the composite video cable
provided.)
(*Not Provided)
(For 55EC9300) (For 77EC9800)
To Next Page
