LG 55EU960H - EU960 H Jack Panels

95
206-4334

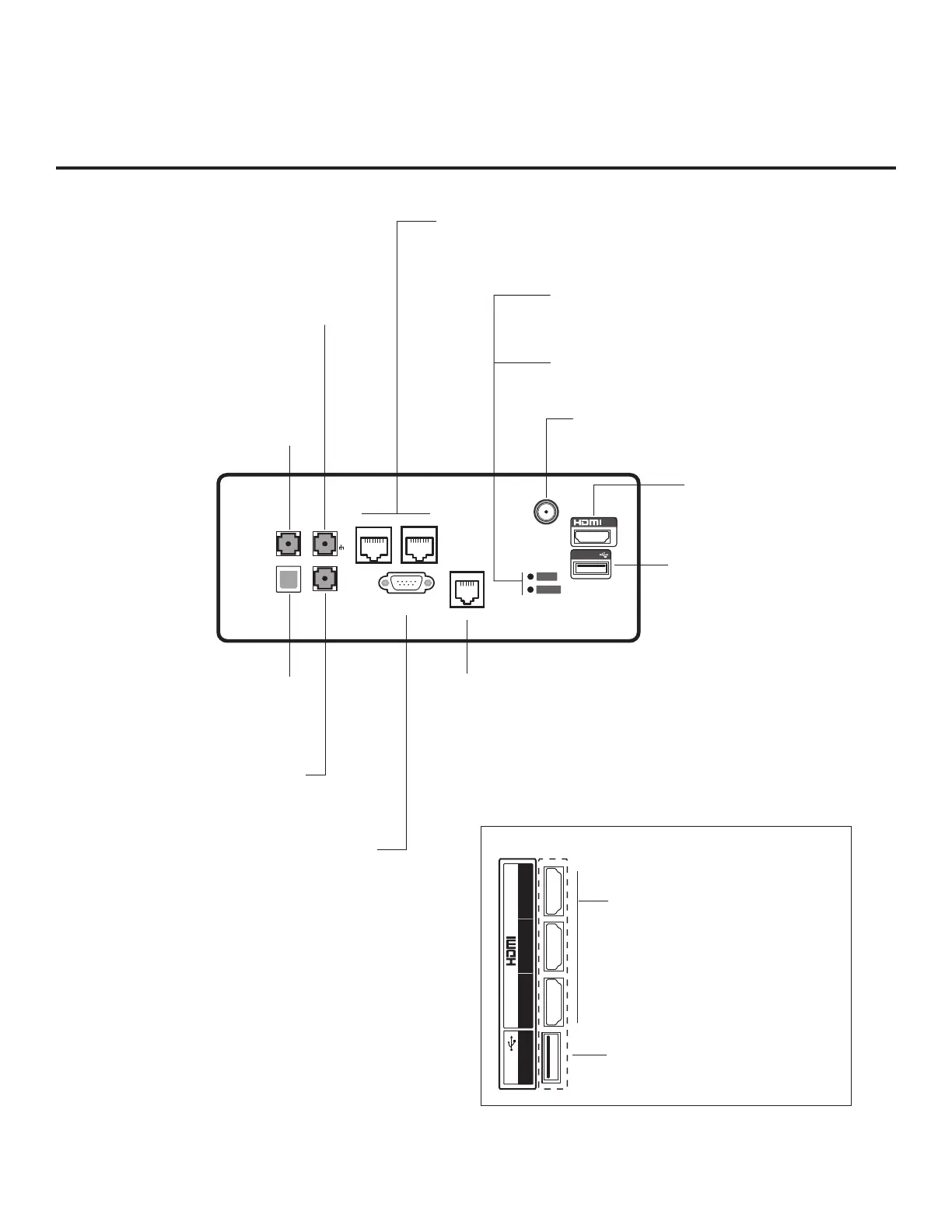

Reference: EU960H Jack Panels
ANTENNA/
CABLE IN
RESET
UPDATE
OPTICAL
DIGITAL
AUDIO OUT
RS-232C IN
(CONTROL & SERVICE)
MPI
IN
1
SPEAKER OUT
LINE OUT
LAN
AUX LAN
IN
AV
SERVICE
ONLY
USB IN 1
AV IN
(3.5 mm jack) Connect video/audio
output from external device (use A/V
adapter cable provided with TV).
UPDATE
Restricted to software updates.
RESET
Initiates a hardware reset and turns
the TV OFF.
SPEAKER OUT / LINE OUT
(3.5 mm jack) Connect external audio
(xed speaker, variable speaker, or
xed line level [amplier]) equipment.
See also Reference section, “External
Stereo Speaker Specifications.”
SERVICE ONLY
Typically used for downloading
software updates, etc.
HDMI IN 1
Connection for HDMI output
from external device.
ANTENNA/CABLE IN
Connect to Antenna/CATV.
OPTICAL DIGITAL AUDIO OUT
Use for amps and home theater
systems. Note: When the TV is
OFF, this port is not enabled.
AUX LAN & LAN
Use for video IP and/or network
connections.
USB IN 1
Insert USB memory device
for software updates, cloning
purposes, FTG Mode configuration,
picture/music entertainment, etc., as
applicable.
Side Jack Panel
4
IN
2
(
ARC
)
3
2
USB IN
USB IN 2
Insert USB memory device
for software updates, cloning
purposes, FTG Mode configuration,
picture/music entertainment, etc., as
applicable.
HDMI IN 2, 3, & 4
Connection for HDMI output
from external device.
MPI
When the TV is in Pass-through Mode, the MPI
function enables an external MPI control device
(i.e., VOD/PPV STB, etc.) to control the TV.
RS-232C IN (CONTROL & SERVICE)
When the TV is in Pass-through Mode, the
RS-232C control function enables an external
TLT control device (i.e., VOD/PPV STB, etc.) to
control the TV. Service for factory use only.
