LG 55LD650 - Cable Management

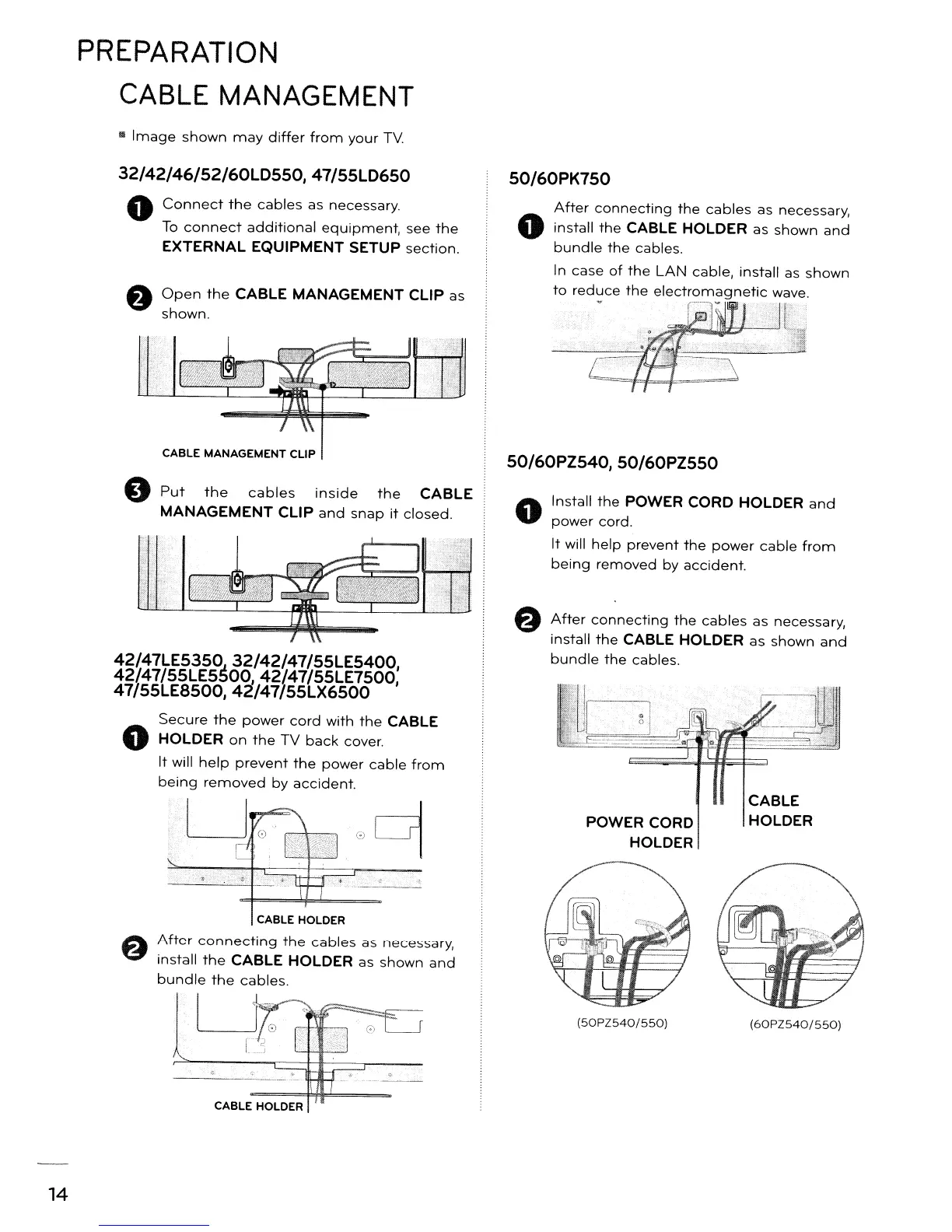

PREPARATION
CABLE MANAGEMENT
• Image shown may differ from your TV
32/42/46/52/60LD550,47/55LD650
50/60PK750
o
Connect the cables as necessary.
To connect additional equipment, see the
EXTERNAL EQUIPMENT SETUP section.
Open the CABLE MANAGEMENT CLIP as
shown.
o
After connecting the cables as necessary,
install the CABLE HOLDER as shown and
bundle the cables.
In case of the LAN cable, install as shown
to reduce the electromagnetic wave.
~s
(60PZ540/550)
CABLE
HOLDER
POWER CORD
HOLDER
(50PZ540/550)
After connecting the cables as necessary,
install the CABLE HOLDER as shown and
bundle the cables.
Install the POWER CORD HOLDER and
power cord.
It will help prevent the power cable from
being removed by accident.
o
50/60PZ540, 50/60PZ550
CABLE HOLDER
After connecting the cables as necessary,
install the CABLE HOLDER as shown and
bundle the cables.
Secure the power cord with the CABLE
HOLDER
on the TV back cover.
It will help prevent the power cable from
being removed by accident.
CABLE MANAGEMENT CLIP
o
9 Put the cables inside the CABLE
MANAGEMENT CLIP
and snap it closed.
42/47LE5350,l 32/42/47/55LE5400,
42/47/55LE5:>OO, 42/47/55LE7500,
47/55LE8500,42/47/55LX6500
CABLE HOLDER
