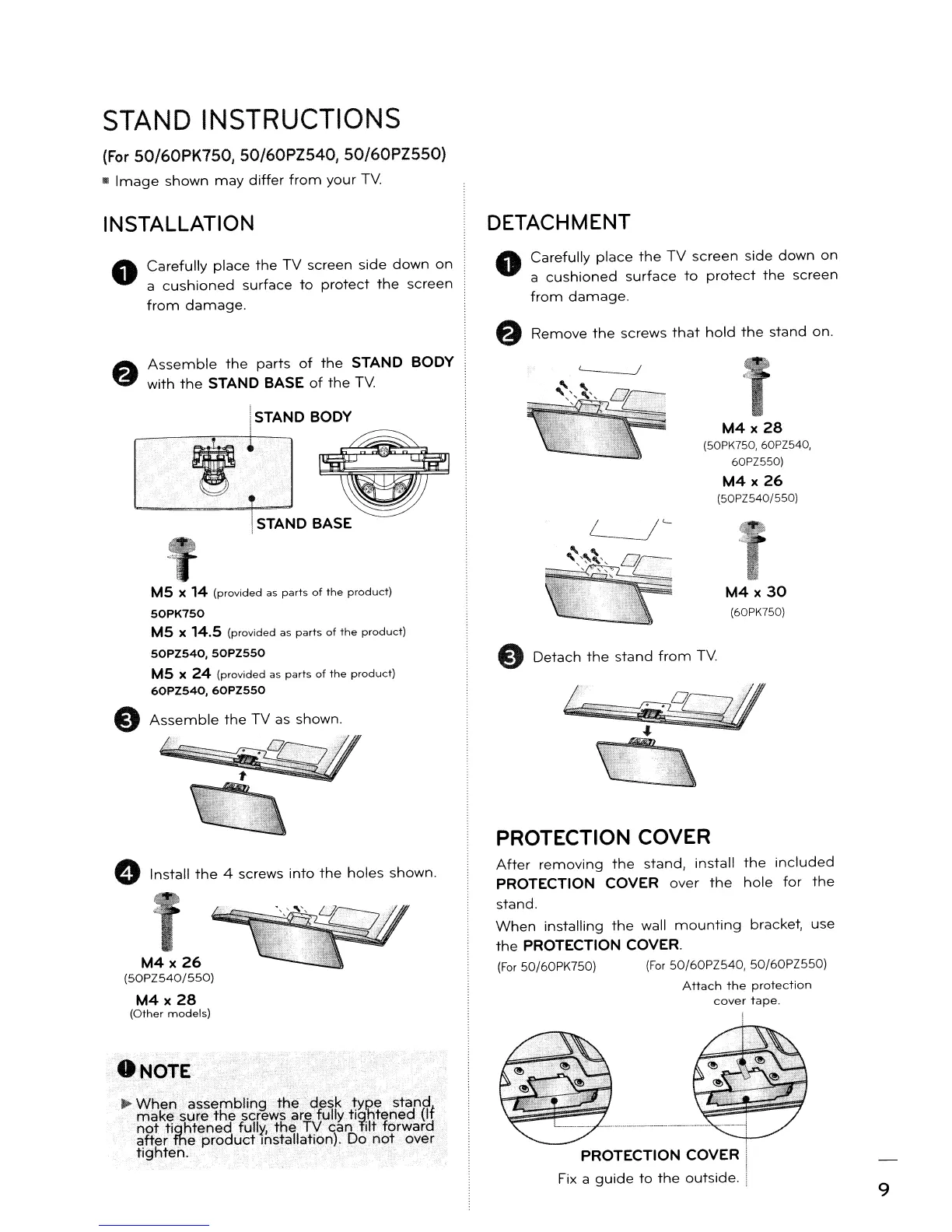

STAND INSTRUCTIONS
(For SO/60PK7S0, SO/60PZS40, SO/60PZSSO)
• Image shown may differ from your TV
INSTALLATION
o
o
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
DETACHMENT
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
o Remove the screws that hold the stand on.
M4x 30
(60PK750)
M4x 28
(50PK750, 60PZ540,
60PZ550)
M4 x 26
(50PZ540/550)
o Detach the stand from TV
PROTECTION COVER
After removing the stand, install the included
PROTECTION COVER over the hole for the
stand.
When installing the wall mounting bracket, use
the PROTECTION COVER.
(For 50/60PK750) (For 50/60PZ540, 50/60PZ550)
Attach the protection
cover tape.
I
ISTAND BASE
M4 x 26
(50PZ540/550)
M4 x 28
(Other models)
Assemble the parts of the STAND BODY
with the STAND BASE of the TV
ISTAND BODY
"--------;*..-----+---... •
,
M5 x 14 (provided as parts of the product)
50PK750
M5 x 14.5 (provided as parts of the product)
50PZ540.50PZ550
M5 X 24 (provided as parts of the product)
60PZ540.60PZ550
o Assemble the TV as shown.
t::A
e Install the 4 screws into the holes shown.
oNOTE
.,.; When' assembling the desk type stand
make sure the screwsare fully tightened (If
not. t.i
Q
.. 'hte. ned .full
y
.I the TV.can filtforwa. rd
after the product Installation). Do not over
tighten.
PROTECTION COVER
Fix a guide to the outside.
9
