DVI to HDMI Connection

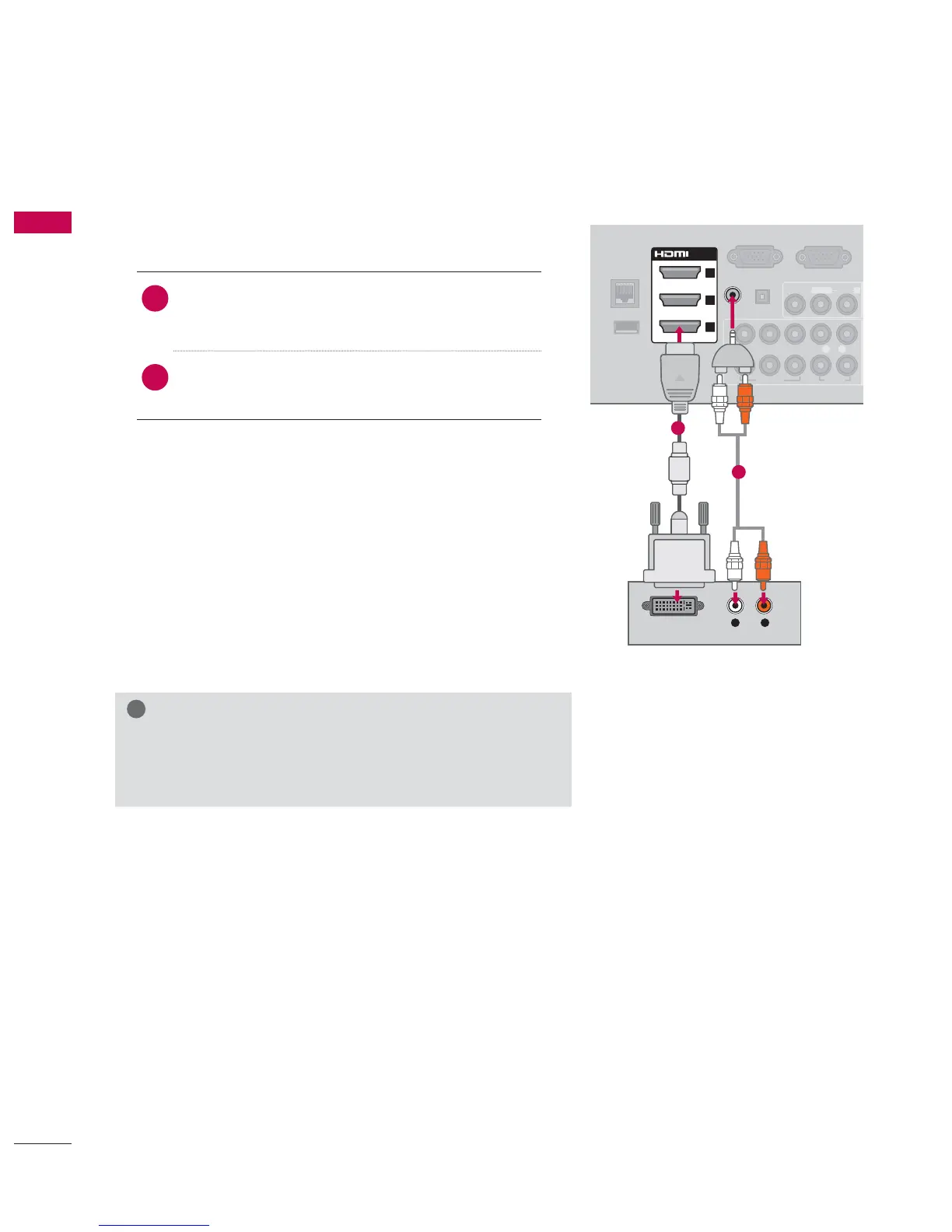

1. How to connect
1
Connect the DVI output of the digital set-top
box to the HDMI/DVI IN 1, 2, 3, or 4* jack on
the TV.
2
Connect the digital set-top box audio output to
the AUDIO IN (RGB/DVI)
jack on the TV.
2. How to use
ᯫ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
ᯫ
Select the HDMI1, HDMI2, HDMI3, or HDMI4* input
source on the TV using the INPUT
button on the
remote control.
!
NOTE
A DVI to HDMI cable or adapter is required for this con-
nection. DVI doesn't support audio, so a separate audio
connection is necessary.
L R
DVI OUTPUT
AUDIO
RGB IN (PC)
LAN
WIRELESS
CONTROL
RS-232C IN
(
SERVICE ONLY)
VIDEO
AUDIO
L(MONO)
R
VIDEO
AUDIO
YP
B
P
R
L R
AUD O OUT
2
/DVI IN
2
3
1
(RGB/DVI)
AUD O N
OPT CAL DIGITAL
ꔡ
1
2
* HDMI4: For 50/60PK750
