LG 55LF6000 Service Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
2014/05/22

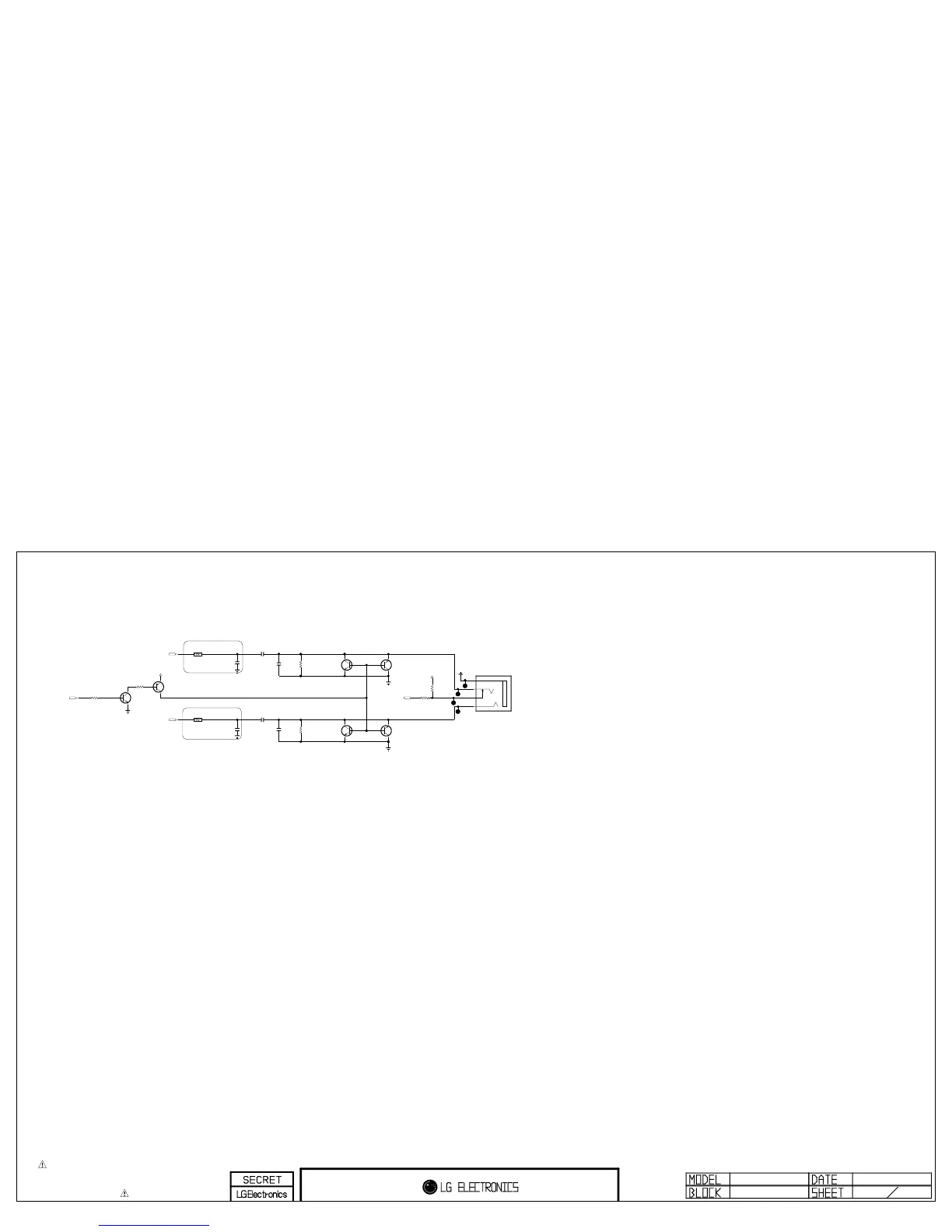

HEAD_PHONE 30
L14_CA_M1A
R3001
3.3K
OPT
C3000
10uF
16V
HEAD_PHONE
C3001
10uF
16V
HEAD_PHONE
+3.3V_Normal
R3005
10K
HEAD_PHONE
C3003
1000pF
50V
OPT
HP_LOUT
R3004
1K
HEAD_PHONE
HP_DET
+3.5V_ST
HP_ROUT
SIDE_HP_MUTE
R3002
1K
HEAD_PHONE
C3002
1000pF
50V
OPT
R3003
1K
HEAD_PHONE
Q3002
MMBT3904(NXP)
OPT
E
B
C
Q3003
MMBT3904(NXP)
OPT
E
B
C
Q3005
MMBT3904(NXP)
OPT
E
B
C
Q3004
MMBT3904(NXP)
OPT
E
B
C
Q3001
MMBT3906(NXP)
OPT
E
B
C
Q3000
MMBT3904(NXP)
OPT
E
B
C
R3000
1K
OPT
C3004
4.7uF
10V
HEAD_PHONE
L3001
HEAD_PHONE
5.6uH
L3000
HEAD_PHONE
5.6uH
C3005
4.7uF
10V
HEAD_PHONE
JK3000
PEJ038-3B6
HEAD_PHONE
3DETECT
4L
5GND
1R
Headphone
*Option : HEAD_PHONE_EU
Close to the Main IC
Close to the Main IC
Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

LG 55LF6000 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	55 \
Display brightness	- cd/m²
Native refresh rate	60 Hz
LED backlighting type	-
Supported video modes	1080i, 1080p
Display diagonal (metric)	139.7 cm
Screen format adjustments	16:9
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	TruMotion 120 Hz
Annual energy consumption	97 kWh
Audio decoders	Dolby Digital
RMS rated power	20 W
Number of speakers	2
DVI port	No
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Cables included	AC
Audio formats supported	AAC, AC3, EAC3, HE-AAC, MP2, MP3, PCM
Image formats supported	JPEG XR
Video formats supported	DIVX
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.3 W
Package depth	175.3 mm
Package width	1331 mm
Package height	810.3 mm
Package weight	22770 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	254 mm
Height (with stand)	772.2 mm
Weight (with stand)	18370 g
Depth (without stand)	55.88 mm
Width (without stand)	1242 mm
Height (without stand)	718.8 mm
Weight (without stand)	17960 g
