LG 55LF6000 Service Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

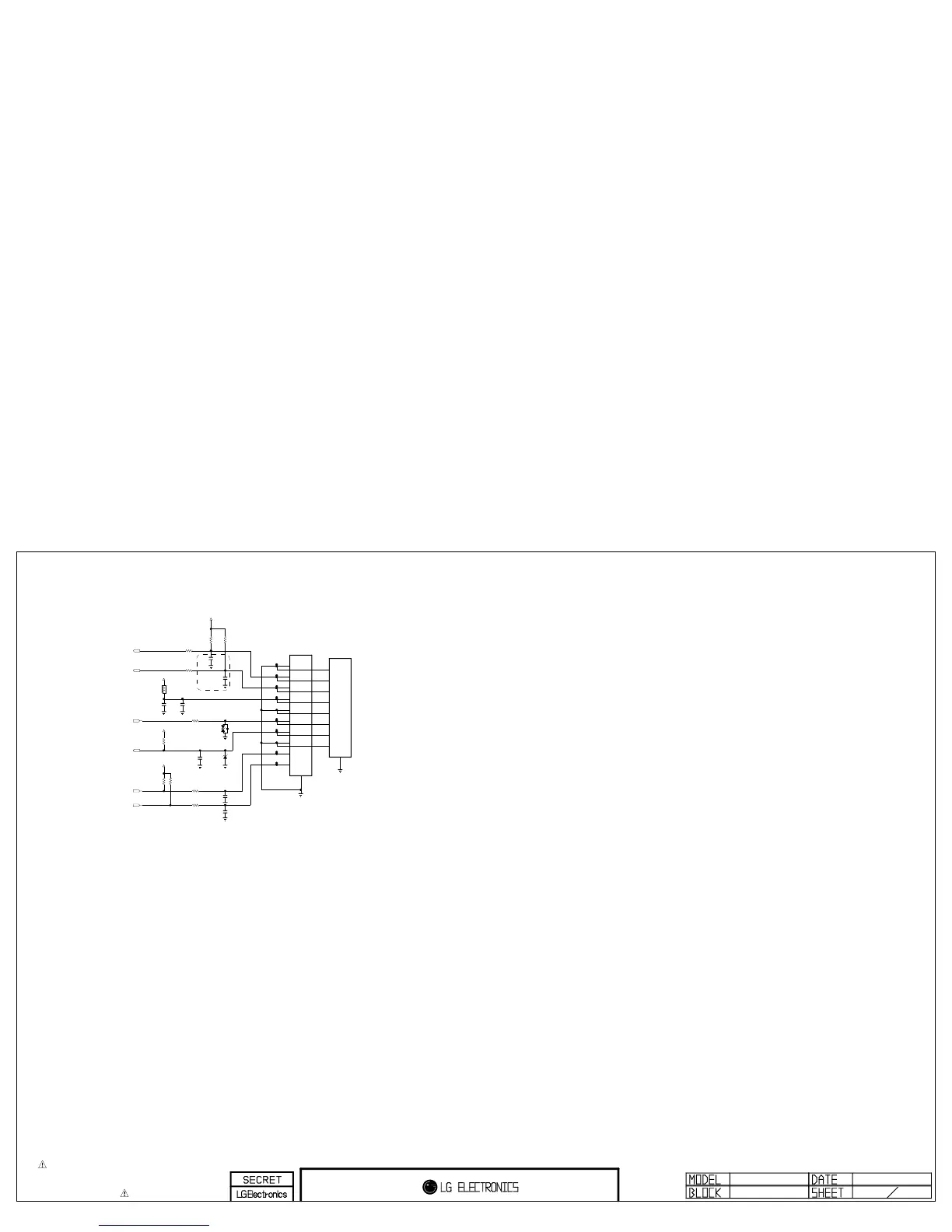

IR_EYE_SENSOR
2014/06/02
46
L14_CA_M1A
R4603
10K
1%
R4602
100
C4606
18pF
50V
IR_Eye_Sensor
C4600
0.1uF
R4608
100
IR_Eye_Sensor
R4600
3.3K
R4607
1K
IR_Eye_Sensor
C4603
0.1uF
16V
KEY1
+3.5V_ST
R4601
100
C4601
1000pF
50V
KEY2
VA4600
OPT
5.6V
R4604
10K
1%
C4604
100pF
50V
R4605
1K
IR_Eye_Sensor
SENSOR_SDA
+3.3V_Normal
P4601
12507WR-08L
IR_8p
1
2
3
4
5
6
7
8
9
C4602
0.1uF
16V
L4600
BLM18PG121SN1D
C4605
18pF
50V
IR_Eye_Sensor
+3.5V_ST
IR
R4609
100
IR_Eye_Sensor
+3.5V_ST
R4606
1.8K
SENSOR_SCL
P4600
12507WR-10L
IR_10p
1
2
3
4
5
6
7
8
9
10
11
LED_R/BUZZ
ZD4601
5V
OPT
IR + LED + Digital Eye + Control Key
For EMI
Copyright ⓒ 2015 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

LG 55LF6000 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	55 \
Display brightness	- cd/m²
Native refresh rate	60 Hz
LED backlighting type	-
Supported video modes	1080i, 1080p
Display diagonal (metric)	139.7 cm
Screen format adjustments	16:9
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	TruMotion 120 Hz
Annual energy consumption	97 kWh
Audio decoders	Dolby Digital
RMS rated power	20 W
Number of speakers	2
DVI port	No
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Cables included	AC
Audio formats supported	AAC, AC3, EAC3, HE-AAC, MP2, MP3, PCM
Image formats supported	JPEG XR
Video formats supported	DIVX
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.3 W
Package depth	175.3 mm
Package width	1331 mm
Package height	810.3 mm
Package weight	22770 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	254 mm
Height (with stand)	772.2 mm
Weight (with stand)	18370 g
Depth (without stand)	55.88 mm
Width (without stand)	1242 mm
Height (without stand)	718.8 mm
Weight (without stand)	17960 g
