6
ASSEMBLING AND PREPARING
ENGLISH
1 Antenna Isolator Installation Guide
Use this to install TV in a place where there is a voltage difference between GND of power and GND of
antenna signal.
- If there is a voltage difference between GND of power and GND of antenna signal, the antenna contact
might be heated and excessive heat might cause an accident.
You can improve the safety when watching TV by efficiently removing power voltage from TV antenna.
Avoid disconnecting the antenna Isolator after installation.
Isolator
Plug 1 Plug 2
Plug 1
Plug 2

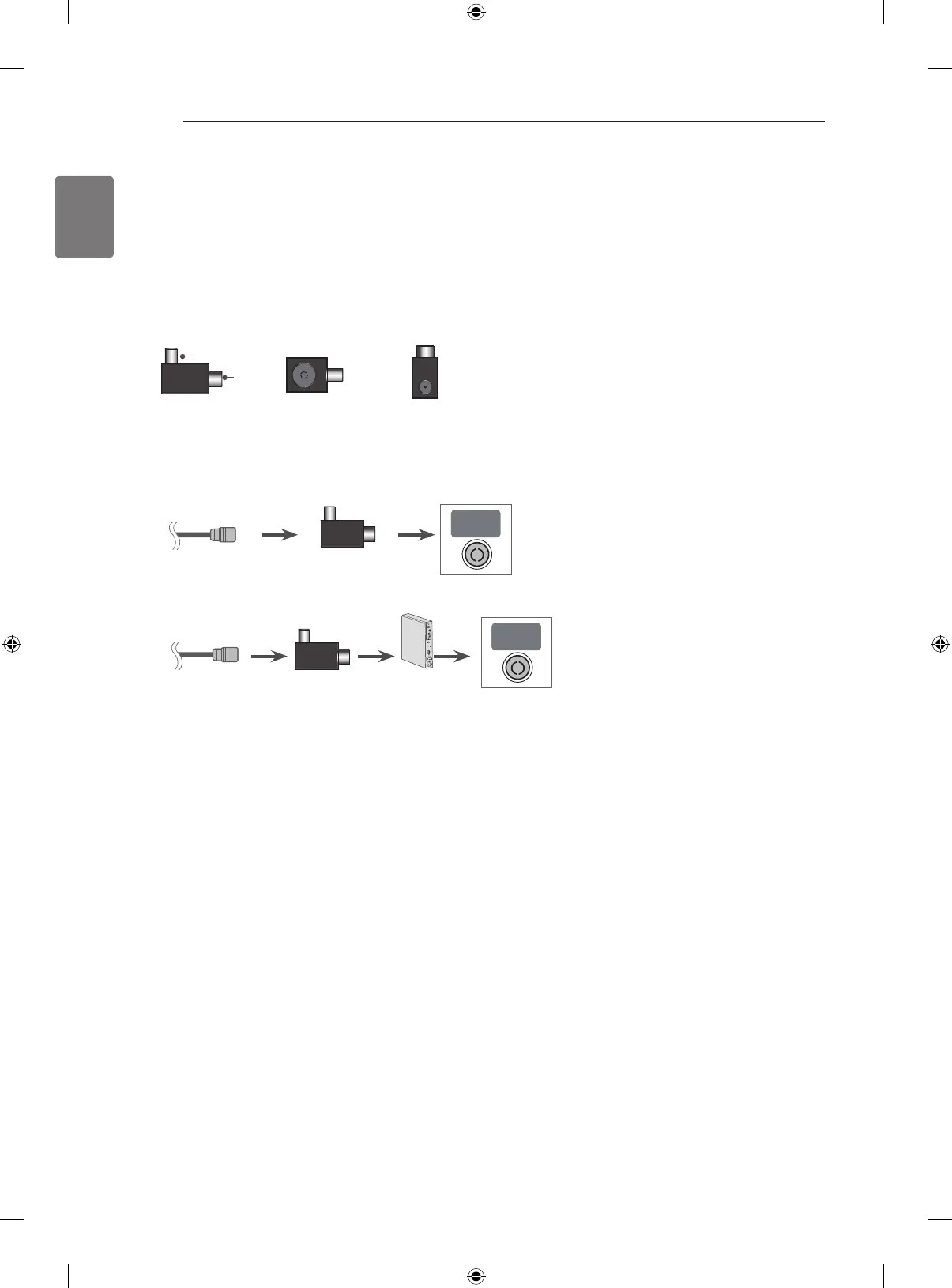

Exterior of antenna isolator:
Connection method :
- Connect Plug 1 with a signal cable.
- Connect Plug 2 with ANT input end on the back of TV.
ANTENNA/
CABLE IN
RF-Coaxial Wire Isolator
RF-Coaxial Wire Isolator
STB
ANTENNA/
CABLE IN
“Equipment connected to the protective earthing of the building installation through the mains connection or
through other equipment with a connection to protective earthing - and to a cable distribution system using
coaxial cable, may in some circumstances create a fire hazard.
Connection to a cable distribution system has therefore to be provided through a device providing electrical
isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
