LG A09AW1 User Manual

8 Room Air Conditioner

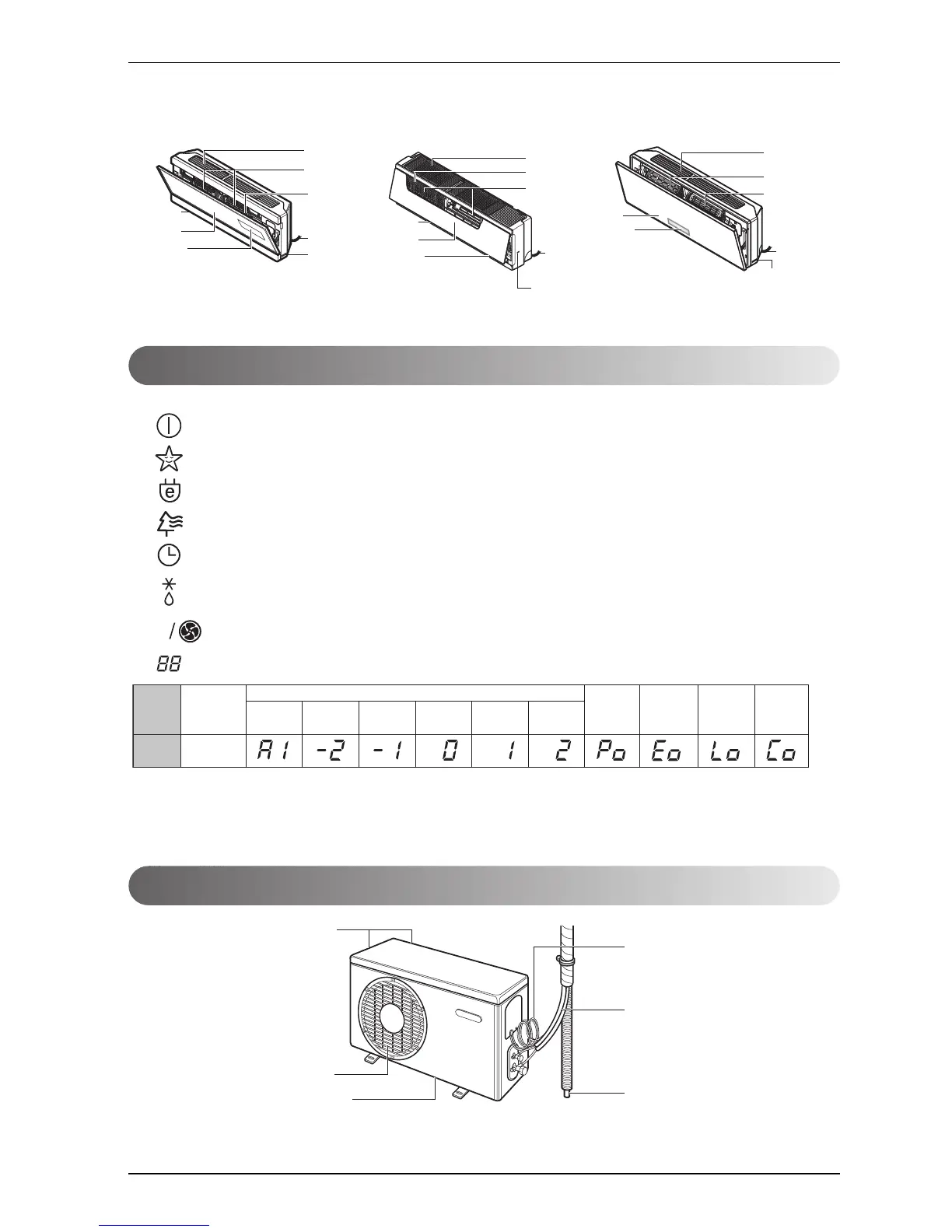

Product Introduction
Art Cool Deluxe(Type 1)
Display panel LED indicators
Signal receiver
Front panel
Air discharge
Power cord
ON/OFF button
Plasma filter
Air inlet
Air filter
Air intake vents
Air outlet vents
Connecting
wires
Refrigerant pipes
Drain hose
Base plate
On/Off
: Lights up during the system operation, error code and auto restart setting.
Sleep mode
Energy-Saving
Cooling Mode
: Lights up during sleep mode auto operation.
: Lights up during Energy-Saving Cooling Mode Operation.
Plasma : The function illustrates its dynamic mode by using a multiple lighting system.
Timer
: Lights up during timer operation.
Defrost mode
Power Display : Indicates the setting temperature and operation mode.
: Lights up during defrost mode or *hot start operation (Heat pump model only)
: Lights up during outdoor unit operation. (Cooling model only)
Outdoor unit
operation
OUT
DOOR
* Hot start operation: Stops the indoor fan in heating operation for minutes to prevent cold air from blowing out
from unit.
* In defrost mode unit stops heating operation for few minutes to remove formation of ice on the heat
exchanger coils to maintain the efficiency.
Operation
mode
Shape of
display
Setting
temperature
Standard Too hot Hot Cold Too cold
Jet
Cool/Heat
Test
operation
Auto
clean
Comfortable
Auto operation mode
Cooling, heating,
Dehumidification
Mode
Art Cool Deluxe(Type 2)
Display panel LCD indicators
Art Cool Deluxe(Type 3)
Display panel LCD indicators
Signal receiver
Front panel
Air discharge
ON/OFF button
Power cord
Plasma filter
Air inlet
Air filter
ON/OFF button
Power cord
Air inlet
Plasma filter
Air filter
Front panel
Signal receiver
Energy-saving
cooling mode
Outdoor Unit
Operation Indication Lamps

LG A09AW1 Specifications

General

Type	Split system
Thermostat range	16 - 30 °C
Remotely operated	Yes
Refrigerating medium	R410A
Cooling capacity (max)	9210 BTU/h
Heating capacity (max)	11940 BTU/h
Cooling capacity in watts (max)	2700 W
Heating capacity in watts (max)	3500 W
Cooling energy efficiency (EER, W/W)	3.25
Indoor unit type	Wall-mountable
Power requirements	AC 230V, 3.8/4.4A
Power consumption (typical)	830 W

Weight and Dimensions

Weight	15000 g
Dimensions (WxDxH)	600 x 146 x 600 mm
