14 INSTALLATION
• For drywall anchor: use 1/4″ (6.5 mm) drill
bit
• For concrete or wall stud: use 1/8″ (3 mm)
drill bit
• If screwing into drywall, use the drywall
anchors.

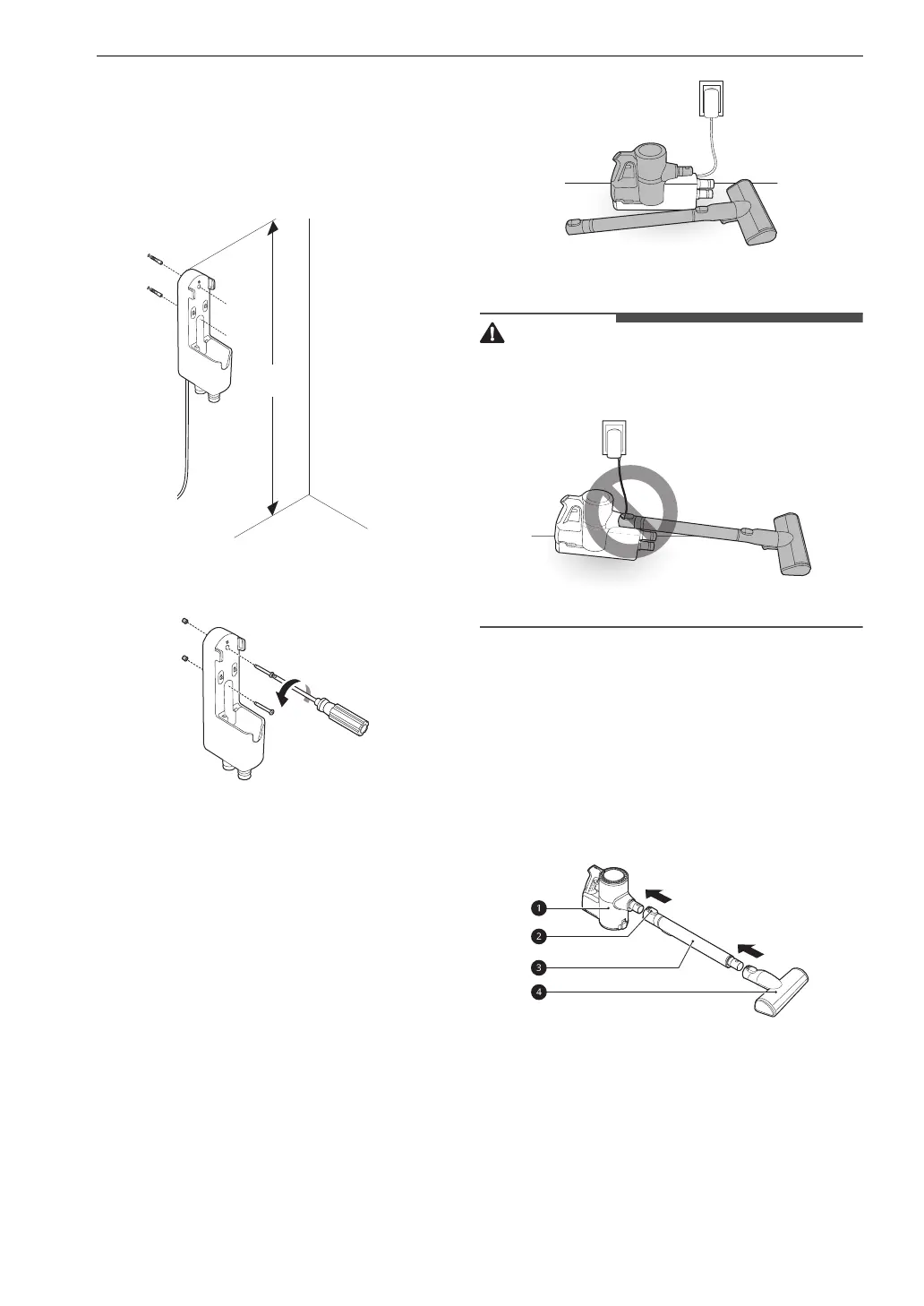

3 Attach the charging station to the wall with
the wall anchoring screws.
4 Plug the power cord into the power outlet.
Compact Installation
For safety and convenience, install the charging
station using the self-standing or wall-mounted
installation methods. If you choose not to install
the charging station, place it on a level floor for
charging or storage.
1 Connect the power adapter to the port on the
back of the charging station.
2 Place the charging station on a hard and level
floor.
3 Separate the extension pipe and nozzle from
the product body before charging or storing
the appliance.
4 Plug the power cord into the power outlet.
CAUTION
• Leaving the appliance on a level floor for a long
time with the extension pipe and nozzle
attached may damage the appliance.
Assembling the Appliance
Follow these steps to safely assemble the
appliance.
1 Firmly attach the extension pipe c, nozzle d,
or tool onto the product body a.
• To detach the extension pipe, press the
extension pipe release button b.
2 Put the product body on the charging station.
•See Charging the Battery for instructions
on installing and charging the battery.
1 m
(3.25 pi)
