DIMENSIONS

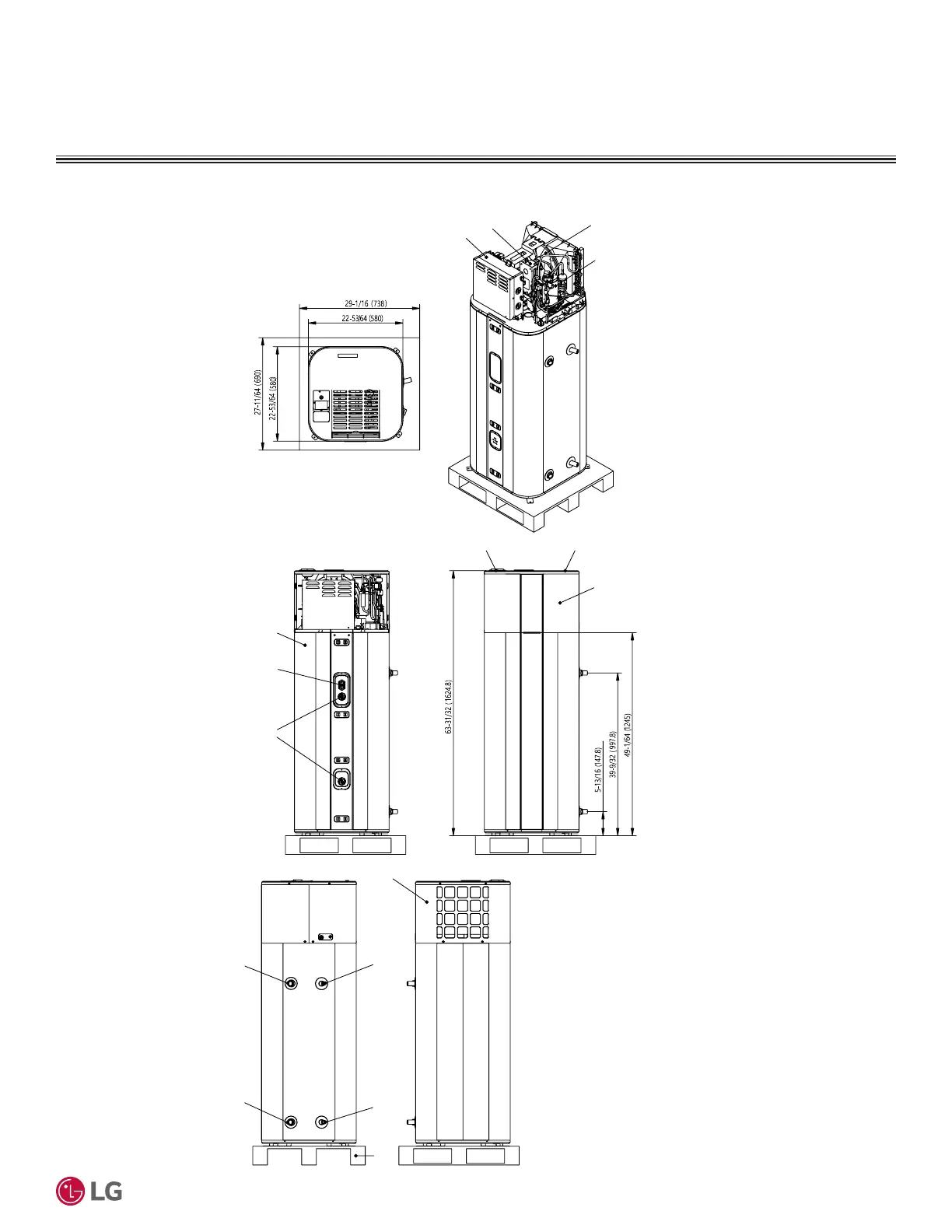

Figure 3: APHWC501D Heat Pump Water Heater with Demand Response Ready Dimensions.
Unit: Inch (mm)
Water Tank
Front Panel
Back Panel
Top Cover
Temperature and
Pressure
Relief Valve,
210°F,
3/4 NPT
Drain Valve,
3/4 NPT
Water Outlet
Pipe, 3/4 NPT
Water Inlet
Pipe, 3/4 NPT
Wood
Pallet
Junction Cover
(Power Input)
Control Box Case
Compressor
Motor
Fan Propeller
Emergency
Cut Off,
170.6°F
Heaters,
5,000W,
240V
1. Unit must be installed
in compliance with the
installation manual.
2. Unit must be grounded
in accordance with the
local or state regulations
and applicable national codes.
3. All field-supplied electrical
components and materials
must
comply with the local,
state, and national codes.
4. Electrical characteristics must
be considered for electrical work
and design. The capacity of the
power wiring and circuit breaker
for the unit must follow local, state,
national, and manufacturer
requirements.
Notes:
