Heat Pump Water Heater with Demand Response Ready and Water Leak Detection Engineering Manual
DIMENSIONS

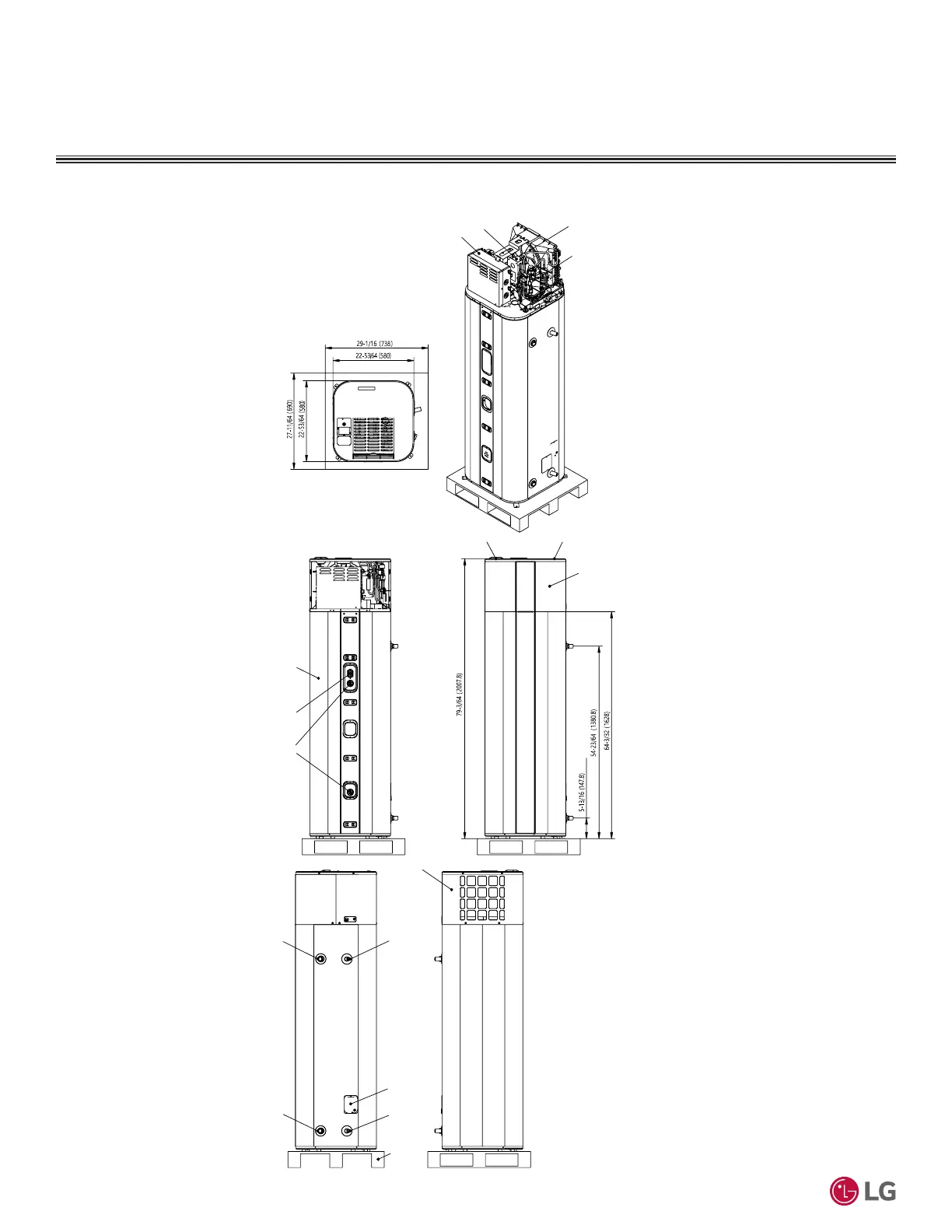

Figure 6: APHWC801L Heat Pump Water Heater with Demand Response Ready and Water Leak Detection Dimensions.
Unit: Inch (mm)
Control Box Case
Compressor
Motor
Fan Propeller
Water Tank
Emergency
Cut Off,
170.6°F
Heaters,
5,000W,
240V
Front Panel
Top Cover
Junction Cover
(Power Input)
Temperature and
Pressure
Relief Valve,
210°F,
3/4 NPT
Drain Valve,
3/4 NPT
Water Outlet
Pipe, 3/4 NPT
Water Inlet
Pipe, 3/4 NPT
Wood
Pallet
Junction Cover
(Shut-Off
Valve Input)
Back Panel
1. Unit must be installed
in compliance with the
installation manual.
2. Unit must be grounded
in accordance with the
local or state regulations
and applicable national codes.
3. All field-supplied electrical
components and materials
must
comply with the local,
state, and national codes.
4. Electrical characteristics must
be considered for electrical work
and design. The capacity of the
power wiring and circuit breaker
for the unit must follow local, state,
national, and manufacturer
requirements.
Notes:
