Multi V Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
GENERAL DATA
'LPHQVLRQV±6&5&KDVVLV
Right rear
piping
Left rear
piping
Installation Plate
Measuring Tape
Measuring Tape
Hanger
Place a level on raised tab

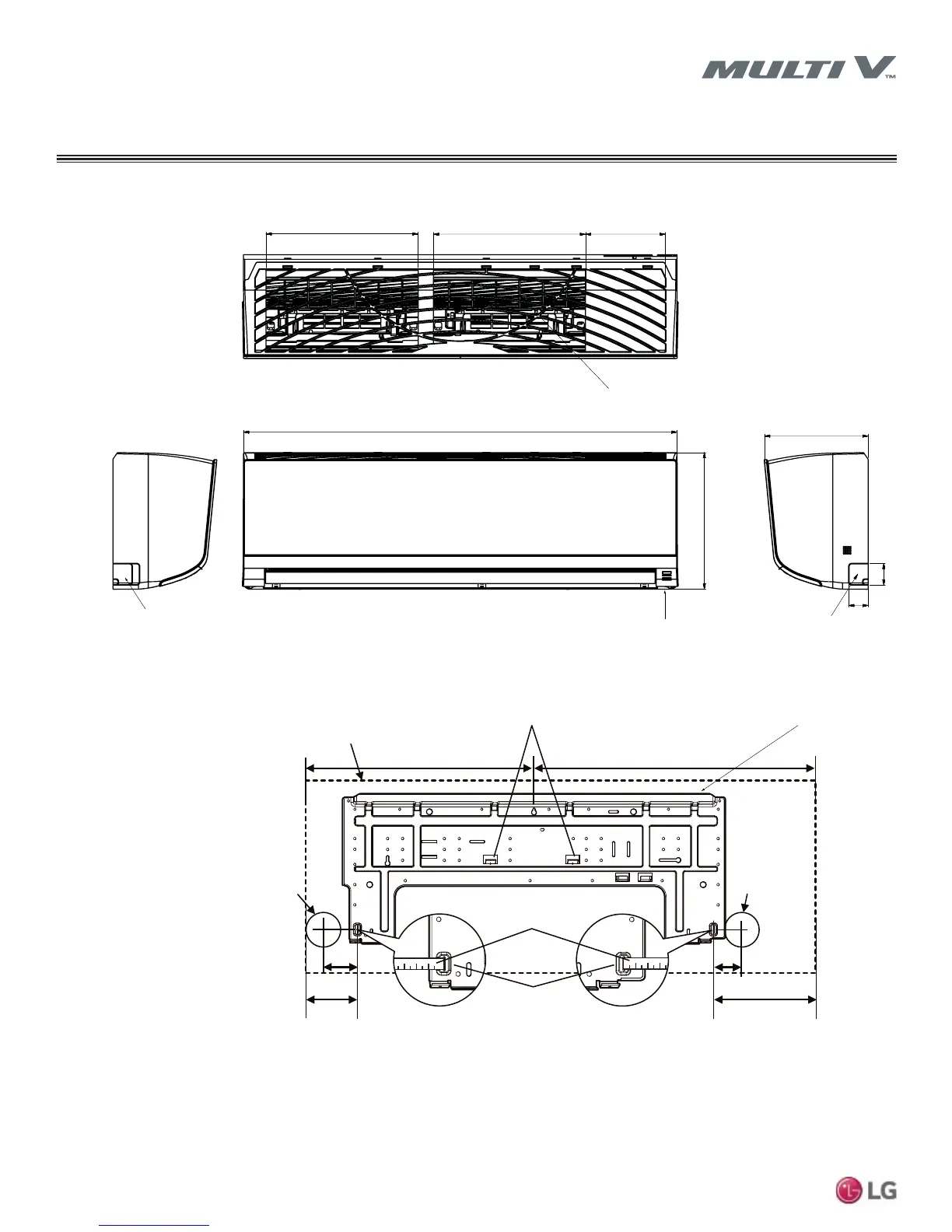

Unit Outline
14-1/4 14-1/4 7-1/2
Air Inlet Grille
40-9/16
Front Panel
12-13/16
2-13/16
2-13/16
18-1/8 22-7/16
2-3/4
4-3/16
2-1/4
8-3/16
9-11/16
Access
Hole
2-1/16
1-13/16
Display and Signal Receiver
Unit: inches
Note: All measurements
have a tolerance of 1/4 in.
Access
Hole
To Next Page
