GENERAL DATA

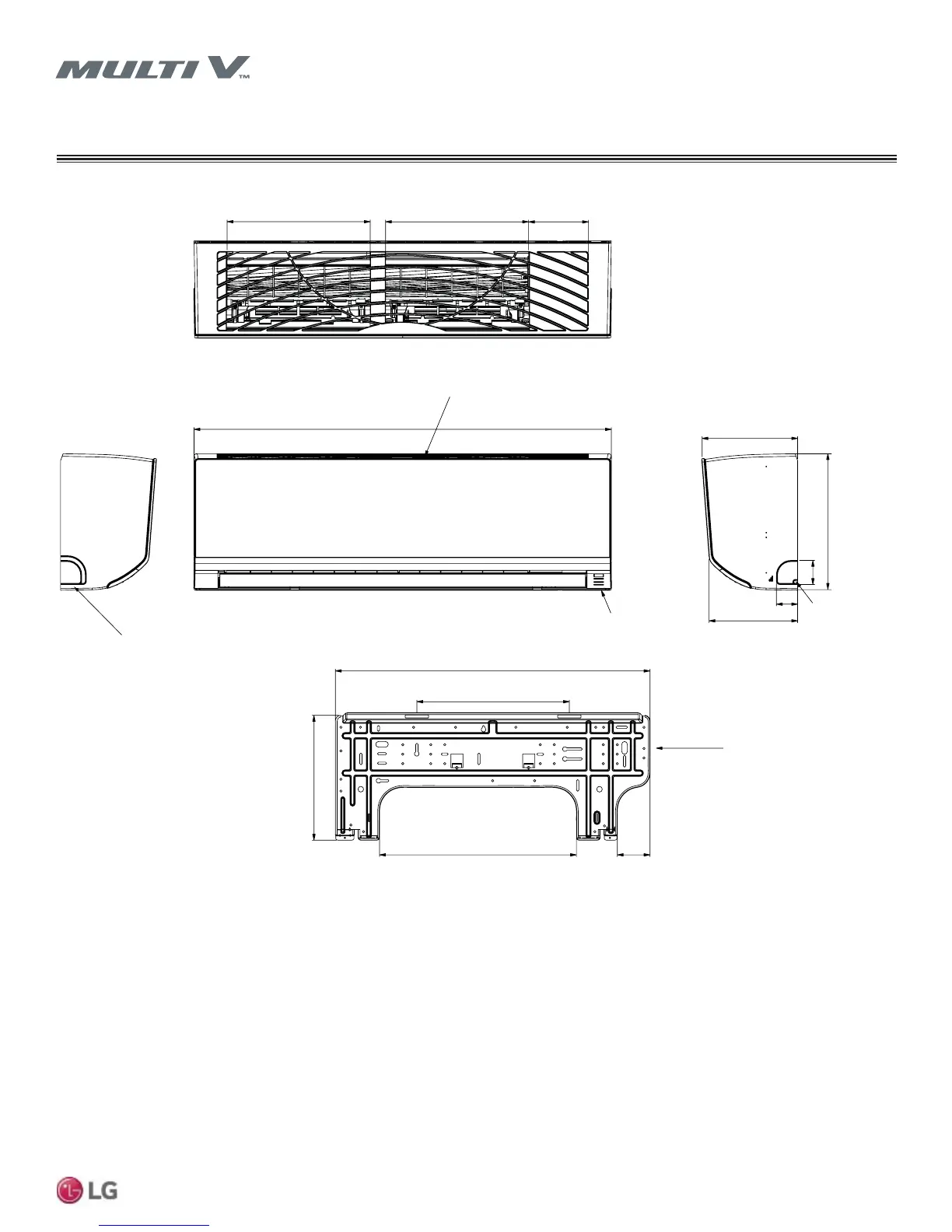

'LPHQVLRQV±6%5&KDVVLV
12-1/8 12-1/8 5-1/16
Air Inlet Grille
Front Panel
35-1/4
Display and Signal Receiver
26-5/8
12-7/8
10-7/16
16-5/8
2-13/16
Installation Plate
8-1/8
7-1/2
1-13/16
2-1/16
11-7/16
Access
Hole
Unit: inches
Note: All measurements
have a tolerance of 1/4 in.
Access
Hole
