ELECTRICAL WIRING
51
ENGLISH

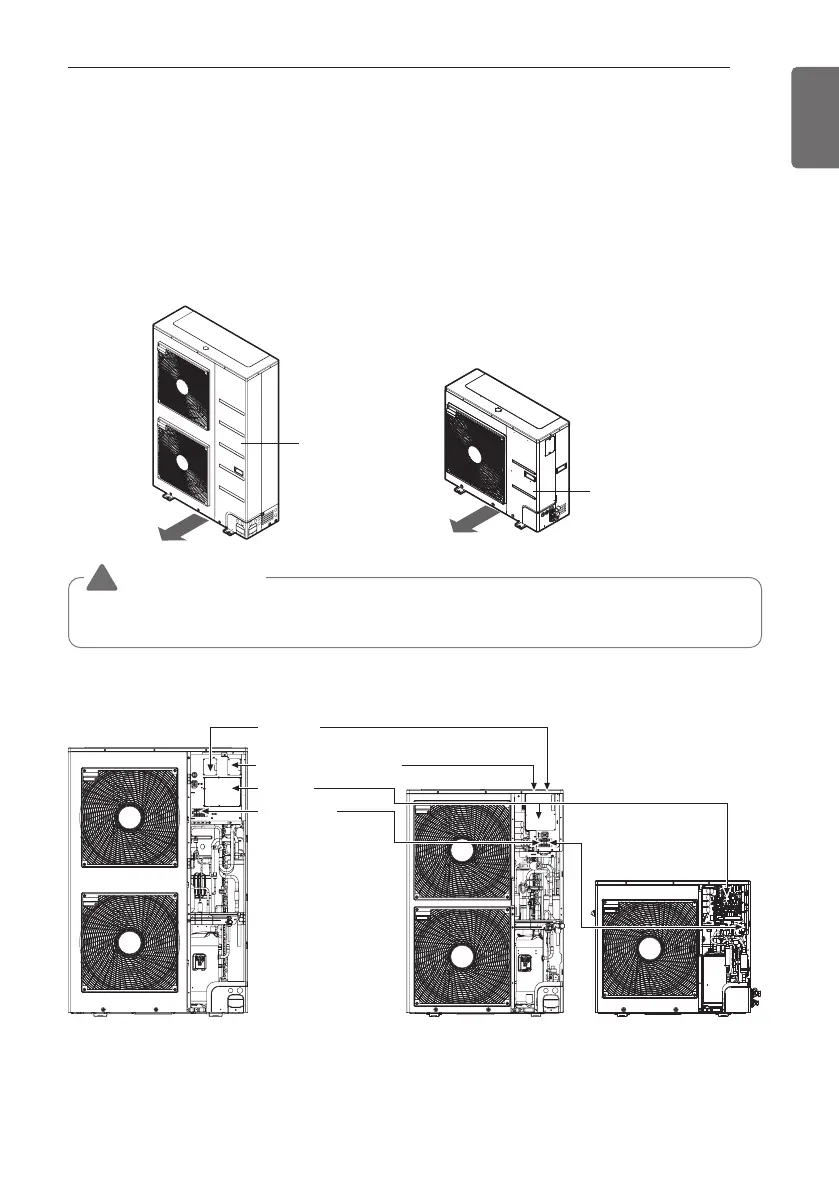

Control box and connecting position of wiring
- Remove all of the screws at side panel and remove the panel by pulling it forward.
- Connect communication cables between outdoor unit and indoor units through the terminal
block.
- When the central control system is connected to the outdoor unit, a dedicated PCB must be
connected between them.
- When connecting communication cable between outdoor unit and indoor units with shielded
cable, connect the shield ground to the earth screw.
Side panel
Side panel
WARNING
The temperature sensor for outdoor air should not be exposed to direct sunlight.
- Provide an appropriate cover to intercept direct sunlight.
!
※Pictures may differ depending on the model.
U80A U60A U36A
PI485 PCB
Main PCB
Terminal block
(Take care of the phase
sequence of 3-phase
4-wire power system)
Indoor communication PCB
(Inside the control box)
(Inside the control box)
To Next Page
