ELECTRICAL WIRING

ENGLISH

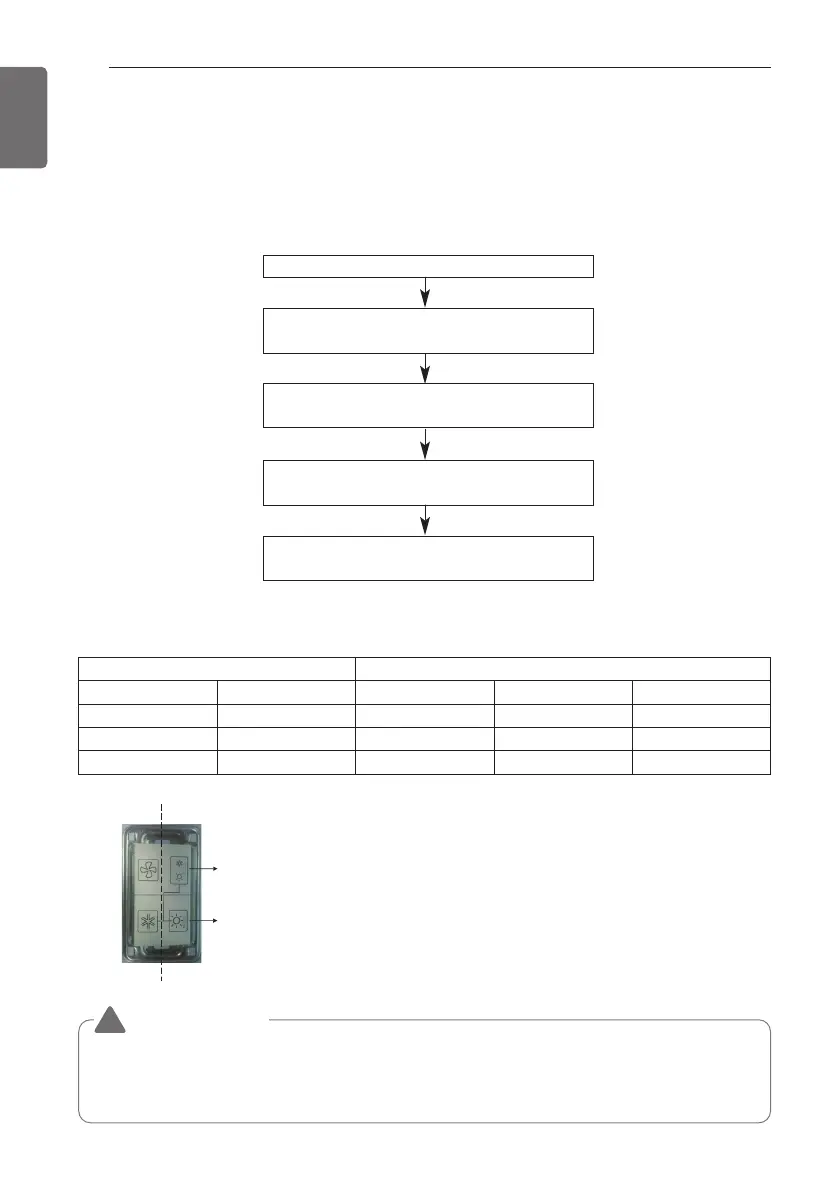

Cool & Heat selector

Mode setting method

Master unit PCB DIP switch on : No.5

Select the mode using ‘▶’, ‘◀’ Button :

“Func” Push the ‘●’ button

Select the Function using ‘▶’, ‘◀’ Button :

“Fn1” Push the ‘●’ button

Select the Option using ‘▶’, ‘◀’ Button :

“oFF”,“op1”,“op2” Push the ‘●’ button

Cool & Heat Selection mode is set

Function setting

Switch control Function

Switch(up) Switch(down) oFF op1(mode) op2(mode)

Right side(on) Left side(off) Not operate Cooling Cooling

Right side(on) Right side(on) Not operate Heating Heating

Left side(off) - Not operate Fan mode Off

• Ask an authorized technician to setting a function.

• If do not use a function, set an off-mode.

• If use a function, first install a Cool & Heat selector.

Switch(up)

Switch(down)

Left side

Right side

CAUTION
