Multi V S Outdoor Unit
Installation of Outdoor Units

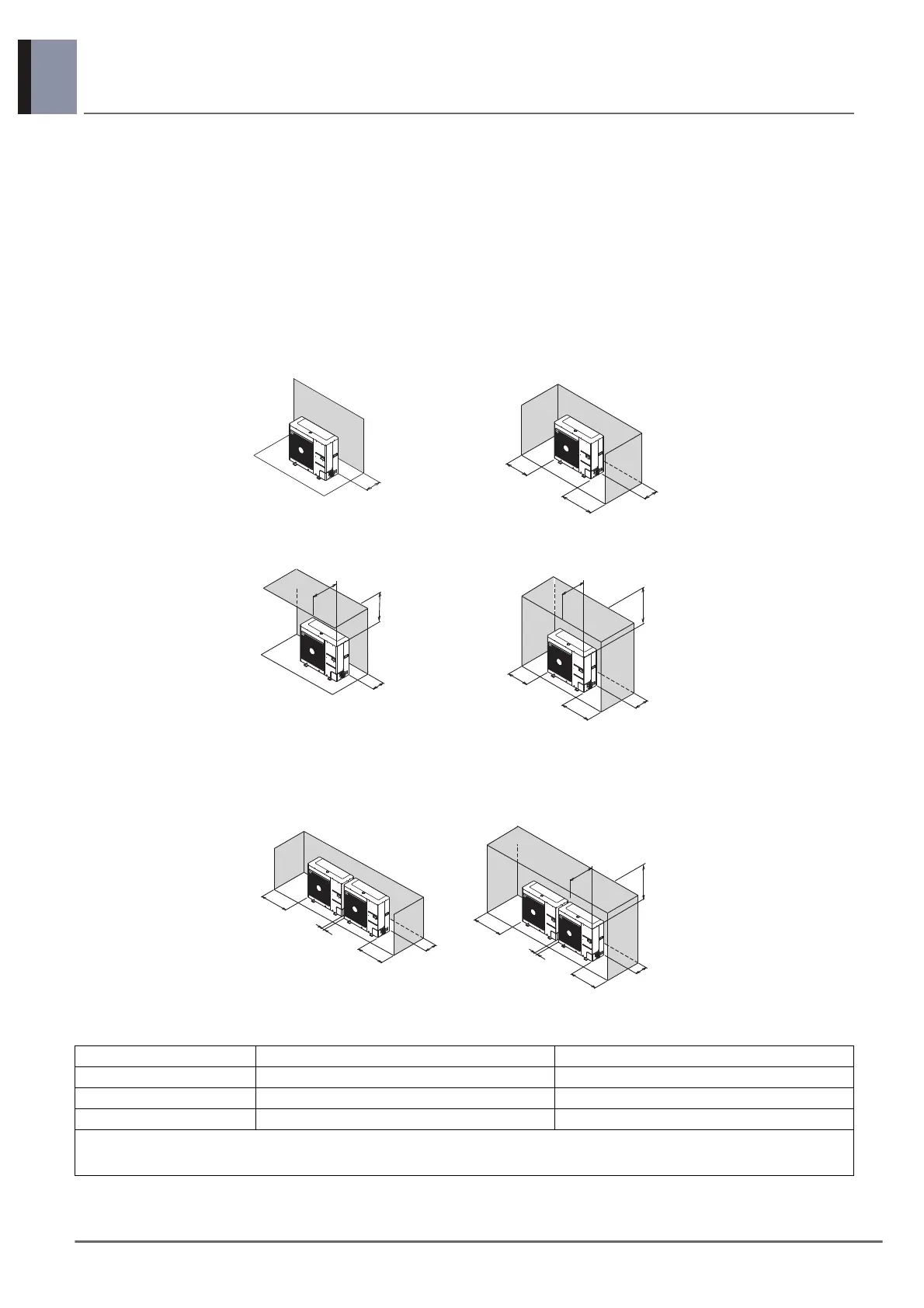

3. Installation Space
• The following values are the least space for installation.
If any service area is needed for service according to field circumstance, obtain enough service space.
• The unit of values is mm.
3.1 Individual Installation
■ In case of obstacles on the suction side
1. Stand alone installation
2. Collective installation
Chassis code U4 / U3 Chassis U7 Chassis
a 100 or more 200 or more
b 100 or more 300 or more
c 300 or more 350 or more
Note
• Depending on the sales region or product type, external appearance and applicability of each “Chassis” might be varied.
[Unit:mm]
a
1,000 or
more
c
5
l
0
500500
es
s
o
or or
essessll
more
100 or
more
150 or
more
150 or
100 or
more
1,000 or
more
b
c
0
s
s
or
lesles
50
500 or500 or
XSWWWG

XWWG


YWWG

\WWG


XSWWWG

XWWG

YWWG

XSWWWG

\WWG\WWG


\WWG

