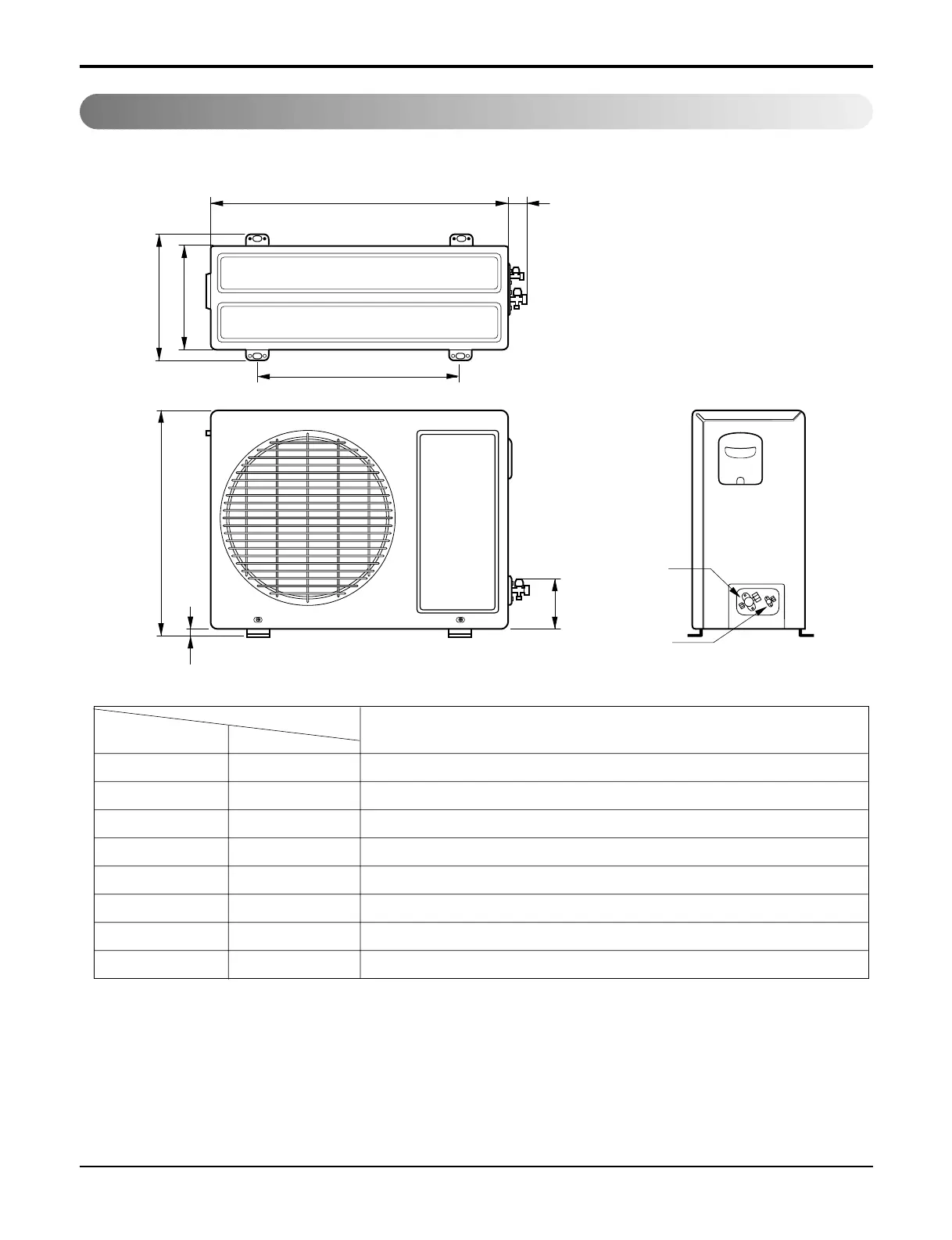

LG AS-C0764DM0 - Outdoor Unit Dimensions; UA3 Chassis Dimensions

12 Room Air Conditioner
W
L2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
MODEL
DIM unit
W mm 717
H mm 498
D mm 229
L1 mm 270
L2 mm 56
L3 mm 464
L4 mm 17
L5 mm 130
Dimensions
Outdoor Unit
7k, 9k, 12k Series
UA3 Chassis
