LG AS-C0764DM0 - Outdoor Unit Dimensions; UE(1) Chassis Dimensions

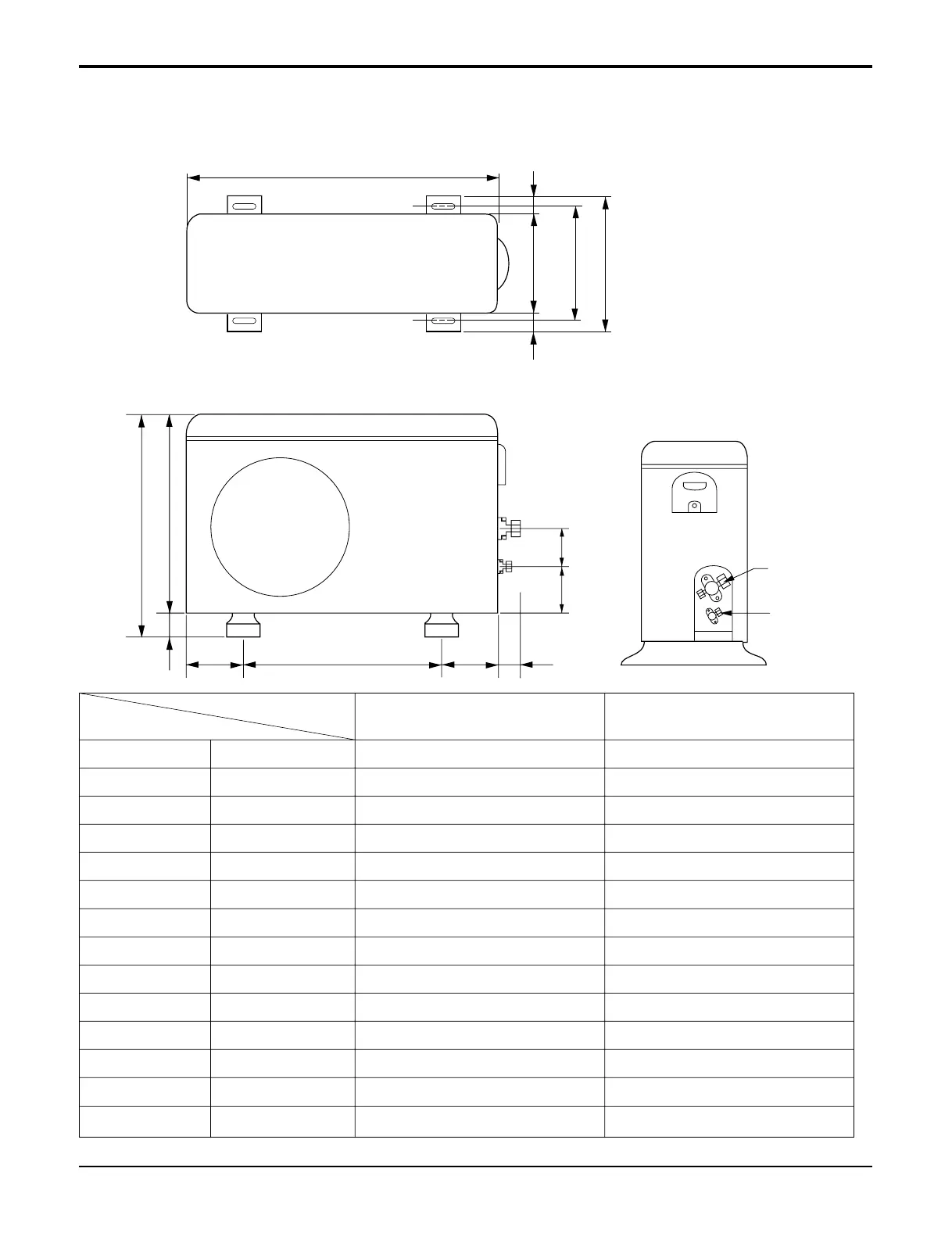

Dimensions
Service Manual 13
W
L7 L6 L8 L9
D
L1
L2
L3
L10L11
L4L5
H
Gas side
Liquid side
MODEL
DIM
W mm 870 870
H mm 655 800
D mm 320 320
L1 mm 370 370
L2 mm 340 340
L3 mm 25 25
L4 mm 630 775
L5 mm 25 25
L6 mm 546 546
L7 mm 162 162
L8 mm 162 162
L9 mm 54 54
L10 mm 74.5 79
L11 mm 79 76.4
AS-H2465DM0 AS-H2465DM1
UE(1) Chassis
