LG AS-C0764DM0 - Outdoor Unit Dimensions; UD Chassis Dimensions

14 Room Air Conditioner

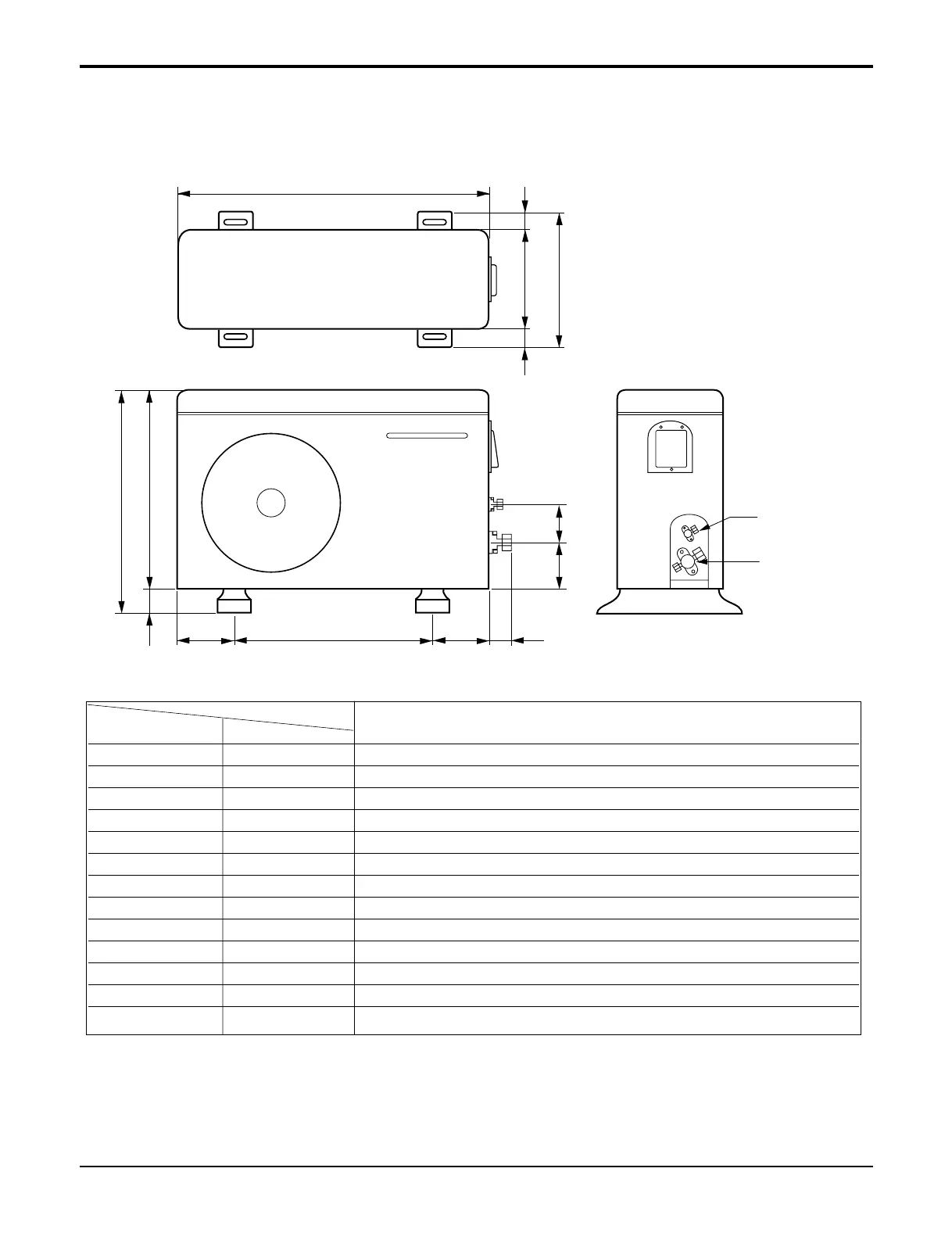

Dimensions
W
D
L1
L2
H
L3
L4
L5L6 L7 L8
L9
L10
Liquid side
2-way valve
Gas side
3-way valve
MODEL
LS-C1865DM0, LS-C1865DB0
DIM unit
W mm 801
H mm 555
D mm 262
L1 mm 339
L2 mm 37
L3 mm 543.6
L4 mm 11.4
L5 mm 591
L6 mm 105
L7 mm 105
L8 mm 72.5
L9 mm 86.4
L10 mm 77
UD Chassis
