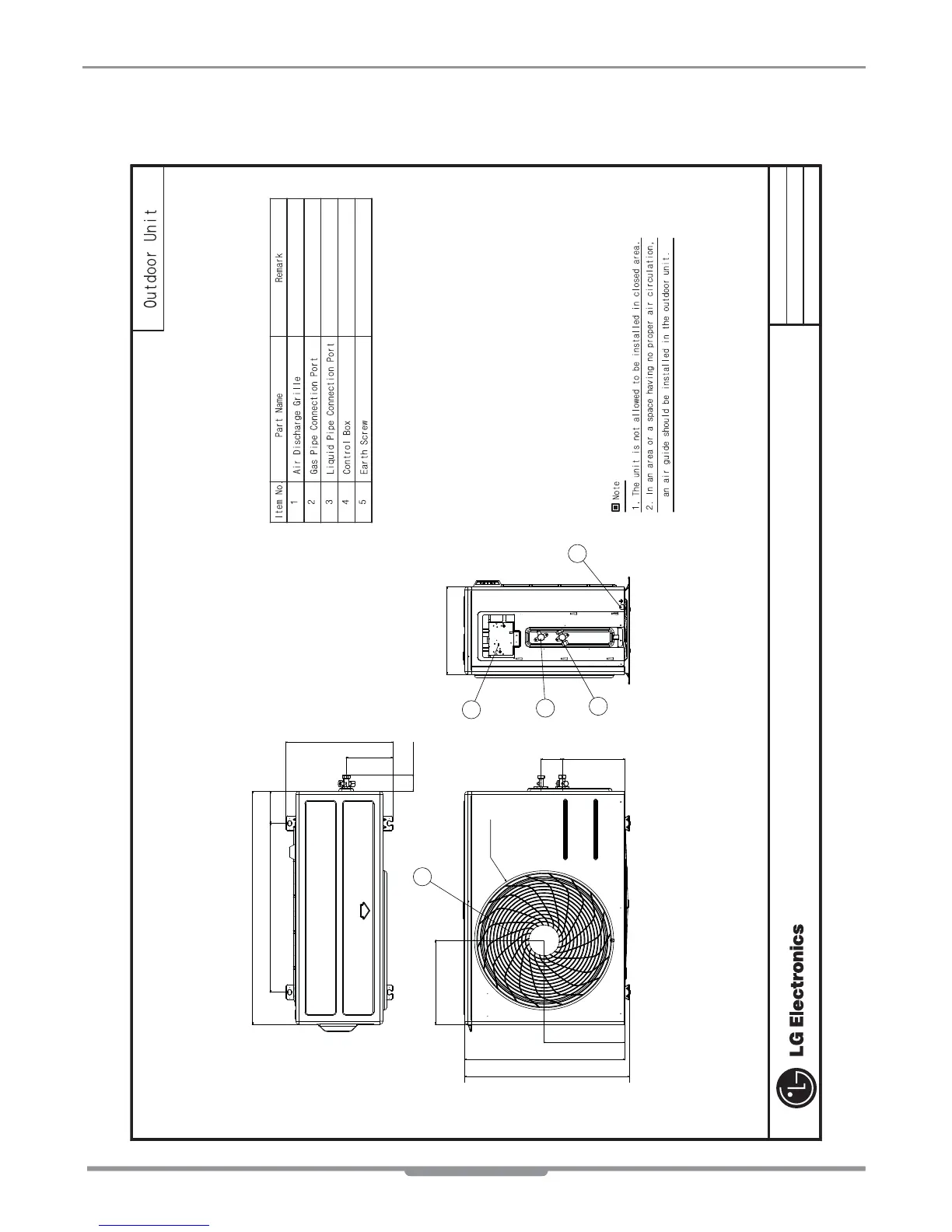

Dimensional drawings
6RMI0-02A
20
Inverter Single
Inverter Single
4.2 Outdoor Units
CHASSIS CODE : UL2
770(30.3)
558(22.0)
106(4.2)
353(13.9)
154(6.1)
54(2.1)
277(10.9)
1
530(20.9)
545(21.5)
267(10.5)
70(2.8)
207(8.1)
4
3
2
5
288(1
1.3)
Ø464(18.3)
[Unit: mm (inch)]
20
22
Table of Contents
Table of Contents
2
General Description
5
Models Line up
6
Nomenclature
9
Specifications
10
Dimensional Drawings
15
Wiring Diagrams
26
Refrigerant Cycle Diagram
33
Capacity Tables
38
Heating Capacity
44
Capacity Coefficient Factor
47
Operation Range
50
Air Flow and Temperature Distributions(Reference Data)
52
Sound Levels
54
Sound Level
55
Sound Pressure Level
56
Remote Controller
58
Installation
62
Select the Best Location
63
Drill a Hole in the Wall
64
Fixing Installation Plate
64
Cut the Pipes and the Cable
65
Burrs Removal
65
Putting Nut on
65
Connecting the Piping
66
Good Case
67
Bad Case
67
Installation of Indoor Unit
68
Connecting the Installation Pipe and
69
Connecting the Cables
72
Wiring Diagram
74
Checking the Drainage
76
Drain Piping
76
Forming the Piping
77
Air Purging
78
Air Purging with Vacuum Pump
78
Finishing the Job
79
Test Running
80
Pump down
81
Installation Guide at the Seaside
82
