LG AS-W093BRU1 User Manual

Installation6RMI0-02A
65
Inverter Single
Inverter Single
Inverter SingleInverter Single
Check

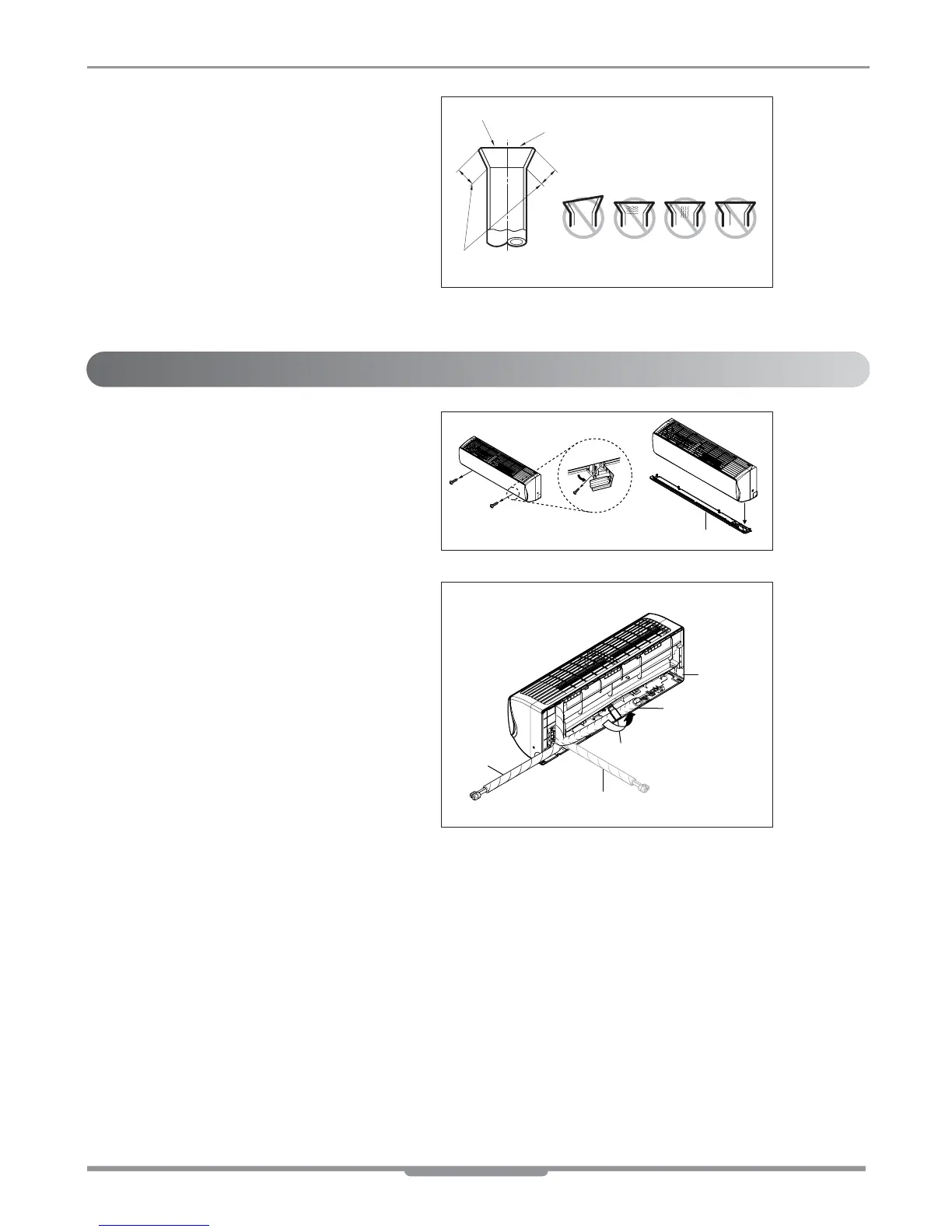

1. Compare the flared work with the figure by.
2. If a flared section is defective, cut it off and
do flaring work again.
Indoor unit
1. Pull the screw cap at the bottom of the indoor unit
2. Remove the chassis cover from the unit by
loosing 2 screws
3. Pull back the tubing holder.
4. Remove pipe port cover and positioning the
tubing
Inclined
Inside is shiny without scratches
Smooth all round
Even length
all round
Surface
damaged
Cracked Uneven
thickness
= Improper flaring =
Connecting the Piping
Chassis cover
Right
Indoor unit back side view
Tubing holder
Backwards
Left
Pipe Port
