Inverter Single

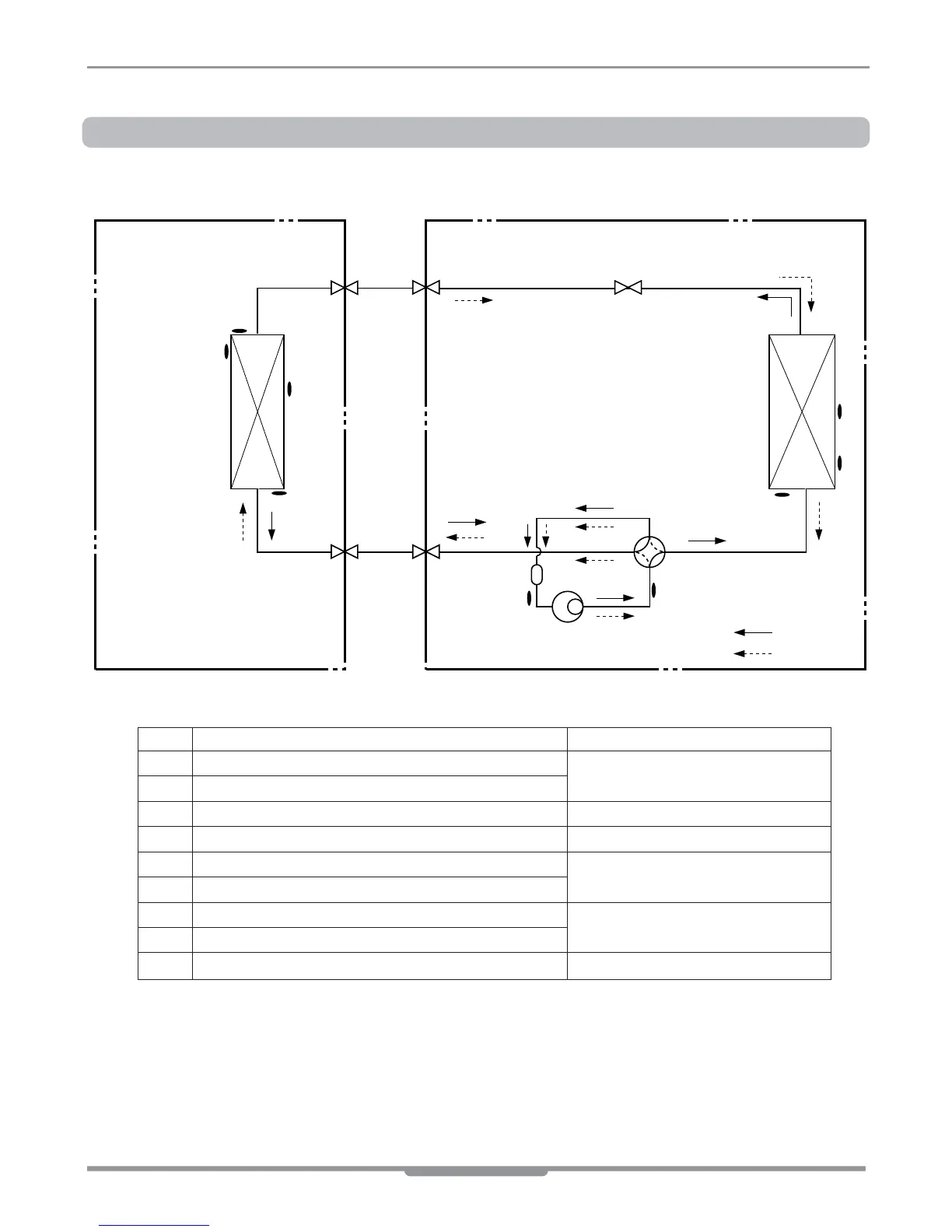

Refrigerant cycle diagram
Inverter Single
Models : AS-W163C2U1(LS161HSV), AS-W183C2U2(LS181HSV), AS-W243DGU1(LS240HSV), AS-W363DGU1(LS360HV)
Indoor Unit Outdoor Unit
Heat
Exchanger
(Evaporator)
Heat
Exchanger
(Condenser)
Compressor
Accumulator
Gas Side
3-Way Valve
2-Way Valve
Liquid Side
Cooling
Heating
Reversing Valve
EEV
Th1
Th2
Th7
Th3
Th8
Th9
Th6
Th4
Th5
LOC. Description PCB Connector
Th1 Thermistor for suction air temperature
CN-TH1(Indoor)
Th2 Thermistor for evaporator inlet temperature
Th3 Thermistor for evaporator outlet temperature CN-TH2(Indoor)
Th4 Thermistor for evaporator middle temperature CN-TH3(Indoor)
Th5 Thermistor for discharge pipe temperature
CN-TH3(OUTDOOR)
Th6 Thermistor for suction pipe temperature
Th7 Thermistor for condensing temperature
CN-TH2(OUTDOOR)
Th8 Thermistor for outdoor air temperature
Th9 Thermistor for condensing middle temperature CN-TH4(OUTDOOR)
EEV : Electronic Expansion Valve
