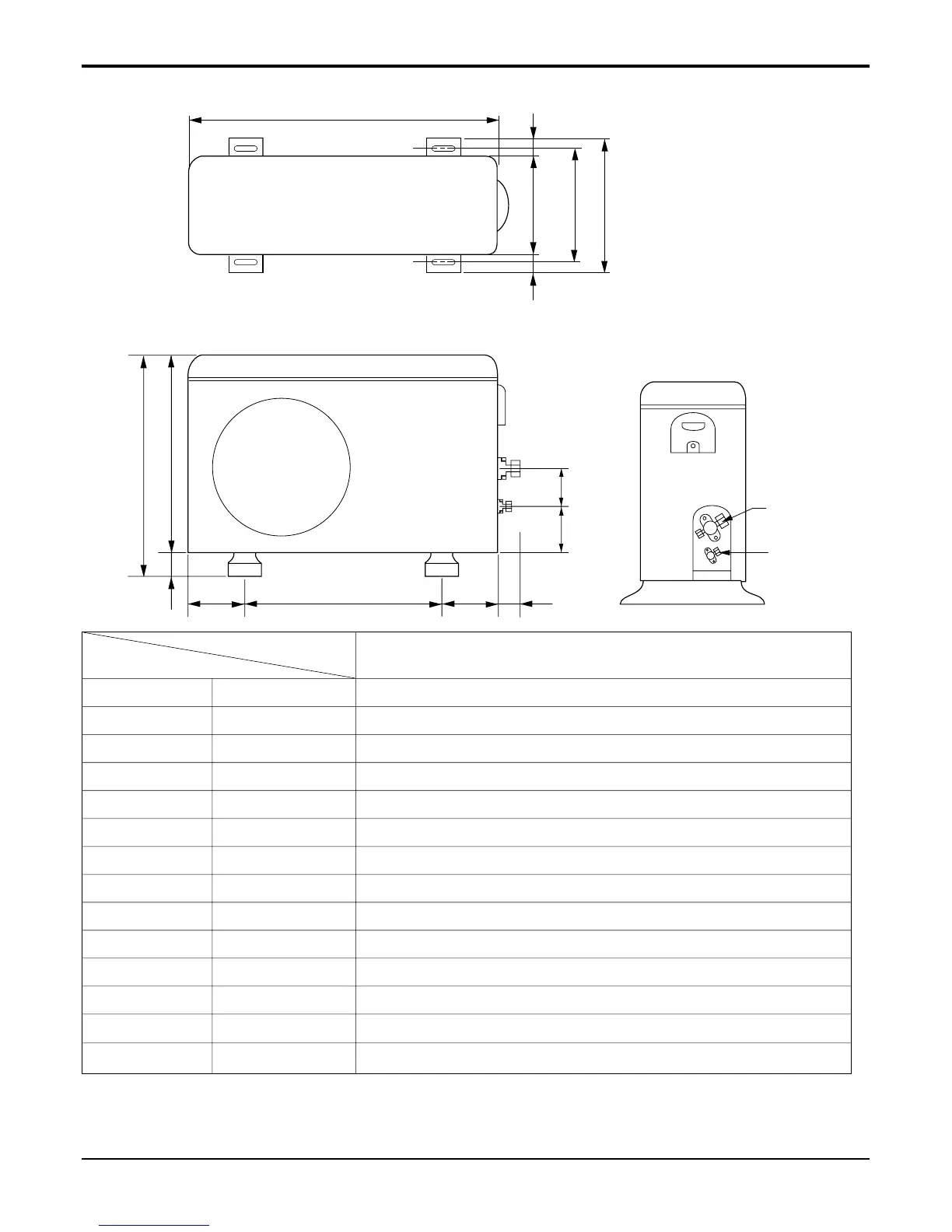

Dimensions
- 13
-
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
W
L7
L6
L8
L9
D
L1
L2
L3
L10
L11
L4
L5
H
Gas side
Liquid side
MODEL
DIM
W
mm
870
H
mm
655
D
mm
320
L1
mm
370
L2
mm
340
L3
mm
25
L4
mm
630
L5
mm
25
L6
mm
546
L7
mm
162
L8
mm
162
L9
mm
54
L10
mm
74.5
L11
mm
79
18k, 24k Btu Series
12
14
Table of Contents
Room Air Conditioner
1
Table of Contents
2
LG Model Name
3
Safety Precautions
5
Dimensions
10
Outdoor Unit
12
Installation
14
Piping Length and Elevation
15
Fixing Installation Plate
16
Drill a Hole in the Wall
16
Burrs Removal
17
Putting Nut on
17
Connecting the Piping
18
Good Case
22
Bad Case
22
Connecting the Cable between Indoor Unit and Outdoor Unit
24
Checking the Drainage and Forming the Pipings
26
Air Purging
27
Test Running
29
Functions
30
Operation
33
Cooling Mode Operation
34
Heating Mode Operation
35
Jet Cool Mode Operation
35
Swing Mode
36
Sleep Timer Operation
37
Forced Operation
38
Test Operation
38
Power Relay Control
39
Protection from Total Current Control
39
Portection from Overheating of Power Module
40
Portection from Overheating of Compressor
40
Auto Cleaning
42
Auto Changeover
42
Remote Control Operations
43
Disassembly
44
Troubleshooting Guide
47
Pumping down
50
Re-Air Purging
51
Gas Charging
54
Cycle Parts
55
Self Diagnosis Function
56
Electronic Parts
58
Troubleshooting for Error Code
60
Schematic Diagram
67
Components Location
70
Product Specifications
76
Exploded View
80
