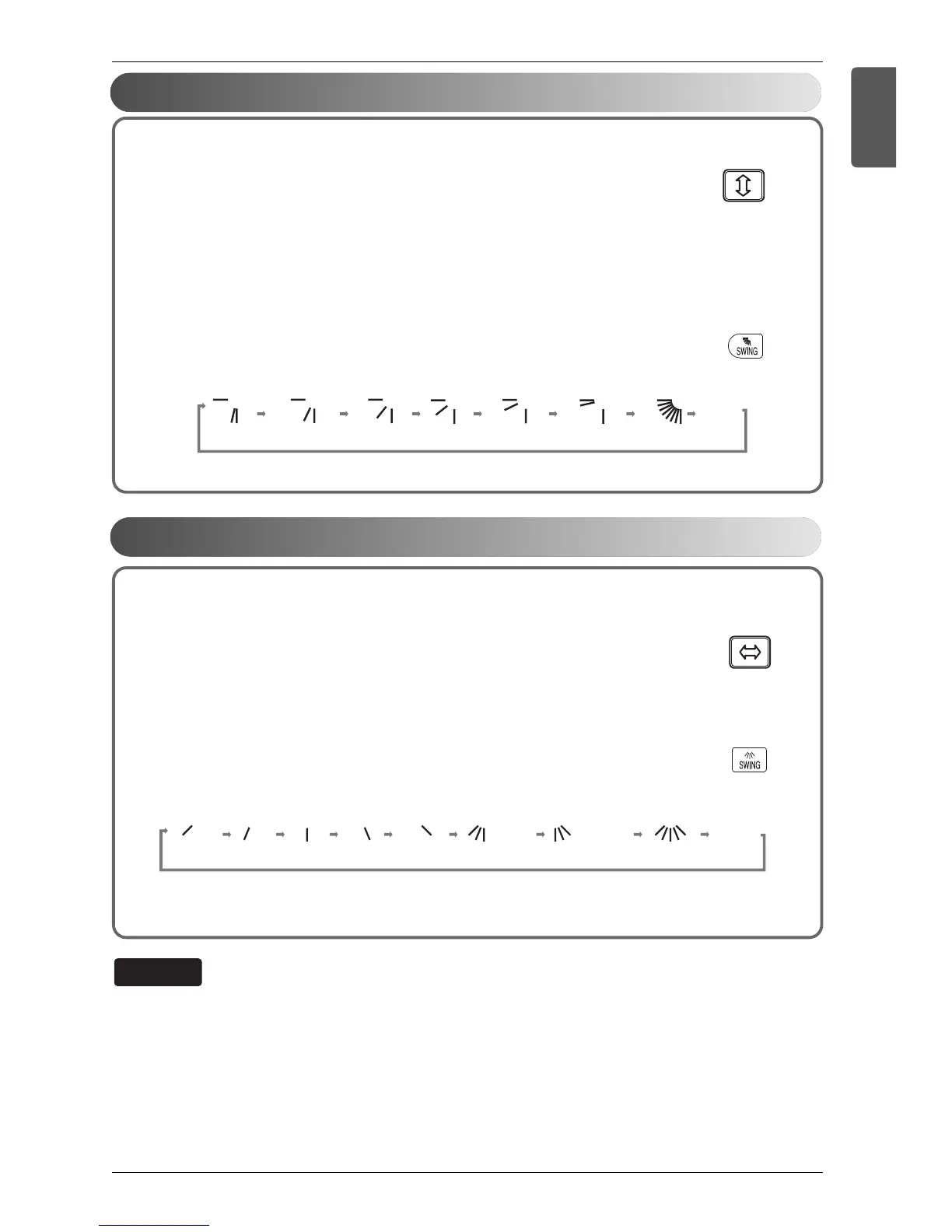

The Horizontal Vane can be adjusted by using the remote controller.
[Ceiling Cassette Type]
1. Press the ON/OFF button to start the unit.
2. Press UP/DOWN AIRFLOW button and the louvers will swing up and down.
Press the UP/DOWN AIRFLOW button again to set the vertical louver at the desired airflow
direction.
[Standard Libero/Artcool Libero Type]
1. Press the ON/OFF BUTTON to start the unit.
2. Press the vertical airflow direction button.
Each time the button is pressed, the air-flow
direction is changed in the direction of the arrow.
※
Press the Vertical Airflow Direction button once more during Auto Swing at the direction of airflow you want.
STOP
1 Step 2 Step 3 Step 4 Step 5 Step 6 Step Auto Swing
The Vertical Louvers can be adjusted by using the remote controller.
[Ceiling Cassette Type]
1. Press the ON/OFF button to start the unit.
2. Press the LEFT/RIGHT AIRFLOW button and the louvers will swing left and right.
Press the Horizontal Airflow Direction Control Button again to set the horizontal louver
at the desired airflow direction.
❈ Up/Down and Left/Right Airflow function isn’t shown on display of remote controller.
[Standard Libero/Artcool Libero Type]
1. Press the ON/OFF BUTTON to start the unit.
2. Press the horizontal airflow direction button. Each time the button is pressed, the
airflow direction is changed in the direction of the arrow.
※
Press the Horizontal Airflow Direction button once more during Full Auto Swing at the direction of airflow you want.
Vertical Louver Control (Left/Right Airflow Direction Control) (Optional)
1 Step 2 Step 3 Step 4 Step 5 Step
Left Auto Swing Right Auto Swing
Full Auto Swing
STOP
•
Manually moving the Horizontal Vane or Vertical Louvers by hand could damage the mechanism.When the
unit is shut off, the the Horizontal Vane and Vertical Louvers will close the air outlet vent of the product.
• Air Conditioner memorizes the last operated angle.
So there is possibility of difference in the angle of Remote Controller and the unit after reoperation.
In that case, angle can be adjusted by pressing the Vane Control Button on the Remote Controller.
• The vertical louvers may automatically move for a specific temperature zone at the cooling mode (Libero
Type)
ex) 1 Step → 2 Step, 5 Step → 4 Step
Horizontal Vane Control (Up/Down Airflow Direction Control)
