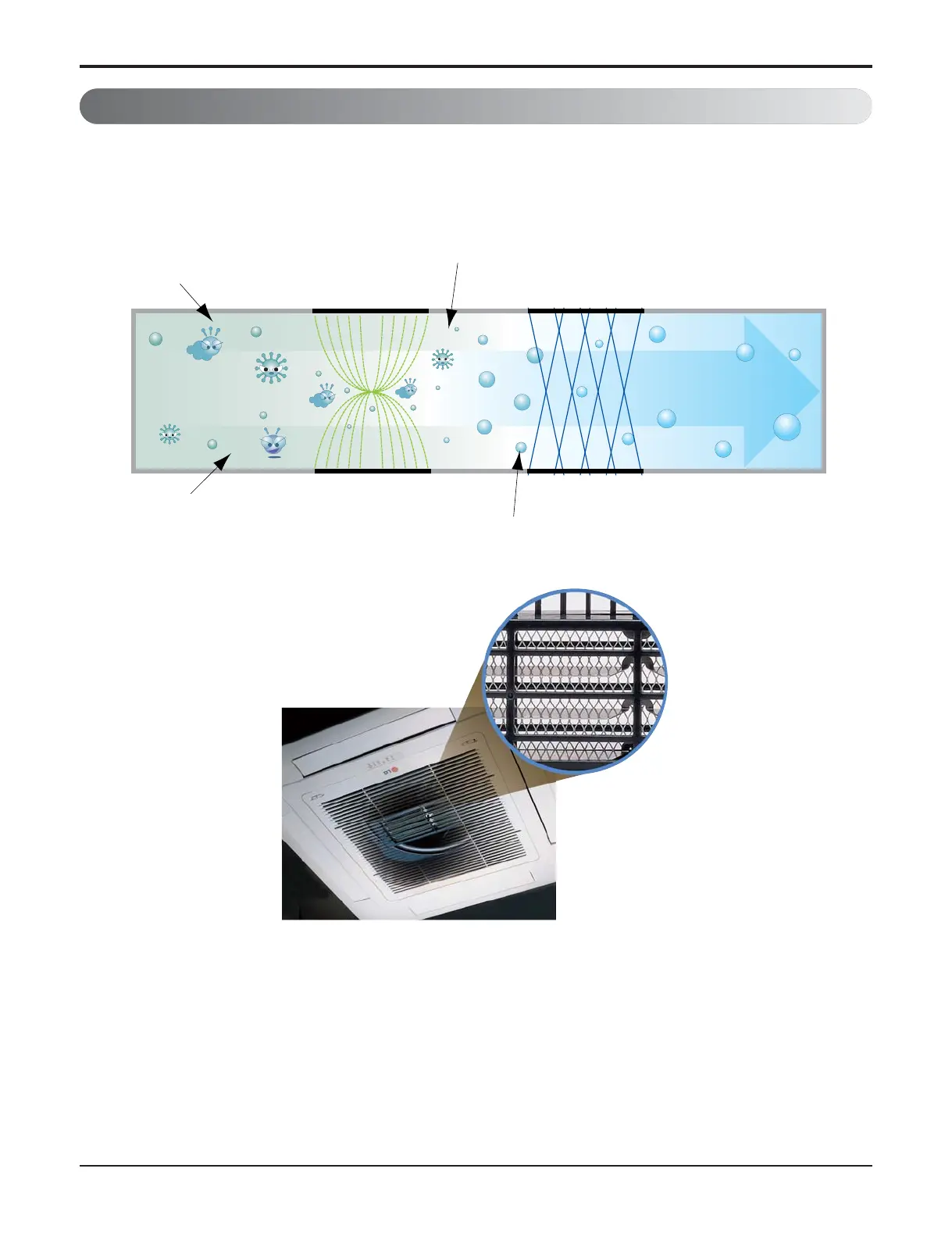

3.1 PLASMA
Air Purifying System
The PLASMA Air Purifying System not only removes microscopic contaminants and dust, but also removes house
mites, pollen, and pet fur to help prevent allergic diseases like asthma. This filter that can be used over and over again
by simply washing with water.
3. Air purifying
Ionizer
Photo-Catalyst Coated Mesh
Dust par
ticles
Odour
Dust electrode discharge
Odour molecule
Generating plasma
+
+
+
+
P
olluted Air
Purified fresh Air
+4.8KV discharge
+
Part 2 Functions & Controls
28
30
Table of Contents
Table of Contents
2
Part 1 General Information
3
Safety Precautions
4
Model Line up
7
Nomenclature
11
Part 2 Functions & Controls
15
1 List of Functions & Accessory
16
2 Air Flow
27
Auto Swing (Left & Right)
27
Auto Swing (up & Down)
27
Chaos Swing (Up/Down)
27
Air Flow Step
28
Chaos Wind (Auto Wind)
28
Jet Cool Mode Operation
28
Swirl Wind Swing
28
3 Air Purifying
29
PLASMA Air Purifying System
29
4 Installation Functions
30
External Static Pressure) Setting
30
High Ceiling Operation
40
5 Reliability
41
Hot Start
41
Self-Diagnosis Function
41
Soft Dry Operation
41
6 Convenience Functions & Controls
42
Cooling & Heating Operations
42
Auto Cleaning Operation
43
Auto Changeover Operation
43
Auto Restart Opeartion
43
Child Lock Function
44
Forced Operation
44
Group Control
45
Sleep Timer Operation
46
Timer(On/Off)
46
Weekly Program
47
Two Thermistor Control
49
7 Special Function & KIT
50
Low Ambient Control
50
Space Control
50
Auto Elevation Grille
50
Part 3 Basic Control
53
Normal Operation
54
Compressor Control
54
EEV( Electronic Expansion Valve) Control
54
Part 4 Trouble Shooting Guide
55
1 Self-Diagnosis Function
56
Error Indicator (Indoor)
56
Error Indicator (Outdoor)
57
2 Pump down
58
3 Evacuation
59
Gas Charging (after Evacuation)
60
Evacuation (All Amount of Refrigerant Leaked)
59
4 Gas Charging
60
5 Cycle Part
61
6 Electronic Parts
62
The Product Does'n T Operate at All
62
The Product Doesn't Operate with the Remote Controller
63
The Compressor/Outdoor Fan Are Don't Operate
64
When Indoor Fan Does Not Operate
65
When the Louver Does Not Operate
66
Troubleshooting Indoor Error
67
Troubleshooting Outdoor Error
73
