Part 4 Trouble Shooting
- 66 -
Copyright © 2019 - 2020 LG Electronics Inc.
All rights reserved. Only training and service purposes.

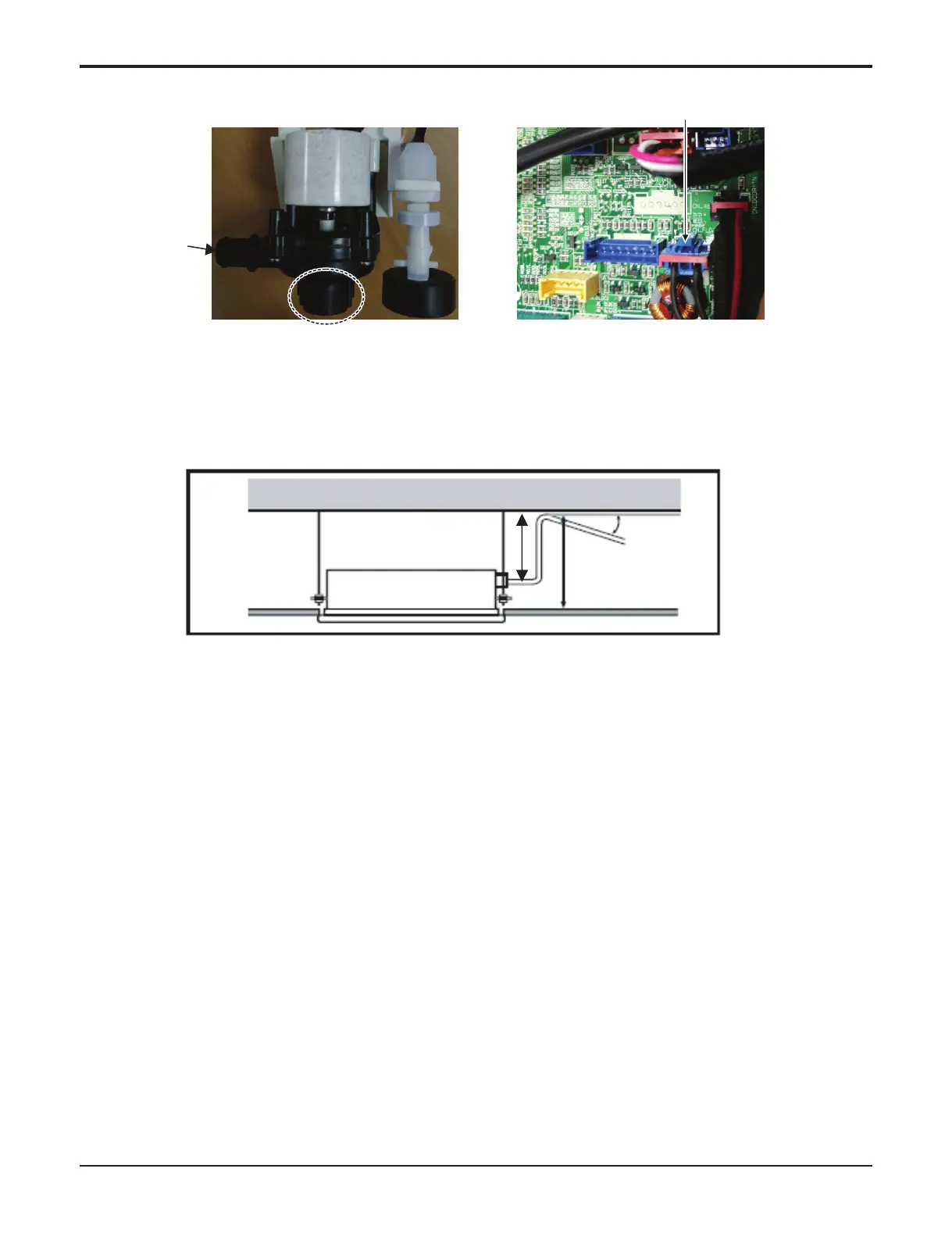

*** Indoor PCB drain pump connector
(Check input of DC 15 V)
(Marked as CN_DCDRAIN)
float
Point to check rotating
Float switch Housing (CN_FLOAT)
[***] Standard of drain pipe head height / slope
MAX 450
MAX 700 mm
1/50~1/100
