Part 4 Trouble Shooting
- 90 -
Copyright © 2019 - 2020 LG Electronics Inc.
All rights reserved. Only training and service purposes.
5 Pin type
[Table]
[Table]
6 Pin type
Purpose
Judging EEV part fault.
Items for checking
1. Measure EEV resistance.

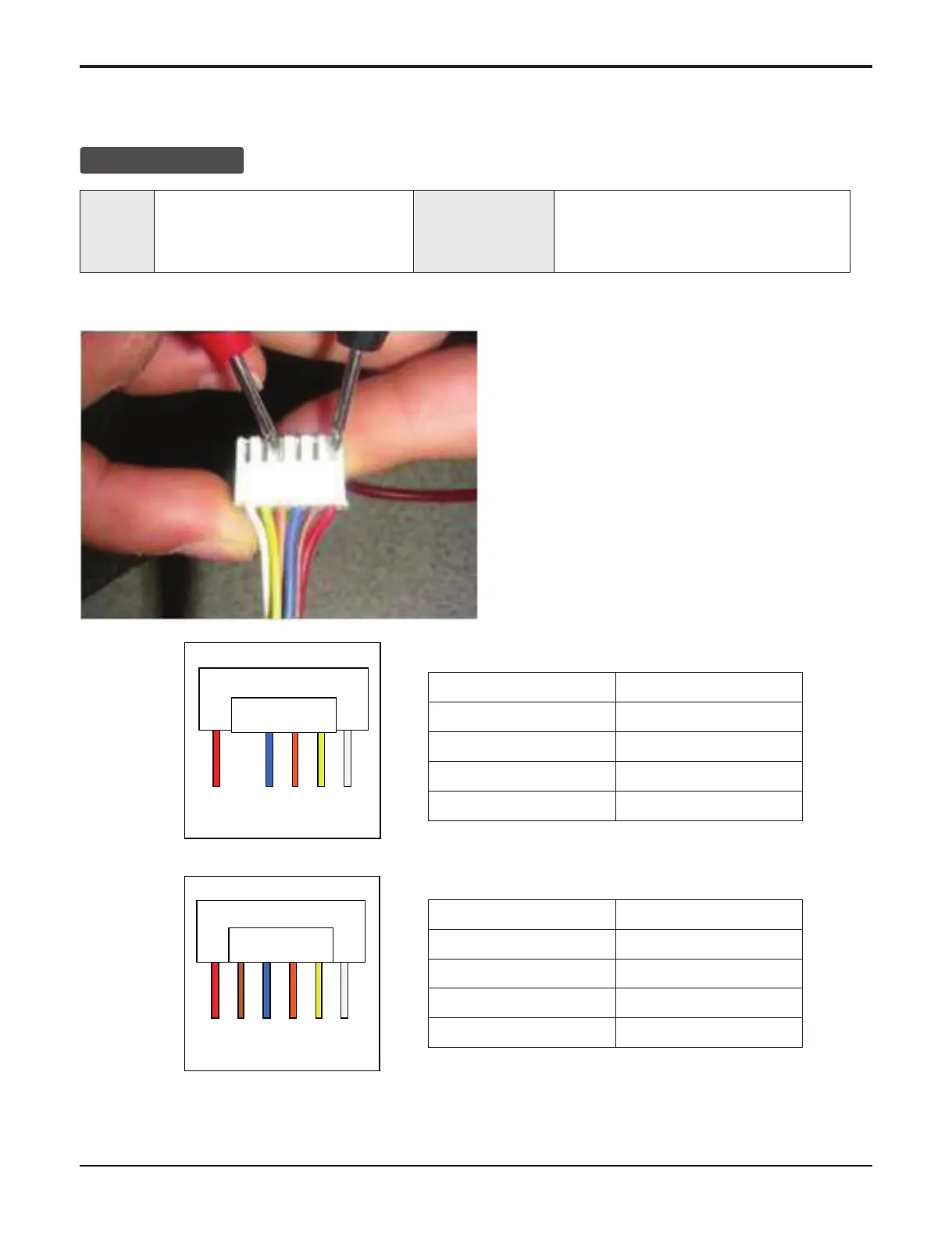

■ Checking EEV resistance
1. Set the tester in Resistance Mode and check
the current.
2. Measure the resistance between eth Pins of
EEV Connector.
3. For the measurement method and normal
standard, refer to the Table.
※ There may be the difference in the resistance
depending upon the EEV Specifications.
RD
1
2
BL
3
OR
4
YL
5
WH
6
[Pin No.]
RD
1
BR
2
BL
3
OR
4
YL
5
WH
6
[Pin No.]
Measurement Pin Normal Standard
1-3 45Ѥ±5Ѥ
1-4 45Ѥ±5Ѥ
1-5 45Ѥ±5Ѥ
1-6 45Ѥ±5Ѥ
Measurement Pin Normal Standard
1-4 45Ѥ±5Ѥ
1-6 45Ѥ±5Ѥ
2-3 45Ѥ±5Ѥ
2-5 45Ѥ±5Ѥ
EEV Check
6.7 Troubleshooting Outdoor Error
CH 21 (DC Peak / Comp IPM Fault)
To Next Page
